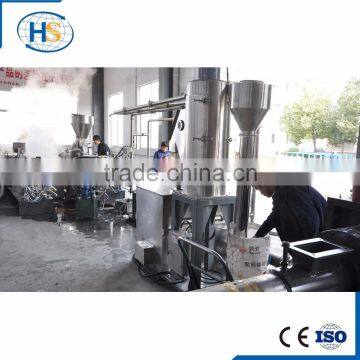

hotmelt adhesive underwater pelletizer production line

Process

Representative materials

Operating capability

Kg/h (reference)

Mixing nature-changing

PE/ PP/ PS+SBS; PA+EPDM; PP+NBR;

EVA +Silicon rubber, etc.

100-180

PE/ PA/ PC/ CPE+ABS(alloy);

PBT+PET; PP+ PE, etc.

80-180

Filling nature-changing

PE/ PP/ EVA, ect.

+ Calcium carbonate/ talcum powder/ titanic powder;

ABS/PC/PS, etc.

+aluminum hydroxide/ magnesium hydroxide/ antimony oxide.

100-200

PP/ PA/ ABS+ ferrous powder/ sulphuric powder/ ceramic powder

120-250

Functional machine pellets

PP/ PA/ ABS/ PBT, etc+ anti-burning agent

and other auxiliary agents: combustion-supporting machine pellets

100-180

PE/ PP/ PS, etc+ starch: de-composing machine pellets

90-150

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

70-100

PE/ EVA/ ABS, etc.+ carbon black; black machine pellets

50-100

Colored machine pellets

PE/ PP/ ABS/ AS/ PA/ EVA/ PET +pigment and auxiliary

80-150

Intensified glass fibres

 and carbon fibres

PP/ PBT/ ABS/ AS/ PA/ PC/ POM/ PPS/ PET, etc.

+ long fires/ small fibres/ carbon fibres/ crystals and so on, etc.

100-180

Various cables

HDPE/ LDPE/ LLDPE/ MDPE/ EVA/ PVC/ PP, etc. insulating cables/ coatings;

PE peroxide silicon alkyl crossing cables; radialization crossing cables.

80-180

Special materials

EVA heat-melting glue, polyurethane, fluorin rubber, fluorine plastics , PP cigarette filtering material and TPR sole material

40-200

Reaction extruding

Polyamide condensate, polyamide melting polymerization, polyamide polyethene-adding, polycarbonate condensate, etc.

80-150

Exhausting and

 volatilization

Polystyrene oxide, high-absorbing resin,

chlorine sulphur piolyethylene

50-100

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate

180-280

Mode

Diameter

L/D

Screw Rotary

Motor Power

Torque

Output

TSE-30B

31 mm

32-48

600 r/min

15 kw

119 N.m

5-40 kg/h

TSE-35A/B

35.6 mm

32-52

600 r/min

15-22 kw

119 N.m

20-60 kg/h

TSE-40B

41 mm

32-52

600 r/min

30 kw

239 N.m

90-150 kg/h

TSE-65B

62.4 mm

32-64

600 r/min

90 kw

716 N.m

200-300 kg/h

TSE-75B/C

71 mm

32-64

600 r/min

132/160 kw

1050/1273 N.m

350-600 kg/h

TSE-75D

71 mm

32-64

600 r/min

200-250 kw

1990 N.m

500-1000 kg/h

TSE-95B

93 mm

32-64

600 r/min

315 kw

2506 N.m

800-1200 kg/h

TSE-135A

133 mm

32-64

500 r/min

750 kw

7162 N.m

1500-2250 kg/h
