Home > Products > Paver making machine > DY-150TB Manual Interlocking Brick Making Machine

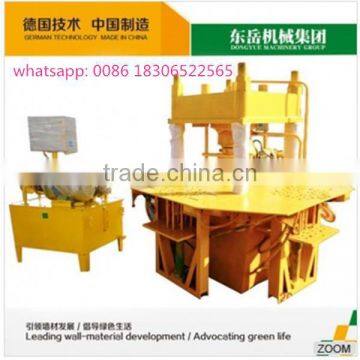

DY-150TB Manual Interlocking Brick Making Machine
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Curbstone Block Machine, paver making machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 1800PCS/HR | Place of Origin | Shandong, China | |
| Brand Name | DONGYUE | Model Number | DY-150TB | |
| Voltage | 380V/220V/ (adjustable) | Power | 11kw | |
| Dimension(L*W*H) | 2200(L)*2300(W)*2000(H)mm | Certification | ISO9001:2008 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DY-150TB hydraulic forming machine
INTRODUCTION OF DY-150TB

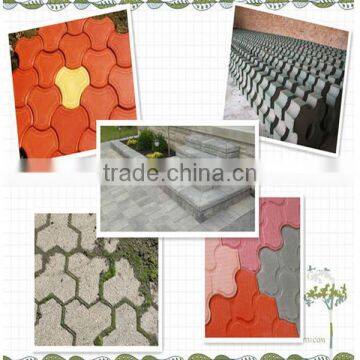

DY150TB manual interlocking brick making machine can make various color pavers,interlocking bricks and kerbstone.The maximum kerbstone length is 500mm.
It makes use of hydraulic pressure,the block is of high strength.Four people operates in four directions,the production capacity is 3000-4000pcs/8hrs.
DY-150TB interlocking brick machine does not need instalaltion, After connecting with power,you can start production.
DY-150TB hydraform interlocking block making machine technical parameter
Max pressure | 150KN |
Total power | 11kw |
production | 1500-2000 blocks/day |
Machine weight | 3200kg |
Machine size | 9300x2200x3650mm |
Maximum specification | 500x500x150mm |
theoretical workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.
| |
DY-150TB hydraulic curbstone block machine specification :
Main specification and technical parameters | |
Overall size | 2200(L)*2300(W)*2000(H)mm |
Hydraulic pressure | 150kn |
Total power | 11KW |
Electricity | 380V/220V/ (adjustable) |
Total weight | 1800 KGS |
DY-150TB hydraulic curbstone block machine Capacity table:
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day | M2/day |
1 | 200x100x60mm | 1 | 200-250 | 1800-2000 | 100-300 |
JD350 mixer
Main specification and technical parameters | |
Overall size | 1350(L)×1460(W)×1800(H)mm |
Shaping cycle | 40-45 seconds |
Pallet size | 850x450x25mm (bamboo) |
850x450x20mm (bamboo) | |
Vibration frequency | 2800 r.pm |
Upper vibrator | 2.2KW |
Nether vibrator | 4.4kw |
Electricity | 380V/220V/ (adjustable) |
Total weight | 1800 KGS |
DY-150T Manual interlocking brick making machine production
2.DY-150TB hydraform interlocking block making machine production capacity
Size(LxWxH) | Pcs/ 8 Hr | Size(LxWxH) | Pcs/ 8 Hr |
Paver:200X100X60 | 1800-2000pcs |
Paver:250x250x60 | 1800-2000pcs |
Paver:200X165X60 | 1800-2000pcs | 3600-4000pcs | |
Paver:225X112.5X60 | 1800-2000pcs | 1800-2000pcs |
DY-150T hydraform interlocking block making machine all parts details

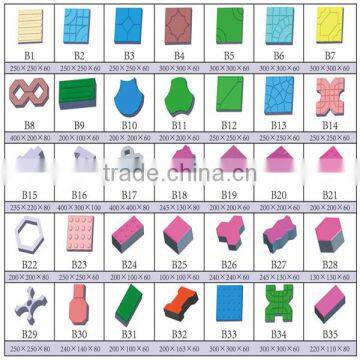

(1)Our products are mainly producing color blocks/bricks, curb stones, interlock blocks, etc.
(2)DY-150TB adopts international brand-name Germany Siemens motors and Japan Mitsubishi PLC, reliable quality, low fault rate and durable. The material of whole frame is national standard steel, with high strength and reliable quality.
(3)The hydraulic oil jack is as same as the one used in large mechanical equipment
