Home > Products > nano-composit panel integrated house > the green , energy saving, sustainable development nano-composit panel integrated house

the green , energy saving, sustainable development nano-composit panel integrated house

FOB Price

USD $90 - $200 / Square Meter

100 Square Meters(Min.Order)

Supply Ability 1000000 Square Meter / Square Meters per Month
Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Shandong, China

Brand Name

Donyue integrated house

Product Description

Specifications

energy saving integrated house
Load-bearing, heat preservation
lightweight , high strength
Durable,anti-fire ,heat insulation

the green , energy saving nano-composit panel integrated house

integrated house Description

Nanometer composite plate is an innovative building material self-developed by Dongyue Machinery Group Co.,Ltd.It can be widely used in urban residential buildings, the surrounding villas, energy-saving renovation of old buildings, industrial plants, high-rise buildings and new rural construction areas.

Nanometer composite plates is one of the fastest building materials in the world. It promotes the development of the housing industry. High efficient sixty five percent energy saving building can be build in a very short time.

With the promotion of nanometer composite plate,the construction industry can quickly step on the green building, energy saving,emission reduction, and sustainable development road. Thus lead the overall macroeconomic towardsthe direction of environmental friendly and harmonious coexistence.

Name	Value
Brand	Donyue
Model	3000x6000mm,3000x3000mm,1500x6000mm
Production Capacity	1000000 square meters per mounth
feature	Anti-earthquake ,Corrosion resistance , Hydrophobic Durable, anti-fire and heat insulation , Load-bearing, heat preservation, lightweight and high strength,environmental protection
technology	cement foam process
material	nanometer cement ,galvanized steel,fiberglass
Place of Origin	China
Year	2010
application	Truss house faceplate, Large house faceplate, Large wallfaceplate
design	customization
product and construction	industrial production ,assembly of construction
Warranty	70 years

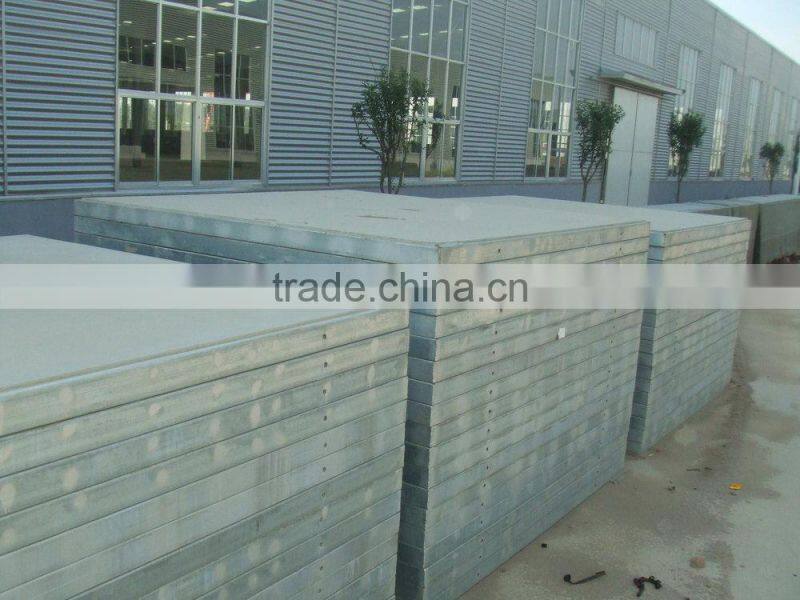

integrated house Details show

integrated house Application

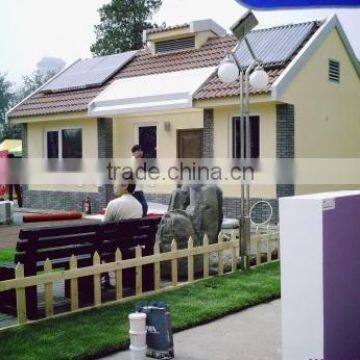

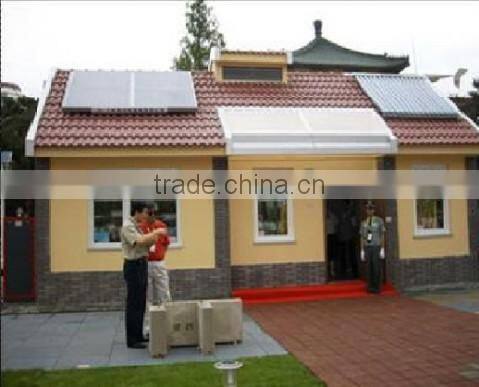

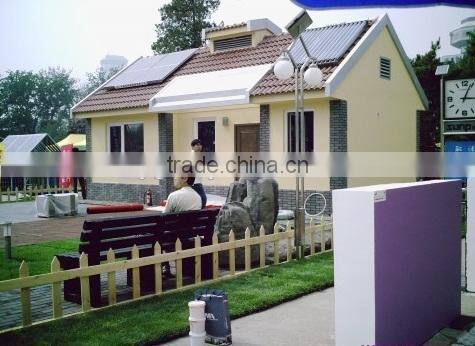

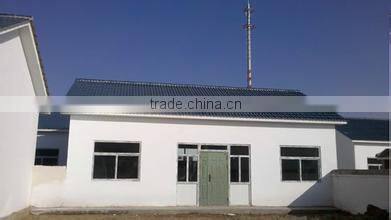

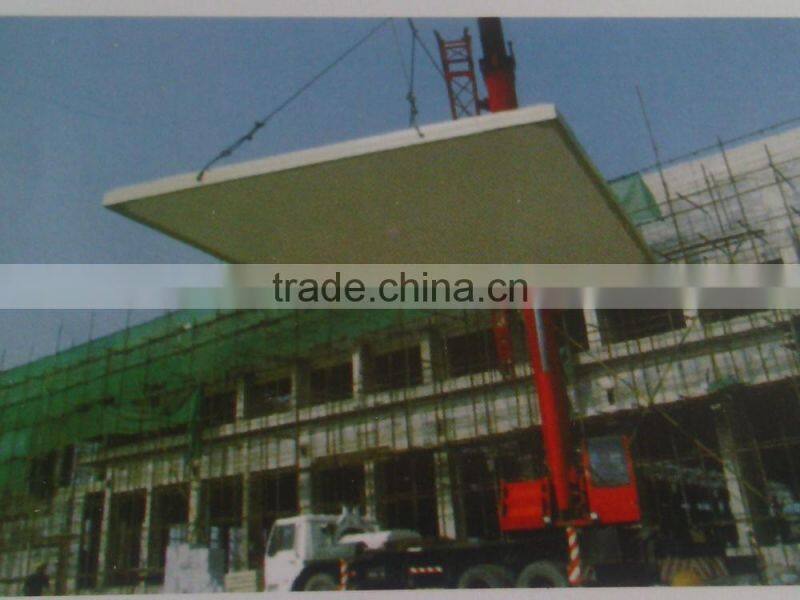

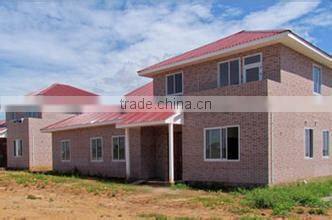

Integrated houses can be widely used in urban residential buildings, the surrounding villas, energy-saving renovation of old buildings, industrial plants, high-rise buildings and new rural construction areas.

integrated house Shipping

seaworthy packing ,especially integrated houses
20-60 days according to the projects

Payment

telegraphic transfer
letter of Credit Card

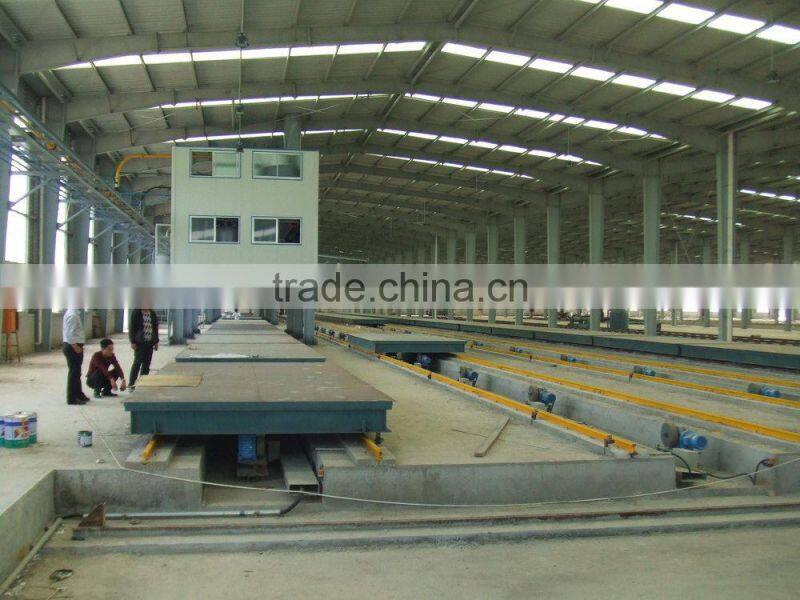

production process

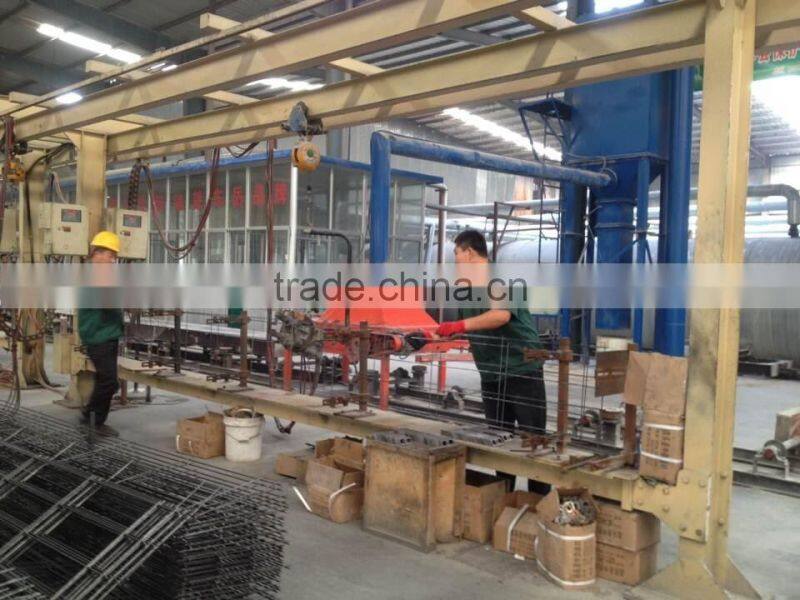

Firstly, bent the galvanized steel sheet to the design standards and cut to the right length.The thickness of the galvanized steel sheet is 2.5 to 3 millimeters.Then select different galvanized steel wire according to the design to make truss.Finally,steel mesh will be put both up and down after the frame and truss is assembled.

The water, electricity and gas pipe can also be set in truss according to the design drawings to meet different requirements.

Put a plastic film on the running template. Then put the underlying fiberglass mesh on it.Let the prepared frame on top.Then pouring the nanometer cement in it. After the pouring cement is flat, move to the foam cement pouring process.When foam process finished and gained a certain strength, spray surface layer of nanometer cement.Then laying a layer of fiberglass mesh. When the surface of the semi-finished product is flat, sent it to the curing room for 24 hours. Now the product can be used.The whole process uses step-curing process and the step by step assembly line. Thus make it reach a high degree of automatic and saving labors.

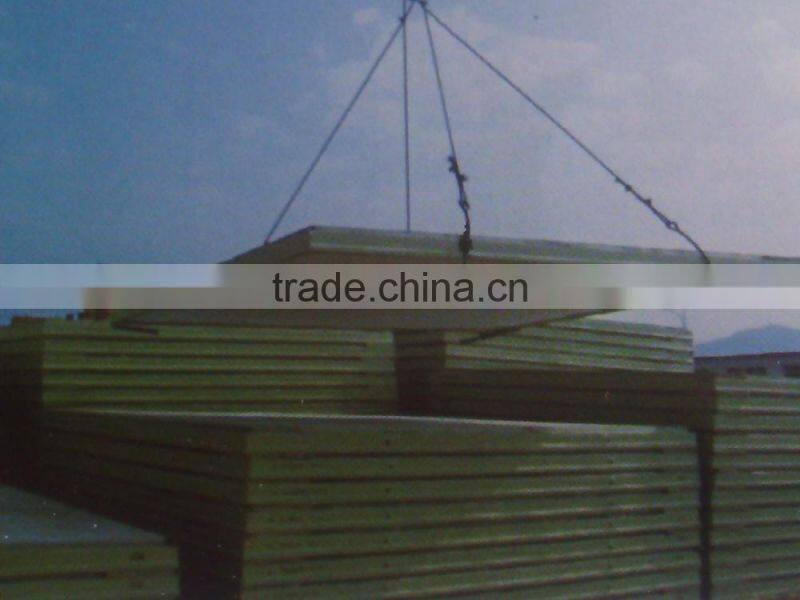

integrated house Packing

seaworthy packing

integrated house Services

About US

Donyue Machinery Group registered asset of 174 million RMB,total asset of 724 million RMB, total area of 400,000 square meters ,and over 1500 staff,the Group is a national large-scale designated wall-material machinery manufacturer,a coalition of researching,producing and marketing,and services.
