Home > Products > Loader,Forklift,Crane > Mobile Crushing Machine, Jaw Crusher , Cone Crusher
Mobile Crushing Machine, Jaw Crusher , Cone Crusher
- china main port
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | stones, mining | Motor Type | AC Motor | |
| Power(W) | 120kw | Capacity(t/h) | 20T/Hour | |
| Place of Origin | Shandong, China | Brand Name | Dongyue | |
| Dimension(L*W*H) | 13000*4000*49000mm | Certification | CE SGS | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Jaw crusher
1. company profile:
Dongyue Machinery Group has been manufacuring block machine and crushers for 20 years ,
AAC production line for 10 years. now cooperating with Germany AAC concept Company to get the technical support.. now her total assets is 724 million RMB, with an area of 400 thousand square meters

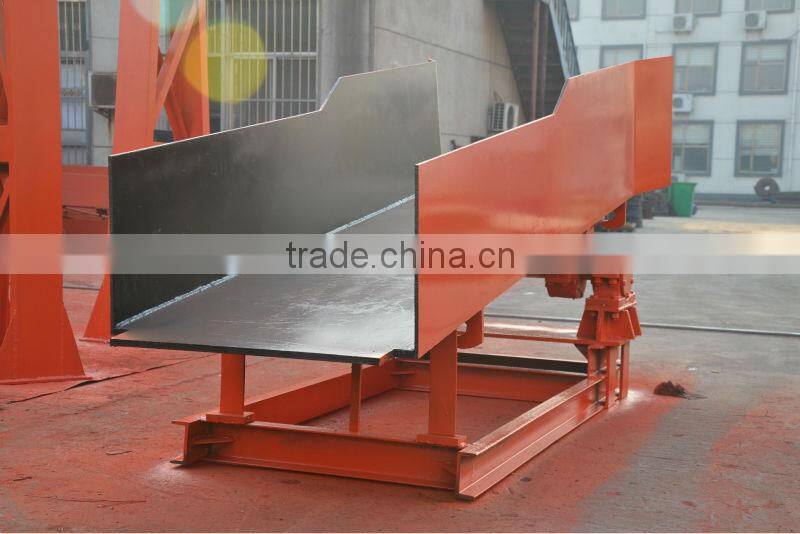

2. Vibrating Feeder
Max Feeding(mm):500
Chute Size(mm):1000*3000
Capacity(t/h):10-100
Motor Power(kw):7.5
Vibrating Frequency(t/min):960
Overall Dimension(mm):3000*1200*1600
Chute Slope:9-12

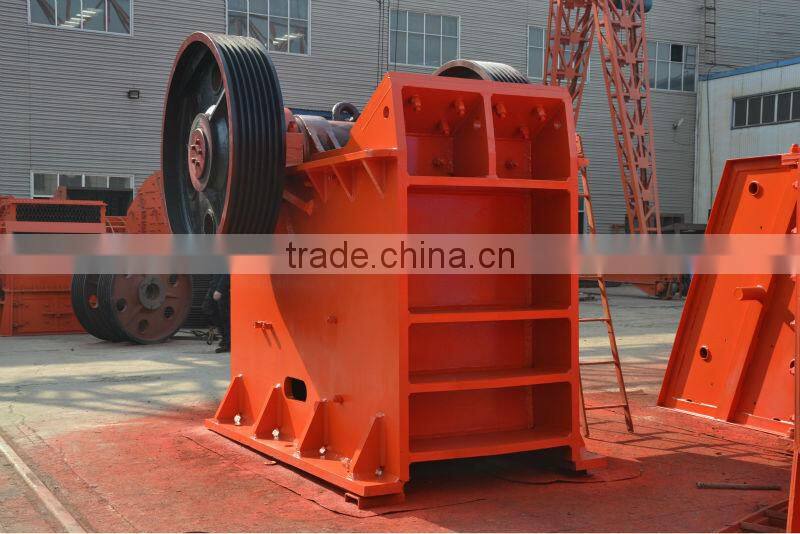

3.Jaw Crusher
Max Feeding(mm):210
Adjustment Range(mm):25-90
Capacity(t/h):15-60
Motor Power(kw):37
Overall Dimension(mm):1400*2115*1490

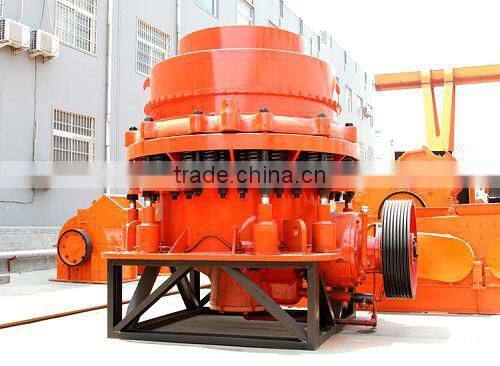

4. cone crusher
Max Feeding(mm):35
Adjustment Range(mm):3-13
Capacity(t/h):5-23
Motor Power(kw):30
Overall Dimension(mm):2234*1370*1675

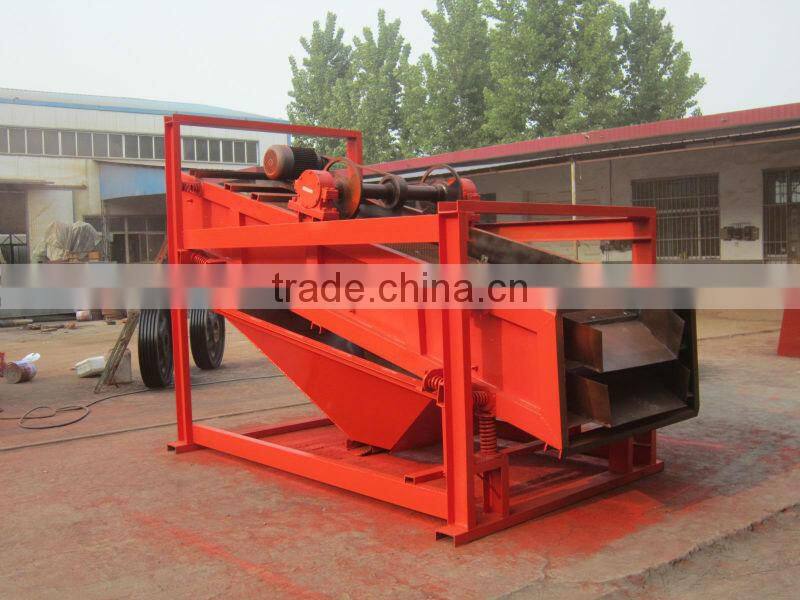

5. Vibrating screen
Max Feeding(mm):80
Layrs:2 out put
Capacity(t/h):10-70
Motor Power(kw):4
Screen Size(mm):1000*3000
Vibrating Frequency(r/min):960
Double Swing(mm):5

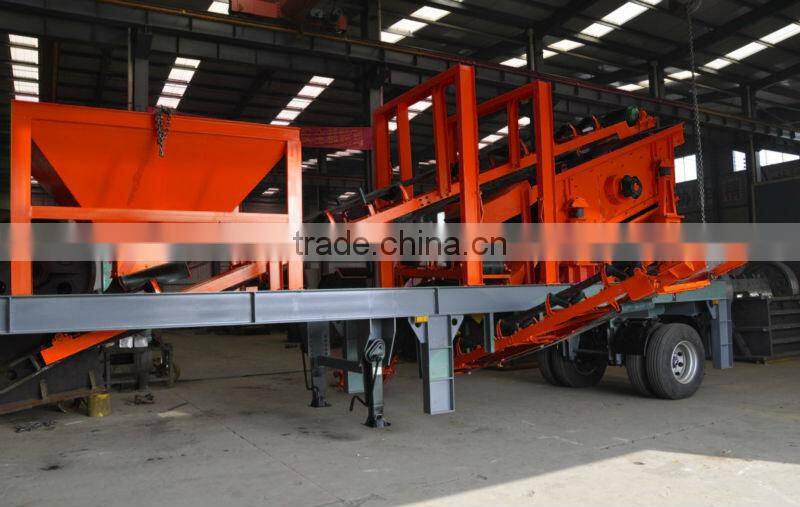

Mobile crushing machine

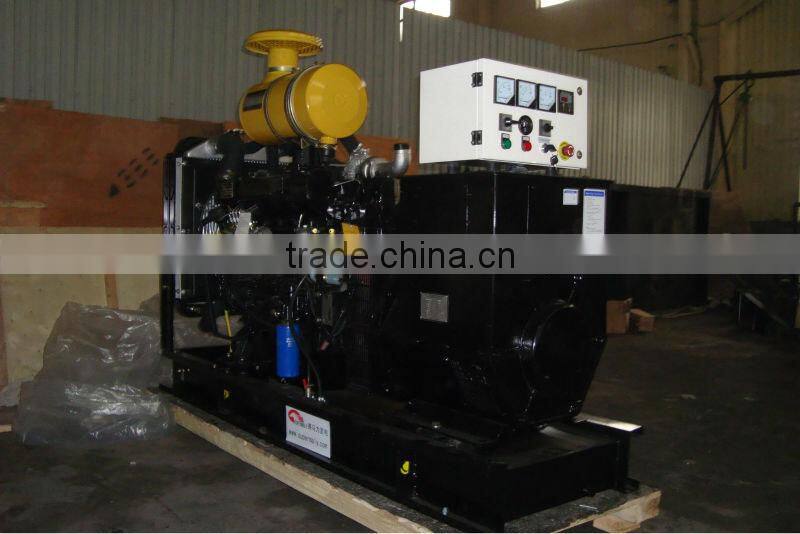

6. Gernerator
Rated Frequency: 50HZ
Power Factor: 0.8
Rated Voltage: 400/230V
Rated Power(KW/KVA): 120/150
Phase/Wire: 3P 4W
Overall Size(mm): 2550×850×1650

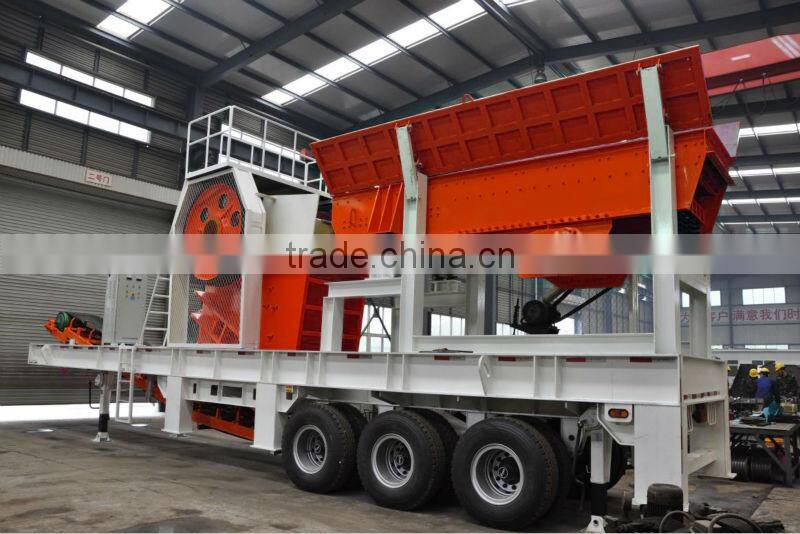

6. mobil crushing plant display

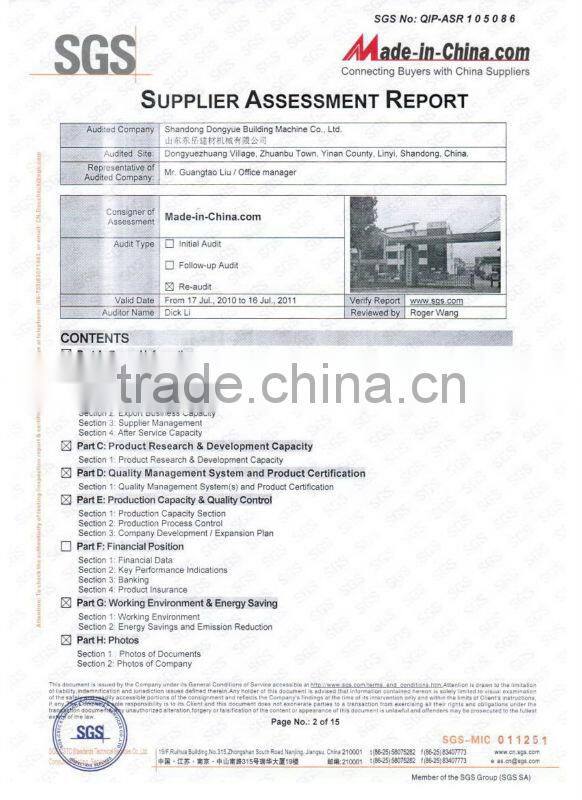

8. certificates of jaw crusher machine
Contact Us
- Dongyue Machinery Group Co., Ltd.
- Contact namejinghui Sun Chat Now
- Phone86-539-8036228
- Addresszhuanbu industry Area, linyi city, Shandong province, China, Linyi, Shandong
