Home > Products > Counter-rotating twin screw extruder > Compounding Co-Rotating Nylon Twin Screw Pelletizing Plastic Extruder Price/Plastic Pellet Making Extrusion Machine
Compounding Co-Rotating Nylon Twin Screw Pelletizing Plastic Extruder Price/Plastic Pellet Making Extrusion Machine
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Twin Screw Polymer Melting Extrusion Machine/Lab PVC Pet PP PE PS PC Recycling Compounding Twin Screw Plastic Granulator
-
Tse-75 PP Glass Fiber Pelletizing Machine/Plastic Polymer Compounding Extrusion Machinery
-
Heat Sensitive Water Cooling Strand Plastic Extruder Machine/TPU/TPU Sole Pelletizing Machine for Twin Screw Extruder
-
Plastic PVC HDPE PE PPR Granules Making Machinery/PP Starch Biodegradable Plastic Pellets Extrusion Machine
-
Compounding Twin Screw Extruder for Masterbatch/PA/PE/Pet/PVC/Sbs/NBR/EPDM
-
CaCO3 Talc TiO2 Carbon Black Filler Masterbatch Making Machine/PP PA & Glass Fiber CaCO3 Filler Masterbatch Extruder
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | Polystyrene | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Jiangsu, China | |
| Brand Name | Nanjing Haisi, Nanjing Haisi | Model Number | TSE -75B | |
| Voltage | 220V/380V | Power(W) | 132kw | |
| Dimension(L*W*H) | 6m*1.6m*2.5m | Weight | 4000kg | |
| Certification | CE ISO9001, CE and ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical Data:
Mode | Diameter (mm) | L/D | speed (r/min) | Motor power (kw) | Torque (N.m) | Capacity (kg/h) |
TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 0.5-10 |
TSE-30B | 31 | 32-48 | 600 | 15 | 119 | 5-40 |
TSH-35B | 35.6 | 32-52 | 600-800 | 15-22 | 119 | 30-70 |
TSE-40B | 41 | 32-52 | 600 | 45-55 | 437 | 90-150 |
TSH-40B | 41 | 32-52 | 600 | 45-55 | 437 | 150-220 |
TSE-50B | 50.5 | 32-52 | 500 | 45-55 | 430 | 180-270 |
TSH-52B | 51.5 | 32-60 | 600 | 90-132 | 682 | 270-400 |
TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-360 |
TSH-65B | 62.4 | 32-64 | 600-800 | 110-160 | 875 | 350-500 |
TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-500 |
TSH-75B | 71 | 32-64 | 600-800 | 200-250 | 1365 | 600-800 |
TSE-95B | 93 | 32-64 | 600 | 315 | 2560 | 800-1200 |
TSH-95B | 93 | 32-64 | 600-800 | 400-450 | 2506 | 1200-1600 |
TSE-135 | 133 | 32-64 | 500 | 550 | 7162 | 1500-2250 |

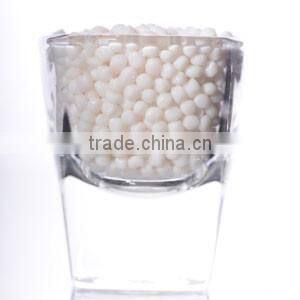

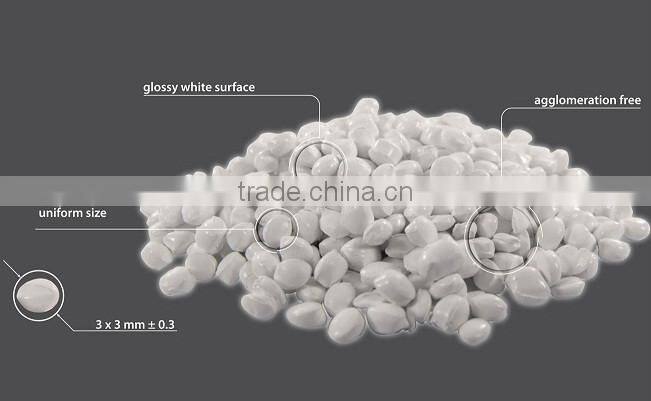

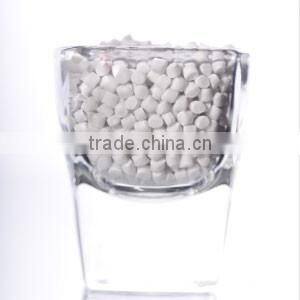

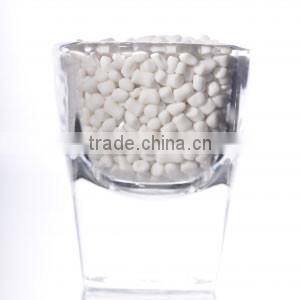

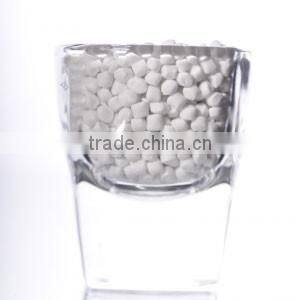

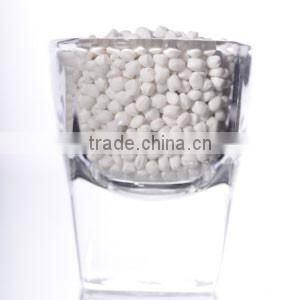

1.Do you know about Filler Masterbatch?
Calcium carbonate filler masterbatch is made with super fine calcium carbonate and other high quality special additives based in LLDPE carrier.
CaCO3 filler masterbatch not only cuts down production costs by replacing a part of virgin polymer during extrusion, injection and blow molding progressing but also increases output, improves production conditions as well as a number of physical and chemical properties of finished products.
2.Applications:
| Transparent Filler Masterbatch | |
| Applications: Blowing film, blow molding, injection molding, extrusion Non-woven fabric PP woven bag, jumbo bag Construction materials Pipe extrusion Plastic footwear, housewares |
| PE Filler Masterbatch | |
| Applications:
Blowing film, blow molding, injection molding, extrusion |
| HDPE Filler Masterbatch | |
| Applications:
Blow Molding ( HDPE pipes, bottles, cans, containers) |
| PP Filler Masterbatch | |
| Applications:
Blowing film, blow molding, injection molding, extrusion |
| HIPS Filler Masterbatch | |
| Applications:
Extrusion: HIPS shaped sheets |

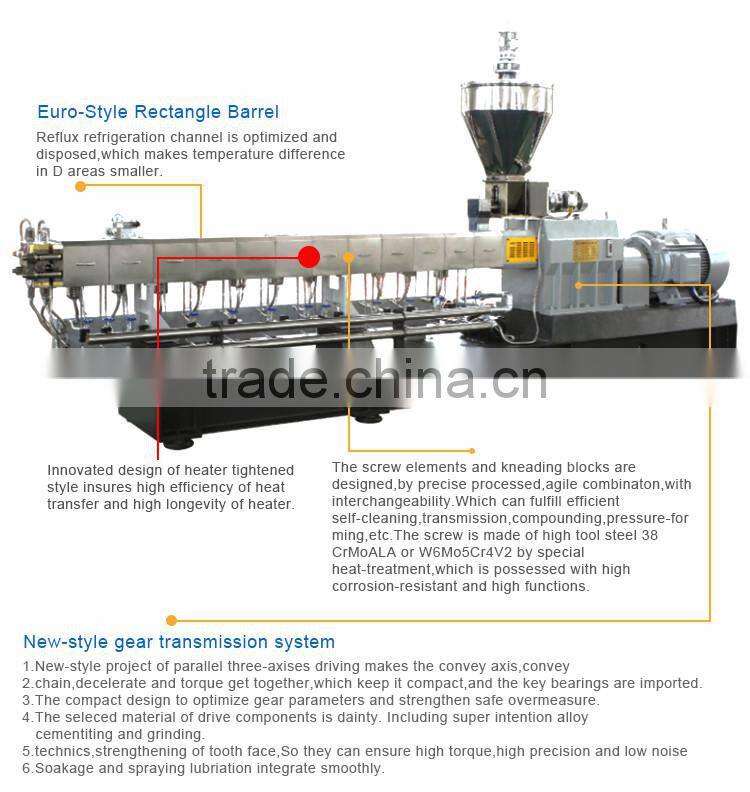

3.Extruder figure:
Mode | Diameter | L/D | Screw rotary speed | Motor power(kw) | Torque(N.M) | Capacity(kg/h) |
TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
1. Q: Are you a factory or trading company,How is you factory extrusion experience?
A: We are a factory. 15 years experience on extrusion.Leading supplier in Nanjing city.
2.Q: How long is your machine’s guarantee time?
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
3. Q:What can you provide for after sale service?
A:We can send engineers to your factory for installation and training if customers‘ required
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
5. Q: If we have samples of new products, can you help to analysis and design the machine?
A:Yes, Our technical department can help to analysis, design and test the new products you offered.
6.Q:Could you afford technician team to guide ours installation and commissioning?
A:Experience engineer oversea installation service provided.
