America Market Used Tipper/Dumper Used Hydraulic Cylinder Lifting System

 Dump Trailer/Dump Truck/Tipping Trailer used hydraulic cylinder

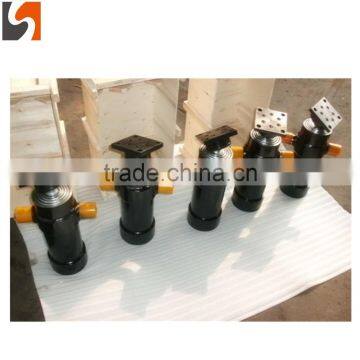

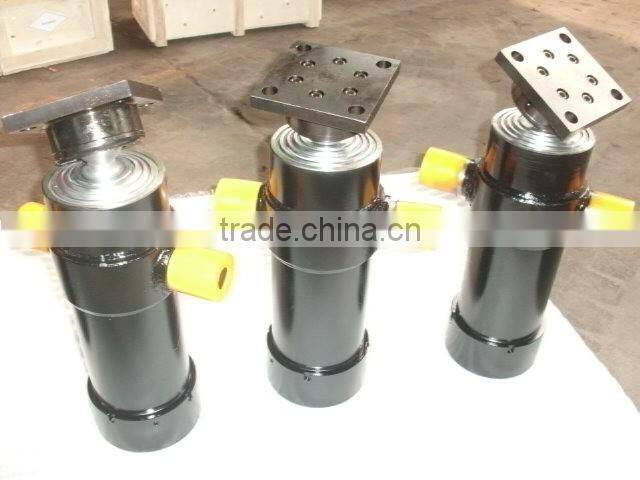

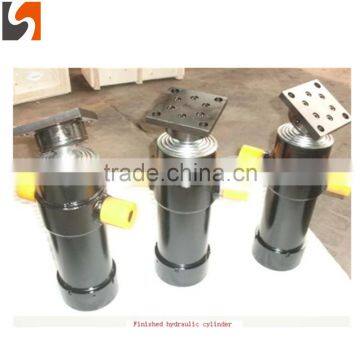

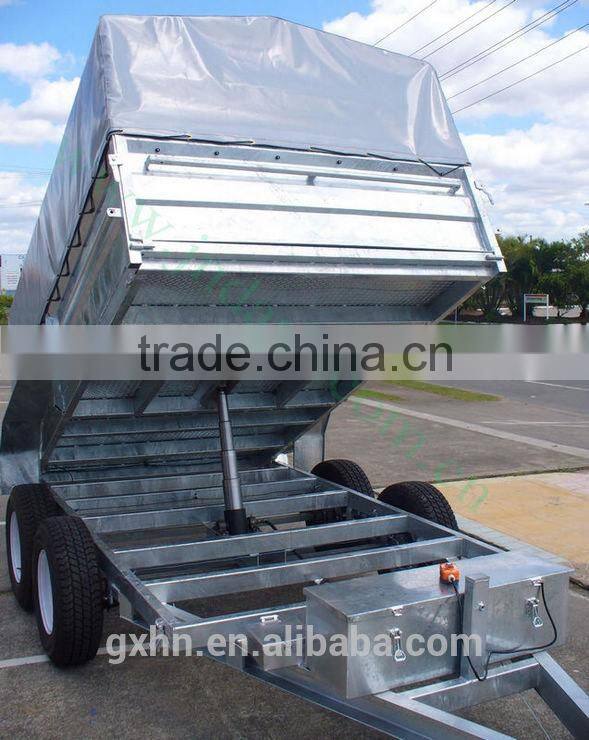

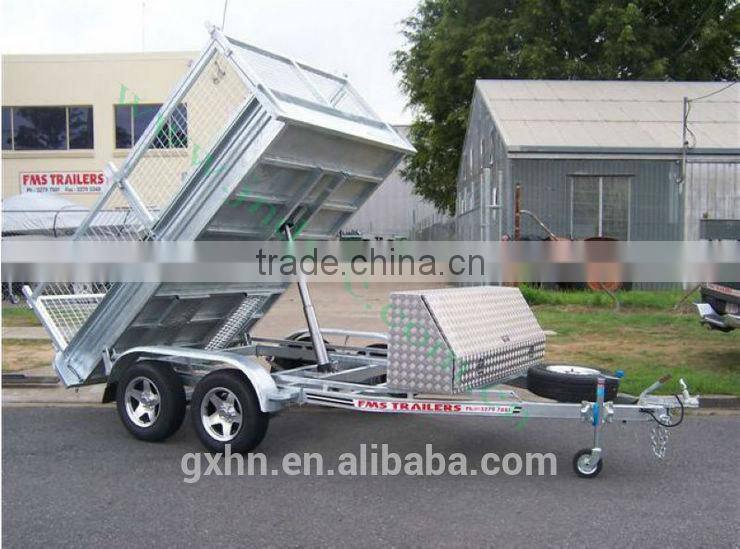

3ton -10ton Tipping Trailer used Telescopic Hydraulic Ram Cylinder

Specifications

1. Parker/Nok/Hallite Seals
2. 1 year Warranty
3. ISO9001:2008
4. Chrome plating
5. Factory Supply

Introduction:

This is a kind of telescopic hydraulic cylinder which is used for dump truck, there are 3,4,5 stages for you to choose, we can also produce according to your drawing...
As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from USA, and there is special seals for our company for PARKER company, so this extend the life of cylinders. Besides, the sleeve of cylinder is very smooth, the surface finish can be 0.02μm. From this point, the using frequency becomes long and long;

Characteristic:
High Speed: Working speed is high, cycle time is short, working capacity is more.
High Efficiency: Light weight, more loading capacity.
High Strength: New design, new material.

-New design products, bigger diameter, more lifting capacity.
-Max working pressure reaches 190 bar,better anti-pressure ability.
-Special-purpose material, high quality, high-precision, better anti-bending ability.
-New model guide ring combined with Senior lubricating material,guarantee cylinder lift more smoothly and work long time.
-Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
-New model stop collar combined with new model guide ring, maximum limit improve the working security and stability.
-Equiped with maintenance-free support, longer working life, bring you more benefit.
-Adopt "Less component integration" design philosophy, easy to maintain.
-Cylinder is tested 100%, guarantee high quality.

Specification of some Multi Stages Hydraulic Cylinders :

Compamy:

Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.

Our company scale as follows:
13 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers

Manufacture &Design Capacity:
GXHN Standard Series Hydraulic Cylinder:
1. Stroke Length:Up to 9030mm
2. Rod Diamster: Up to 400mm
3. Load capacity: Up to 300 ton
4. Extended Stages: 1/2/3/4/5/6/7
5. Working pressure:C--6.3MPa; E--16MPa; G--25MPa; H--32MPa
6. Material: 1020 Steel , 1045 steel , AISI4140 , Q235 Steel ,St52,27SiMn
7. Working temperature from -50°c to +200°C
8. High strengtgh seamless steel tube.
9. One year quality guarantee
10.Dual low resistance dust proof design
