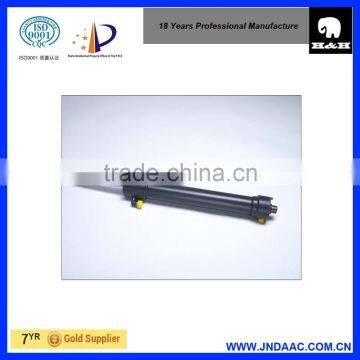

plain and threaded hydraulic oil cylinder

FOB Price

USD $5 - $2,000 / Piece

10 Pieces(Min.Order)

Supply Ability 6000 Piece / Pieces per Month
Port Qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Piston Cylinder
Power	Hydraulic	Body Material	Steel
Maximum Stroke	7000mm	Shaft Diameter	500mm
Place of Origin	Shandong, China	Model Number	WDYG
Brand Name	DAWN or OEM

Product Description

Agricultural four tie rod hydraulic cylinders

Usages and features:

Mounting way:

Code	Form	Symbol
1	basic form	-
2	head fixed with flange	f
3	end fixed with flange	F
4	vertical to axis foot type	G
5	middle fixed with pendulum shift	B
6	end with single earring	S

Feature:

working pressure	7~40Mpa
proof pressure	10-60Mpa
transmission medium	general mineral hydraulic oil
start-up pressure	<=0.3Mpa
medium temperature	(-10,80)

Cushioning way:

Code	Cushioning form
B	two ends with cushioning
R	rod end with cushioning
H	end with cushioning
N	without cushioning

Max stroke:

Bore(mm)	Φ40	Φ50	Φ63	Φ80	Φ100	Φ125	Φ140	Φ150	Φ160
Smax(mm)	1200	1200	1600	1600	2000	2000	3000	7000	7000

1. Mounting type: trunnion, flange, earring, according to your demand;

2. seal: Parker, NOK and other seal ring which is famous in the world so that you the hydraulic cylinder can seal better;

3. Piston rod: C45 steel;with high frequency quenching;

4. buff function: you can choose to design with adjustable buff to avoid impact of cylinder;

5. size: bore:20-500mm; stroke can reach to 10000mm;

6. Certainly, you can provide drawing so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
