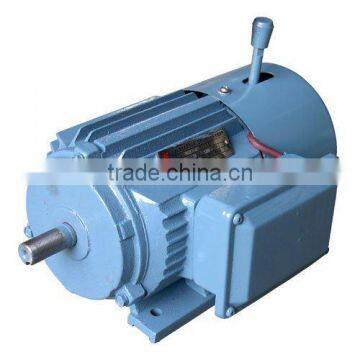

Ectromagnetic asynchronous brake motor (YEJ series)
- tianjin
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Tongxin | |
| Model Number | YEJ |
Product Description
Specifications
Certification :CE.CCC.ISO9001-2000 certificate.speed:1435rpm
Output:4kw
Type: Asynchronous Motor.
Rated voltage: 220/380V.
serises YEJ brake motor is a full encloed, self-fan,cool,cage type one with additional diskD.C.brake.It's quick in brake,simple in structure,high in reliability and wide in applicability.
Some parts of YEJ series motor's techinical data
MODEL | OUTPUT(kW) | SPEED(rpm) | CURRENT(A) | EFFCIENCY(%) | BRAKING TORQUE(N.M)
| Braking Time(s) | Braking output(W) | RATED TORQUE | WEIGHT(KG)
|
YEJ-80M1-2 | 0.75 | 2845 | 1.83 | 75 | 8 | 0.2 | 30 | 2.3 | 17 |
YEJ-80M2-2 | 1.1 | 2840 | 2.58 | 77 | 8 | 0.2 | 30 | 2.3 | 18 |
YEJ-90S-2 | 1.5 | 2840 | 3.43 | 79 | 15 | 0.2 | 50 | 2.3 | 23 |
YEJ-90L-2 | 2.2 | 2840 | 4.85 | 81 | 15 | 0.2 | 50 | 2.3 | 26 |
YEJ-100L-2 | 3 | 2860 | 6.31 | 83 | 30 | 0.2 | 65 | 2.3 | 37 |
YEJ-112M-2 | 4 | 2880 | 8.1 | 85 | 40 | 0.25 | 90 | 2.3 | 45 |
YEJ-132S1-2 | 5.5 | 2900 | 11 | 86 | 75 | 0.25 | 90 | 2.3 | 69 |
YEJ-132S2-2 | 7.5 | 2900 | 14.9 | 87 | 75 | 0.25 | 90 | 2.3 | 72 |
