Tongxin Brand Medium-pressure Pipes Pass Filter (YPM series )
- 100 Set / Sets per Month
- Tianjn
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Tongxin | |
| Model Number | YPM | Structure | Other |
Product Description
Specifications
1.Filter pass ISO9001-2000 quality cerificate2.High efficiency, compact and durable design
3.Screening efficiency,

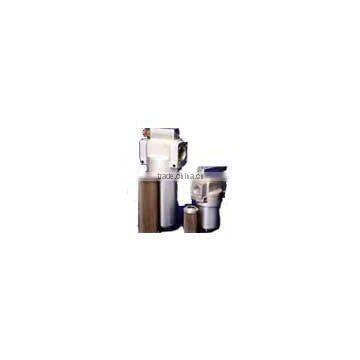

YPM series of medium-pressure pipes pass filter
Piping installed in the hydraulic system pressure, the filter medium, the work of colloidal solid particles and substances, the effective control of pollution caused by the working fluid. Can be assembled as needed pressure sender device and the bypass valve. Cartridge filter material were used composite fiber, kapok shaping filter paper, stainless steel sintered felt, stainless steel braid. The upper and lower shells are used aluminum forgings, small size, light weight, compact structure, beautiful shape.
Rated flow rate of clean filter pressure drop (Unit: 1 × 105Pa medium parameters: 30mm2 / s 0.86kg/dm3)
Model | Shell | Filter | |||||||||
FT | FC | FD | FV | CD | CV | RD | RV | MV | ME | ||
YPM060… | 0.62 | 2.50 | 1.51 | 1.06 | 0.74 | 0.62 | 0.46 | 0.60 | 0.48 | 0.80 | 0.41 |
YPM110… | 1013 | 2.39 | 1.43 | 1.01 | 0.70 | 0.60 | 0.44 | 0.57 | 0.46 | 0.76 | 0.39 |
YPM160… | 0.58 | 2.76 | 1.66 | 1.17 | 0.81 | 0.69 | 0.50 | 0.66 | 0.53 | 0.88 | 0.45 |
YPM240… | 0.96 | 2.73 | 1.64 | 1.16 | 0.81 | 0.68 | 0.50 | 0.66 | 0.53 | 0.87 | 0.45 |
YPM330… | 0.64 | 2.89 | 1.74 | 1.23 | 0.85 | 0.72 | 0.53 | 0.70 | 0.56 | 0.92 | 0.47 |
YPM420… | 0.87 | 2.48 | 1.49 | 1.05 | 0.73 | 0.62 | 0.45 | 0.60 | 0.48 | 0.79 | 0.41 |
YPM660… | 0.23 | 2.76 | 1.66 | 1.17 | 0.81 | 0.69 | 0.50 | 0.67 | 0.53 | 0.88 | 0.45 |
