2kw 50rpm PMG Alternator Permanent Magnet Generator/low Rpm Vertical ac Pmg

FOB Price

US$ 480 - 6,610 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	JINFAN
Model Number	JFVC-2KW(50RPM)		Type	Wind Power Generator

1.CE and ISO.
2.Design life:20 years.
3.Low RPM.

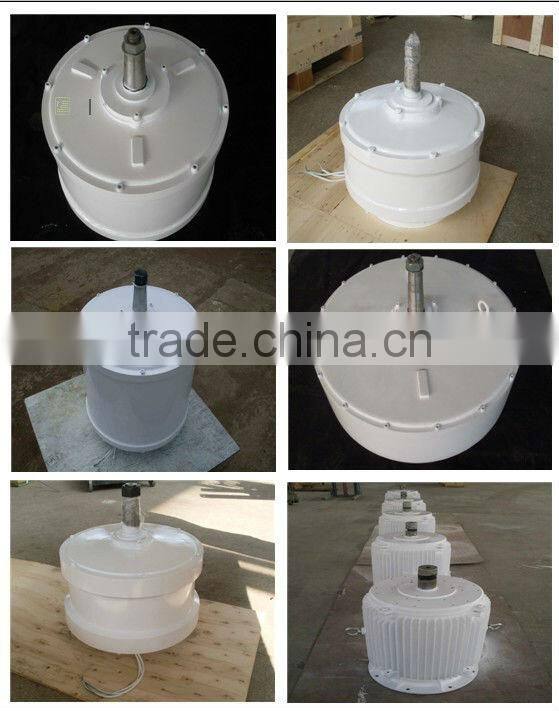

2kw 50rpm PMG alternator permanent magnet generator/low rpm vertical ac pmg

2kw 50rpm PMG alternator permanent magnet generator/low rpm vertical ac pmg

Specification:

model	2kw50rpm
generator type	synchronous permanent magnet 3 phase AC
magnetic steel material	38SH NdFeB
class of insulation	B
housing material	cast iron/aluminium
shaft material	45# steel
rated power	2kw
rated rotate speed	100rpm
rated voltage	48VAC/96VAC/120VAC/220VAC/240VAC
grade of protection	IP54
weight	154(cast iron)/129(aluminium)
start up torque	9.31(cast iron)/13.72(aluminium)
rated torque at rated speed	554
number of poles	22(aluminium)/32(cast iron)

All permanent magnet alternator models:

300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM, 5KW50RPM,5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM.

About us:

Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind generator manufacturer.

Our hot-sale products have following four series:

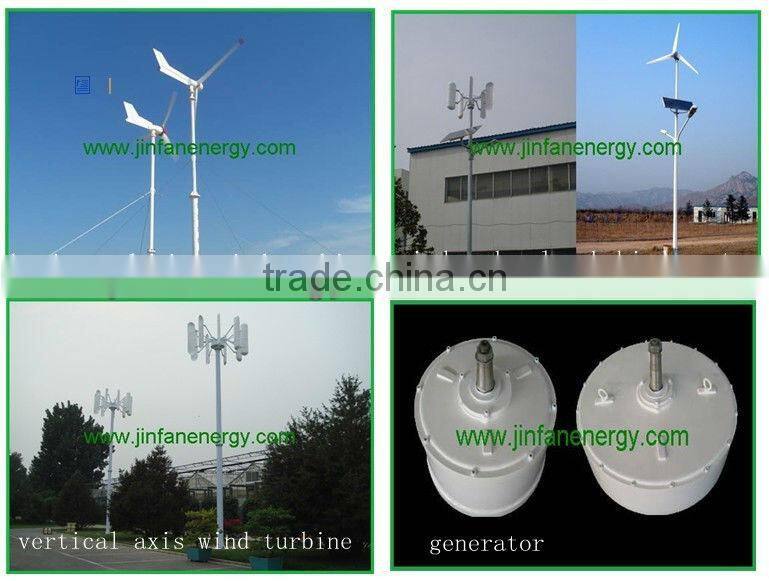

1.Vertical axis wind generator:300W,500W,1KW,2KW,3KW,5KW

2.Vertical low RPM PMG:

300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,

5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM

3.Horizontal axis wind generator:1KW,2KW,3KW,5KW,10KW

4.Wind and solar hybrid (street lamp) system
