Home > Products > Permanent Magnet Generator > 2KW Low Rpm Permanent Magnet Generator for Water Power System

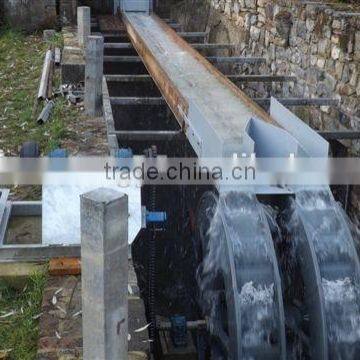

2KW Low Rpm Permanent Magnet Generator for Water Power System
- Qingdao Shanghai
- T/T
You May Like
-
10KW50rpm,100rpm Permanent Magnet Generator Alternator
-
Low Speed Low Rpm Alternator Generator for Home Use
-
the Bigger 50KW Wind Turbine Generator
-
2KW Low Rpm Permanent Magnet Generator for Hydraulic Electrogenerating
-
Low Speed Low Rpm Alternator Generator for Water Turbine
-
the Bigger Horizontal Axis Wind Turbine of 50KW
Product Details
| Place of Origin | Shandong, China | Brand Name | JINFAN | |
| Model Number | 300W-15KW | Type | Wind Power Generator |
Product Description
2KW low rpm permanent magnet generator for water power system
• rated power:
300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,5KW50RPM,5KW100RPM,
10KW50RPM,15KW125RPM
• rated voltage: 12VAC/24VAC/48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• generator style: synchronous three phase permanent magnet AC generator
• magnetic steel material:38SH NdFeB
• Housing material: cast iron / aluminium
• shaft material:45# steel
• class of insulation:F
• grade of protection: IP54
Remark: we can design and produce the non-standard generatos according to customers's requirements.
model | JFVC-2KW (50rpm) |
generator type | synchronous permanent magnet 3 phase AC |
magnetic steel material | 38SH NdFeB |
class of insulation | F |
housing material | cast iron / aluminium |
shaft material | 45# steel |
rated power(KW) | 2 |
rated rotate speed(RPM) | 100 |
rated voltage(VAC) | 48/96/120/220/240 |
grade of protection | IP54 |
Weight(KG) | 154(cast iron) / 129(aluminium) |
start up torque(N.M) | 9.31(cast iron) / 13.72(aluminium) |
rated torque at rated speed(N.M) | 554 |
number of poles | 22(aluminium) / 32(cast iron) |
Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind generator manufacturer.
Our hot-sale products have following four series:
1.Vertical axis wind generator:300W,500W,1KW,2KW,3KW,5KW
2.Vertical low RPM PMG:
300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,
5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM
3.Horizontal axis wind generator:1KW,2KW,3KW,5KW,10KW
4.Wind and solar hybrid (street lamp) system
