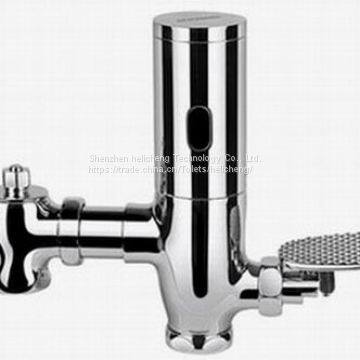

toilet Flush Valves

MODEL:H-50 with induction foot stool flushing device)

Inlet diameter: G1

The outlet pipe diameter: G1

Application of hydraulic: 0.1Mpa-0.7Mpa

Supply voltage: AC 220V-50/60Hz (AC)

Static power consumption:<2W (AC) 0.5mW (DC)

The sensing range: automatic ranging

The use of environmental temperature: 0-45oC

Protection grade: Ip56

Size: 180*130mm

Functional properties:

With the induction toilet flushing device, is the introduction of foreign advanced technology and production equipment, absorption of Europe and the United States and Japan equivalent industry product advantages, adopts the infrared induction principle design and manufacturing.

1, installation characteristics: surface mounted pipeline design, convenient connection; built-in removable flush valve, water smooth, convenient installation.

2, configuration: foot valve according to the user, ready to step on the foot valve flush toilet cleaners, also can step on the foot valve cleaning in clean toilet, cleaning work efficient and convenient.

3, the appearance of streamline design: beautiful and generous, to meet the modern trend.

4, water saving: the use of water after each use of the machine 6L (Note: water pressure is 0.3 ~ 0.6Mpa)

5, health: all the washing action is automatically completed by the sensor, without human operation. Rinse thoroughly, do not leave odor, can effectively avoid cross infection of bacteria.

6, intelligent deodorant: when the toilet is in long-term use, the flush valve will every 24 hours flushing time, to prevent the trap in the water dried up, causing odor review.

7, anti fouling function: can prevent the sewage back, polluted water.

8, this product uses the import Italy battery valve, shelf life for three years.

The stool sensor is through infrared reflection principle, when the red line area in the body of the squatting pan, the infrared emission tube infrared rays emitted by the human body due to the reflection of blocking the infrared receiving tube, the signal sent by the microcomputer processing within the integrated circuit after the pulse electromagnetic valve, solenoid valve after receiving signal according to the instructions given to open the valve to control the water machine. It is with the induction urinal flushing toilet is induced in different ways, in the human body infrared induction machine, in the pending working state, the machine does not wash, when the body leaves the infrared sensing range after induction toilet began to wash, finally through the spring internal electromagnetic valve core reset to control the toilet off water. The flushing time and closing time of the induction stool are set according to the instruction set.
