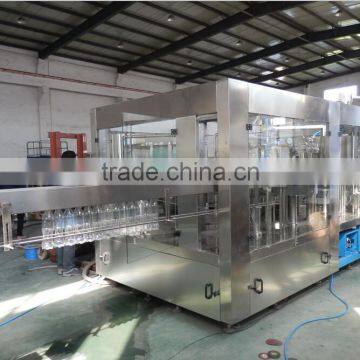

carbonated drink small manufacturing machines

1. Using the air convey access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

1) Rinser / filler / capper monobloc

2) Bottle material: PET, glass, metal

3) Bottle volume: 150ml - 2500ml

4) Production capacity: 2000-15000bph

5) Can design according to customers' demands

6) We can supply filling line solution and filling machines for soda water

Model

DGZ14-12-5

DGZ24-24-8

DGZ32-32-8

DGZ40-40-10

Production Capability

2000-3000

4000-6000

7000-8000

8000-12000

12000-15000

Filling precision

≤+5mm(Liguid Level)

Filling pressure

≤0.4

PET bottle specification

 (Bottle diameter):Ø50- Ø100;(Height):150-310

Suitable cap shape

Plastic Screw Cap

Total Power(kw)

2.2

3.5

4.5

5.5

5.5

Washing heads

14

18

24

32

40

18

24

32

40
