Home > Products > pvc steelwire hose > Pvc Fiber and Steel Wire Reinforced Hose
Pvc Fiber and Steel Wire Reinforced Hose
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | huizhong | |
| Model Number | hz003 | Plastic Modling Type | Extruding |
Product Description

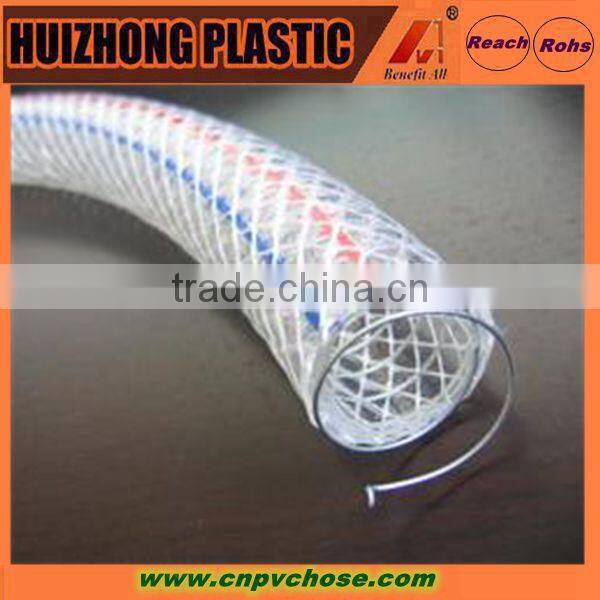

pvc fiber and steel wire reinforced hose
Applications:
1) Suitable for conveying liquid,gas and powder under high working pressure.
Characteristics:
1) This hose,made with steel wire screwing inlaid in the hose,and high quality fiber reinforcement by advanced higher pressure as well as minus pressure conditions.
2) By adding colorful symbol lines on the suiface of the hose,it looks more beautiful.
Specifications:
|
|
Metric Measurement | W.P. MPa |
B.P. MPa |
Weight |
Packing Measurement |
| ||
Ltem No. | Inch | I.D.mm | OD.mm | m/roll | At 23 | kg/roll | D×H mm | m3 | |
HZ-25×3.5 | 1 | 25 | 32 | 50 | -0.1~0.8 | 2.5 | 24 | 660×200 | 0.087 |
HZ -32×4 | 1-1/4 | 32 | 40 | 40 | -0.1~0.8 | 2.3 | 28 | 780×320 | 0.19 |
HZ -38×4.5 | 1-1/2 | 38 | 47 | 40 | -0.1~0.7 | 2.2 | 36 | 730×240 | 0.181 |
HZ -50×5.5 | 2 | 50 | 61 | 40 | -0.1~0.7 | 2.0 | 57.5 | 900×320 | 0.26 |
HZ -64×7 | 2-1/2 | 64 | 78 | 20 | -0.1~0.7 | 2.0 | 47.3 | 1000×240 | 0.24 |
HZ -75×7.5 | 3 | 75 | 90 | 20 | -0.1~0.6 | 1.8 | 58.3 | 1100×370 | 0.447 |
HZ -90×8 | 3-1/2 | 90 | 106 | 20 | -0.1~0.5 | 1.5 | 74 | 1060×440 | 0.494 |
HZ -100×8 | 4 | 100 | 116 | 20 | -0.1~0.5 | 1.5 | 82 | 1150×360 | 0.476 |
