Home > Products > Malleable Iron Pipe Fittings > Water Cleaning Malleable Iron Cross
Water Cleaning Malleable Iron Cross
US$ 0.098 - 42.48
/ Piece
100 Pieces(Min. Order)
- XINGANG PPRT CHINA
- T/T
You May Like
Product Details
| Material | Iron | Technics | Casting | |
| Type | Cross | Place of Origin | Shanxi, China | |
| Model Number | HIG155 | Brand Name | HIG | |
| Connection | Female | Shape | Equal | |
| Head Code | Other, Round |
Product Description
Product Description
| MALLEABLE IRON PIPE FITTINGS DETAILS | ||
| Material | Black heart malleable iron | |
| British Standard | Threads :ISO 7/1 | |
| Dimension: BS EN 10242, BS 143&1256 | ||
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) | |
| Physical property | Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB | |
| Testing pressure | 2.5MPa, 100% test before shipment | |
| Working pressure | 1.6MPa | |

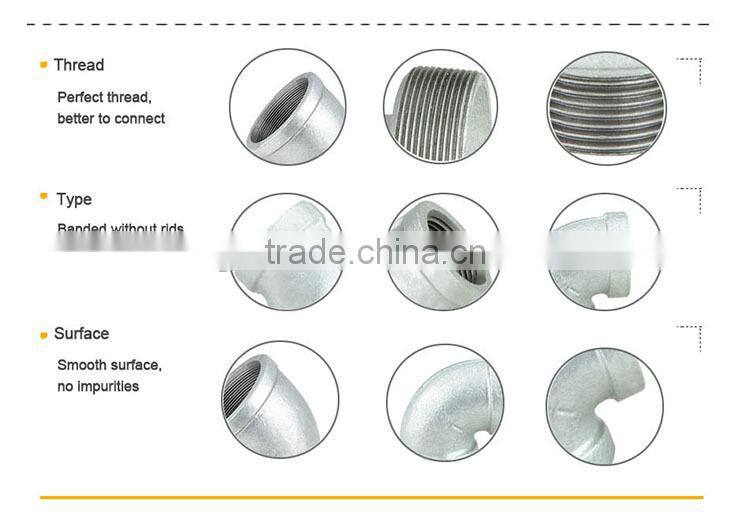

| Type | Banded, Beaded with ribs. | |
| Size | 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6". | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, Standard, Medium, Light | |
| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc. | |
| Related products | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Carbon steel butt-welding fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Grooved fittings | 12. Sanitary fittings, etc. | |
| Connection | Male, Female | |
| Shape | Equal, Reducing | |
| Certificate | BSI, ANAB, ISO9001,FM,UL | |
| Applications | Suitable for Pipe lines connect of water, steam, air, gas, oil and so on. | |
| Buyer’s drawings or designs are available. | ||
| Package | 1. Cartons without pallets. | |
| 2. Cartons with pallets. | ||
| 3. Double woven bags | ||
| Or as buyer’s requirements. | ||
| Delivery detail | ||
| According to the quantities and specifications of each order. | ||
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
