Pulley Wire Drawing Machine with water seal cooling system
- 30 Set / Sets per Month
- Xingang port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | JIAKE | |
| Model Number | DLW-1-6/560 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Pulley Wire Drawing Machine with water seal cooling system
Wire drawing machine is made up of main reducer gear box, mould case, guiding wheel frame and electrical inverter control system. It can be used in drawing metal wires made of steel, aluminum. copper, etc. The speed of the gear roll is increasing in sequence along with the thinning and lengthening of the wire rods. It is widely applied to the manufacturing of standard parts.
Technical Parameter
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Mould size | 6.2mm+5.7mm | 5.0mm | 4.4mm | 3.8mm | 3.2mm | 2.7mm | 2.3mm | 2.0mm |
| Motor Capacity | 18.5kw | 18.5kw | 18.5kw | 18.5kw | 18.5kw | 18.5kw | 18.5kw | 18.5kw |
| Rotation speed | 58r/min | 78r/min | 100r/min | 124r/min | 150r/min | 178r/min | 208r/min | 240 r/min |
| Type of Motor | 4 level motor | 4 level motor | 4 level motor | 4 level motor | 4 level motor | 4 level motor | 4 level motor | 4 level motor |
| Productivity | 377m/min | |||||||
Raw Material
Low carbon wire
Feature
1. Complete electrical system, perfect protection system and water seal cooling system
2. Easy combination, high productivity and convenient operation.

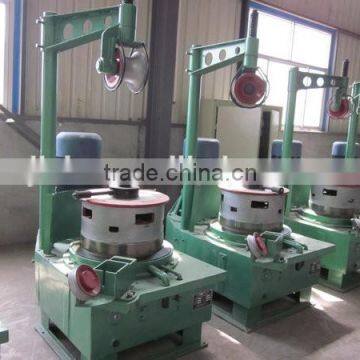

Pulley wire drawing machine
Descaling machine
Descharging machine
Drawing mould
Finished products
Processing
Quality control
We always pay more attention to the quality of our machine, Standard quality control system and team are responsible to insure the high quality in every process. We are devoted to producing a more efficiency and safer machines.
Product catalog
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
