Wedge Wire Screen/v Wire Johnson Well Screen Manufacturing Plant

Specifications

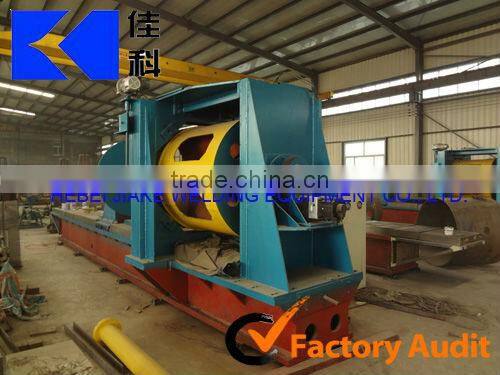

Wedged Wire Screen Mesh Welding Machine

Wedged Wire Screen Mesh Welding Machine Features:

Our wedged wire screen mesh welding machine have the strongpoint of low noise, low energy consumption and stable function. The electrical control system is researched and developed by ourselves, main axis and feeding axis are both adopt Panasonic Brand AC power servo motor and drivers. Slot size adopt NC servo motor to drive ball-screws, ball-screws drive the drawing support rods plate sliding on linear guideway according to the instructions, slot size could be adjusted randomly.

Machine parameters’ adjusted and displayed visual and convenient, simple and easy to do. Ball-screws and Linear guideway both adopt import famous brand product.

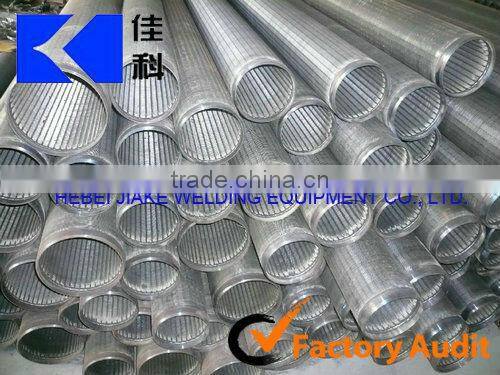

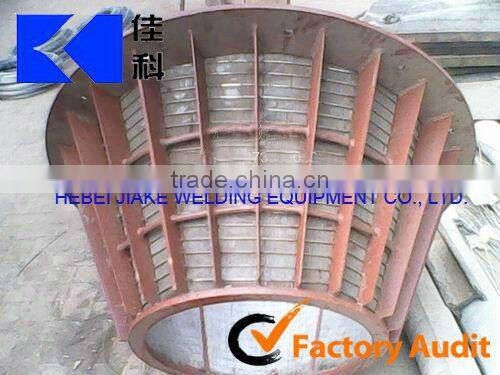

Wedged Wire Screen Mesh Welding Machine Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.

Wedged Wire Screen Mesh Welding Machine function and parameters:

Machine’s work mode: Automatic and Adjustable

a). Automatic mode, input correct variable value then the machine can work automatic cycle.

b). Adjustable mode, every parts movement of machine could be adjustable, like a manual mode.

1. Input power: 380V 50Hz

2. Canister diameter: 100,200,400,600,800,1000,1200mm

(can be customized)

2. Canister length: ≤6000mm

3. Slot size: ≥0.1mm

4. Slot size tolerance: +/-0.05mm

5. Material: stainless steel wire, low carbon steel wire

6. V-wire size: 2.0-5.0mm

7. Support rod size: 2.0-5.0mm

8. Main axis max. rotate speed: 20 r/min

9. Feeding axis max. speed: 1m/min

10. Dimension: 9000*1600*2300mm

11. Weight: 9000kg

We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
