2015 New Products of Automatic Fence Mesh Welding Machine Manufacturer Made in China

 Wire Mesh Fence welding machine features:

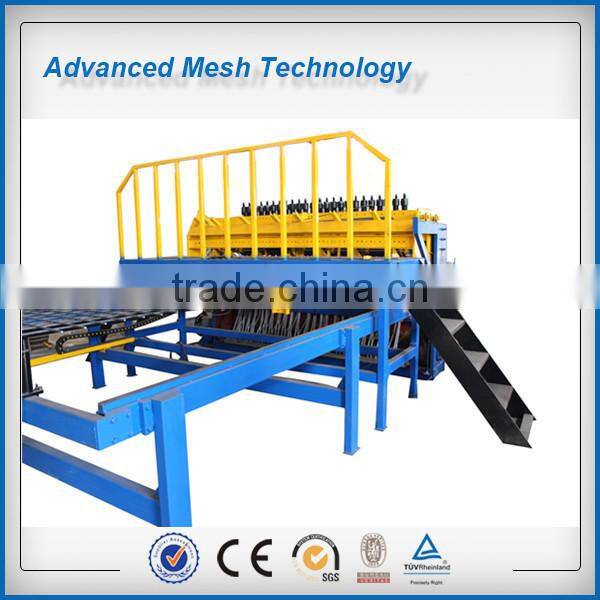

1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh

wire diameter 5-12mm mesh width 2.5m mesh length max 12m aperture 100-300mm welding electrode 24pcs welding transformer 150KVA*12 welding speed: 30-65 cross wires/min

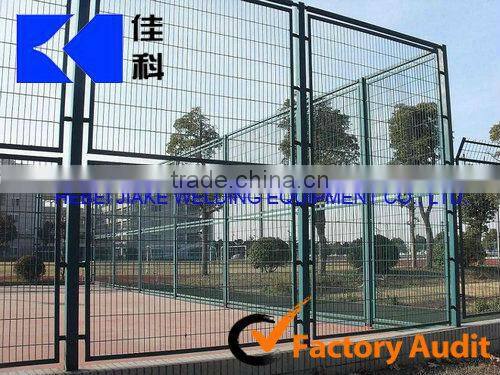

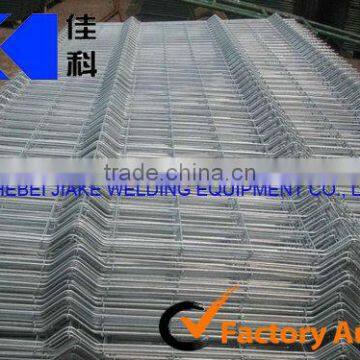

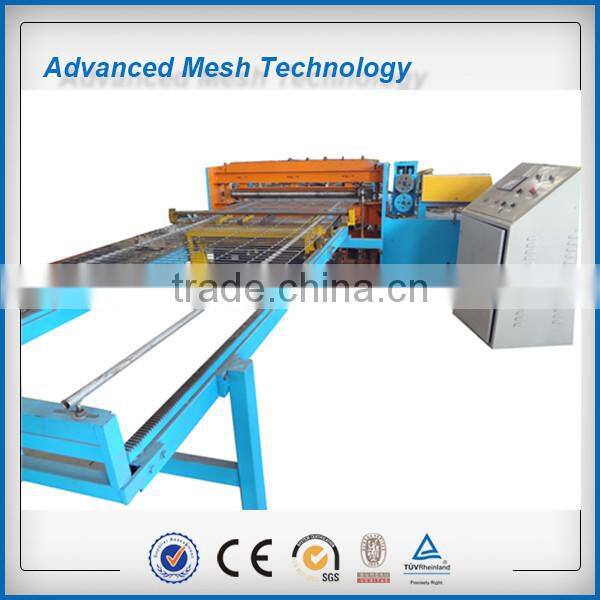

2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh

wire diameter 3-6mm mesh width 2.5m mesh length max12m aperture 50-200mm welding electrode 48pcs welding transformer 150KVA*12                                                          welding speed  45-75 cross wires/min mesh drawing device, powered by Servo motor  line wire: pre-straightened and precut or coil wire cross wire:pre-straightened and precut end products: roll mesh or panel mesh

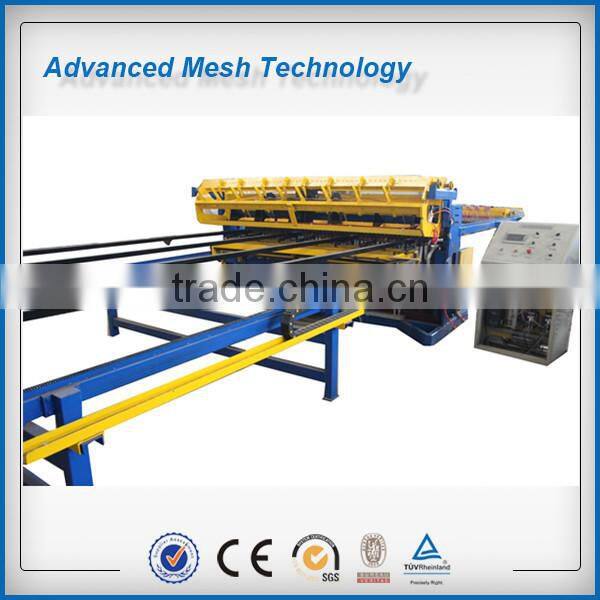

3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh

wire diameter 2-3.5mm mesh width 1.2m mesh length as required aperture 50-200mm as required welding electrode :16pcs or 25pcs as required welding speed: 80-90corss wires/min mesh drawing device, powered by Servo motor line wire and cross wire: both from coil wire     end products: panel mesh or roll mesh

4. electric welded mesh machines for construction mesh

Wire diameter 0.8-2.0mm mesh width 1.2-1.8m mesh length as required aperture 1/2"-4" as required welding speed:80-120 cross wire/min line wire and cross wire: both from coil wire end products: roll mesh

All our machines could be customized, please contact us for much more details

Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.

A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.

Tell us your need, we will surprise you with best price, best quality and best service!
