Full Automatic Chain Link Fence Machine Production Line
- xingang
- T/T
You May Like
-
Full Automatic Chain Link Fence Machine Diamond Mesh Machine Manufacturing Factory
-
High Quality Low Carbon Steel Wire Chain Link Wire Mesh Machine Supplier
-
Automatic Mild Steel Chain Link Fence Weaving Making Wire Mesh Machine Manufacturer Supplier
-
Athletic Training Location Fence Chain Link Fence Machine Production Line
-
Chain Link Wire Mesh Machine Supplier
-
Cyclone Fence Machine /hurricane Fence Machine /diamond Mesh Fence Machine
Product Details
| Place of Origin | Hebei, China | Brand Name | JIAKE | |
| Model Number | JKAKE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

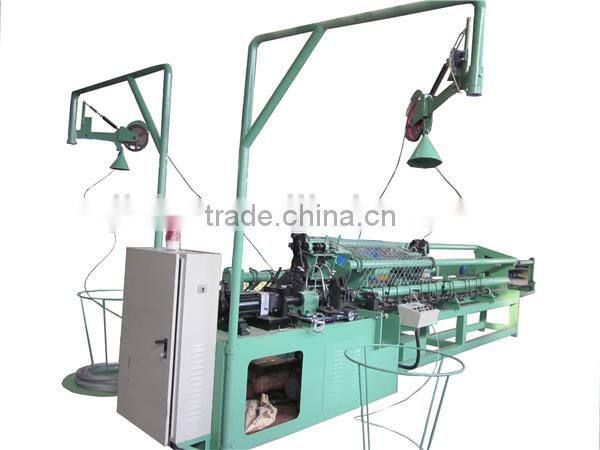

full automatic chain link fence machine production line
Chain Link Fence Machine features
a. Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the diamond size takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place
b. The chain link is automatically wound to form rolls when the desired length is manufactured.
c. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
d. One side or both sides of the end of net hole is twisted or with burr in edge.
e. Use compacting machine to make it into rolls.
Chain link fence machine specification
1. Width scope of weaving: 2-4m; suitable for all kinds of Electro-galvanized, hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 30-100mm(According to the requirements of customers, can provide 2 different types of knife molds)
3. Wire scope of weaving: 2-4mm
4. The output per minute: for example: if the mesh is 50*50mm,width 2000mm, the output will be 1M2/min
5. The machine is controlled by PLC automatic controller
6. Power consumption: 9KW
7. Weight of equipment: 4200kg
8. Out side size: main machine:6700*1430*1800mm 5100*1700*1250mm
9. Electric System:
1) Germany Simens PLC origin
2) The inverter is selected from high quality products of Japan ”YASKAWA Electrical”
3) Low-voltage electrical from Germany Schneider
4) Electric & Machinery from Taiwan Teco Electric
5) Clutch from Taiwan YA CO., LTD.
10. Suitable wire to the machine: high-quality low-carbon steel wire, galvanized steel wire, stainless steel wire, aluminum alloy wire, aluminum-clad steel wire
11. Chain link fencing is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc.
| CS-A TYPE BARBED WIRE MACHINE | ![]() | ![]() |
| RAZOR BARBED WIRE MACHINES | ![]() | ![]() |
| FENCE MESH WELDING MACHINE | ![]() | ![]() |
| GRASSLAND FENCE MACHINE | ![]() | |
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.

Tell us your need, we will surprise you with best price, best quality and best service!
If you have any questions or need any help, please contact us when you feel free.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
