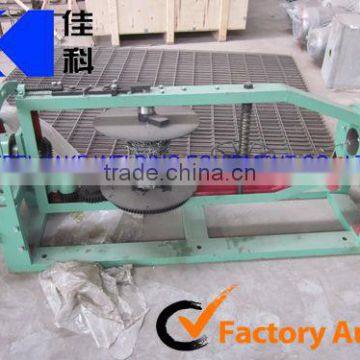

electro galvanized wire barbed wire machines production line
- 20 Set / Sets per Month
- xingang
- T/T
You May Like
-
plastic coated barbed wire machines production line
-
high quality low carbon steel wire barbed wire machines production line
-
mild steel barbed wire machines production line
-
single barbed wire machine
-
1.6mm steel wire Positive and negative twisted barbed wire machine
-
full auto chain link fence making machine factory
Product Details
| Brand Name | JIAKE | Model Number | CS-A B C | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
strand wire diameter: 2.2-3.0mmbarbed wire diameter:1.8-2.2mm
CS-A type Barbed Wire Machine
The materials used are general hot-dipped galvanized low carbon steel wire and plastic coated wire. The products are widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 3 |
2 | Main drive shaft speed | r/min | 402 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 76(3”) 102(4”) 127(5”) |
6 | Twist number | Pcs | 3.5 |
7 | Theoretical output | Kg/h | 70 |
8 | Total weight | Kg | 1200 |
9 | Dimension of main part | mm | 1950*950*1300 |
10 | Dimension of take-twisting part | mm | 1760*550*760 |
Note: Special specification models can be customized according to customer requirements.
CS-B type Single Strand Barbed Wire Machine
The materials used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire. Main feature: saving materials.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Theoretical output | Kg/h | 40 |
7 | Total weight | Kg | 1000 |
8 | Dimension | mm | 3100*1000*1150 |
Note: Special specification models can be customized according to customer requirements.
CS-C type Straight and Reverse Twisted Barbed Wire Machine
The materials used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire, using straight and reverse twist way for winded the twist. The barbed wire products has no rebound and winding phenomenon, so it is more beautiful compared with ordinary barbed wire.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 1.6-2.8 |
4 | Barbed wire diameter | mm | 1.6-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Twist number | Pcs | 7 |
7 | Theoretical output | Kg/h | 40 |
8 | Total weight | Kg | 1000 |
9 | Dimension | mm | 3000*1000*1150 |
Note: Special specification models can be customized according to customer requirements.
If you have any questions or need any help, please contact us when you feel free.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
