PVC/ HDPE Landfill Geomembrane from China
- 100000 Square Meter / Square Meters per Month
- XINGANG
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Tianrui | |
| Model Number | Ge-26 | Material | HDPE, LDPE, LLDPE, PVC, EVA, HDPE, LDPE, LLDPE, EVA |
Product Description
Specifications
PVC/ HDPE Landfill Geomembrane from China1. Material: HDPE, LLDPE
2. Thickness: 0.3-3.0mm
3. Width:1-8m
PVC/ HDPE Landfill Geomembrane from China
High density polyethylene(HDPE) smooth geomembrane ,made of virgin resin by special production ,has even and smooth surface on both sides.It is especially designed for flexible geomembrane.
Product Feature:
1. Good physical and mechanic performance
2. High tearing resistance, strong deformation adaptability
3. Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4. Good adaptability to high and low temperature, non-toxicity, long service life
5. Good waterproof, drainage, anti-seepage and damp proof effects
6. Complete width and thickness specifications, low cost and easy installation.
Product Application:
1. Environmental protection and sanitation like waste landfill, sewage treatment, industrial waste, etc.
2. Water conservancy such as anti-seepage, leakage blockage and reinforcement of river, etc.
3. Municipal projects such as underground project, subway, planting roof, etc.
4. Landscape garden such as artificial river, bottom lining, damp-proof, etc.
5. Mine industry such as bottom lining and anti-seepage
6. Traffic facilities such as road foundation and anti-seepage of subway and culvert.
7. Agriculture such as anti-seepage of ditch, channel, reservoir, pool and irrigation system.
Product Technical Standard :
No. | Item | Test Value | ||||||
0.75mm | 1.0 mm | 1.25 mm | 1.5 mm | 2.0 mm | 2.5 mm | 3.0mm | ||
1 | Minimum Density(g/cm³) | 0.939 | ||||||
2
| Tensile Property | |||||||
Strength at yield,N/mm | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
Strength at break ,N/mm | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
Elongation at yield,% | 12 | |||||||
Elongation at break,% | 700 | |||||||
3 | Tear Resistance N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
4 | Puncture Resistance N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
5 | Stress Crack Resistance, hrs | 300 | ||||||
6 | Carbon Black Content, % | 2.0-3.0 | ||||||
Carbon Black Dispersion | 1 or 2 | |||||||
7 | Standard OTI Min | 100 | ||||||
High Pressure OTI Min | 400 | |||||||
8 | Impact Cold Crack at -70°C | Pass | ||||||
9 | Water vapor permeability (g.cm/cm2 .s.Pa) | ≤1.0×10-13 | ||||||
10 | Dimensional Stability (%) | ±2 | ||||||
Geomembrane Show:
Geomembrane Workshop show:

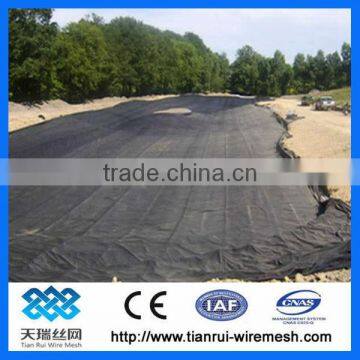

Geomembrane Application Show:
Geomembrane Loading Container:
We are Geomembrane manuacturer in China, if you have any need, please feel free to contact me.
