Polypropylene Biaxial Geogrid With CE Certificate
- XINGANG
- T/T L/C D/P D/A Credit Card
You May Like
-
Lowest Biaxial Geogrid Price, PP Biaxial Geogrid With CE Certificate
-
Biaxial PP Geogrid,15kn~40kn/m (CE Certificate )
-
Biaxial Geogrid BX1100 for Base Reinforcement
-
Road Construction Material Biaxial Geogrid With CE
-
Polypropylene Biaxial Geogrid, PP Biaxial Geogrid
-
Biaxial bx Geogrid, Polypropylene Biaxial Geogrid
Product Details
| Place of Origin | Hebei, China | Brand Name | Tianrui | |
| Model Number | TGSG-02 | Material | Other, Plastic, PP |
Product Description
Specifications
Polypropylene Biaxial Geogrid with CE Certificate1. Material: PP
2. Tensile strength:15 -50kn/m
3. Width: 1-6m
4. CE
Polypropylene Biaxial Geogrid with CE Certificate
Biaxial geogrids are made of macromolecule polymer by the process of being stretched out, formed into lamella, punched regularly and then longitudinal and transverse elongated. They have much higher longitudinal and transverse tensile strength. These structures can supply alinking system to soil, which be used broadly to enable the permanent bearing capacity of roadbed.
Biaxial Geogrid Features:
1. high tension resistance.
2. high plane torsion resistance modulus.
3. good creep resistance and stable chemical nature.
4. high mechanic damage resistance.
5. reduce filling thickness, improve bearing capacity.
Biaxial Geogrid Application:
1. road, railways, airports.
2. packing area, dock goods yard.
3. soil slope, mine, gallery.
Biaxial Geogrid Specification:
Spec Item | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 |
Longitudinal Tensile Strength ≥(KN/m) | 15 | 20 | 30 | 40 | 45 |
Transverse Tensile Strength≥(KN/m) | 15 | 20 | 30 | 40 | 45 |
Longitudinal Elongation≤(%) | 15 | ||||
Transverse Elongation≤(%) | 13 | ||||
Longitudinal Strength at 2% Strain ≥(KN/m) | 5 | 7 | 10.5 | 14 | 16 |
Transverse Strength at 2% Strain ≥(KN/m) | 5 | 7 | 10.5 | 14 | 16 |
Longitudinal Strength at 5% Strain ≥(KN/m) | 7 | 14 | 21 | 28 | 32 |
Transverse Strength at 5% Strain ≥(KN/m) | 7 | 14 | 21 | 28 | 32 |
Remark | Roll Length:50m Roll width:1~6m | ||||

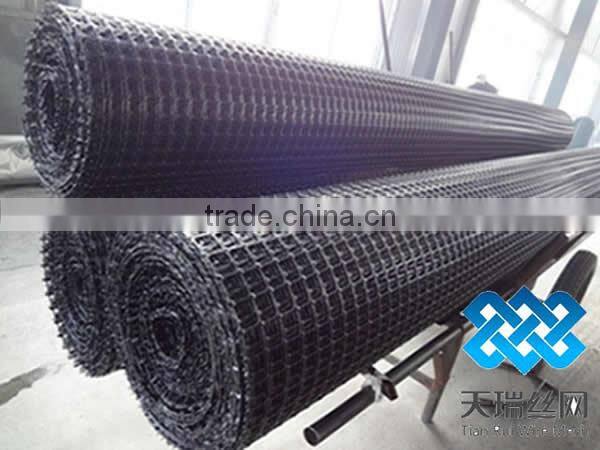

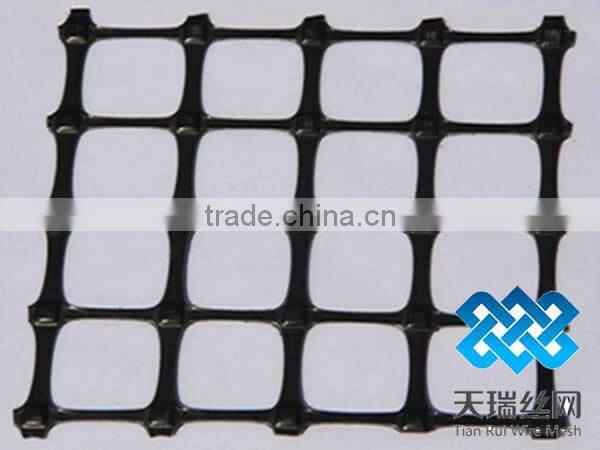

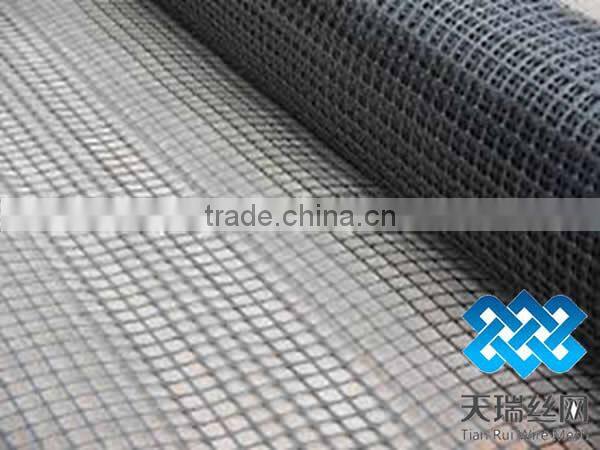

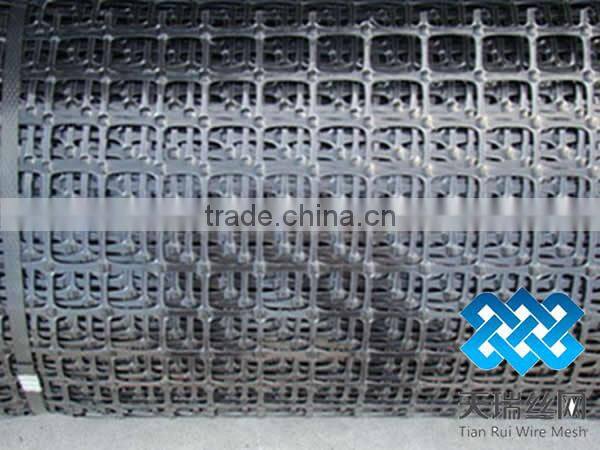

Biaxial Geogrid Show:

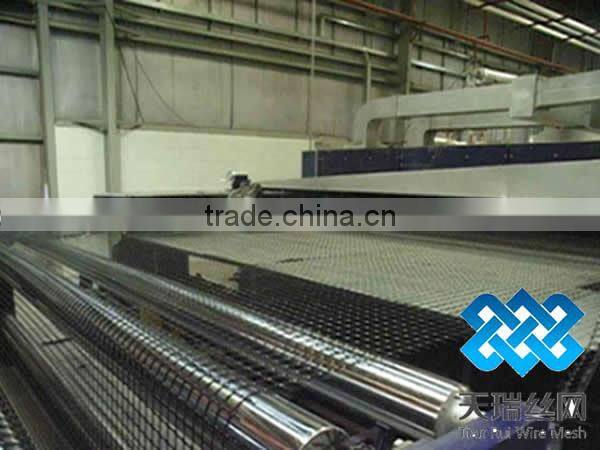

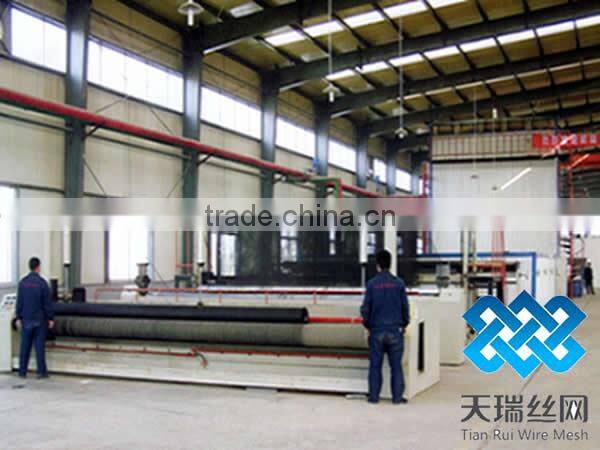

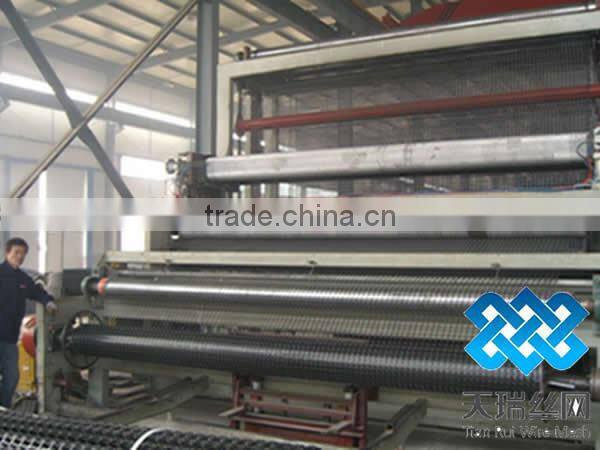

Biaxial Geogird Workshop:

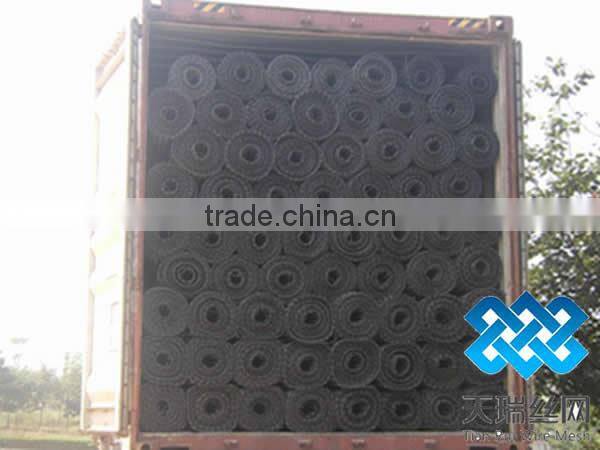

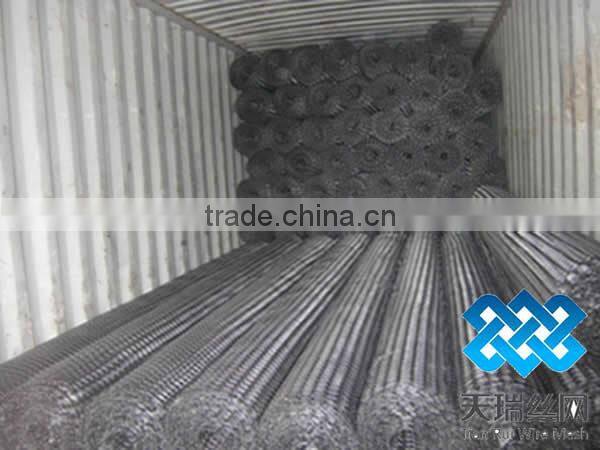

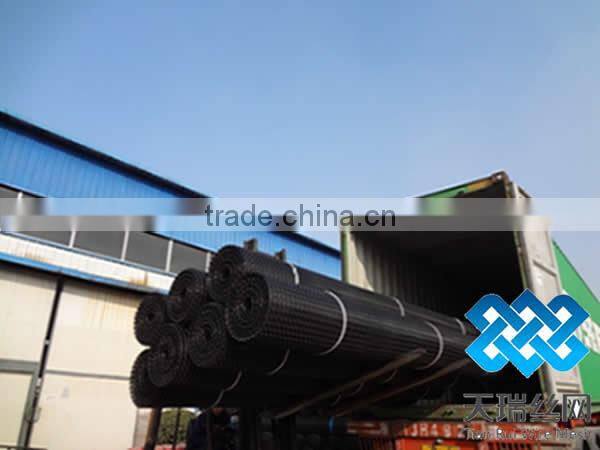

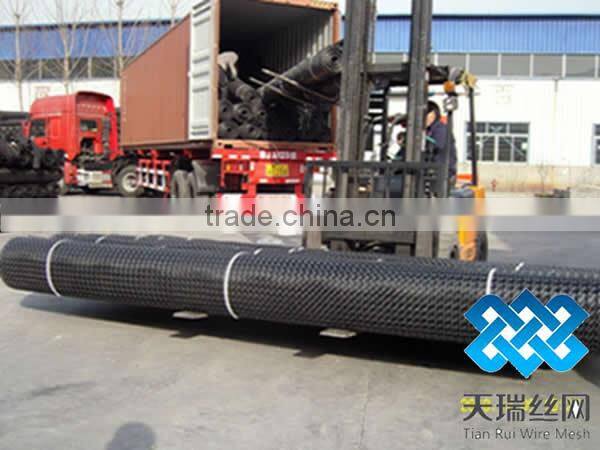

Biaxial Geogird Loading Container:

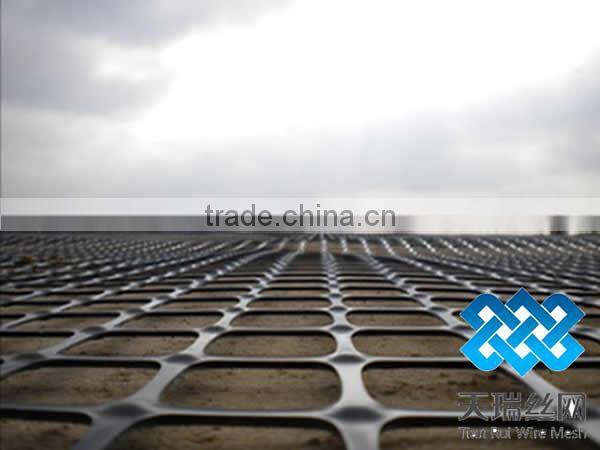

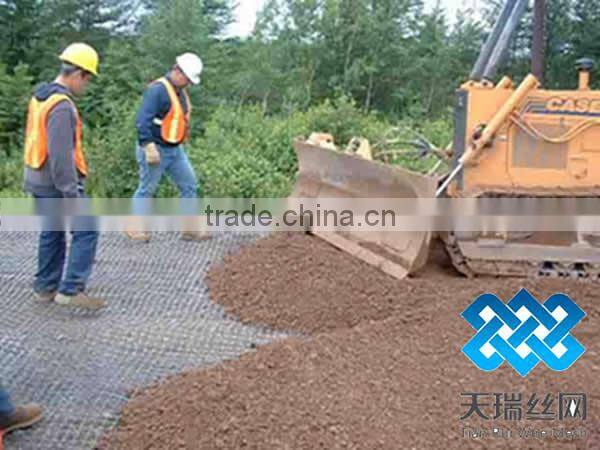

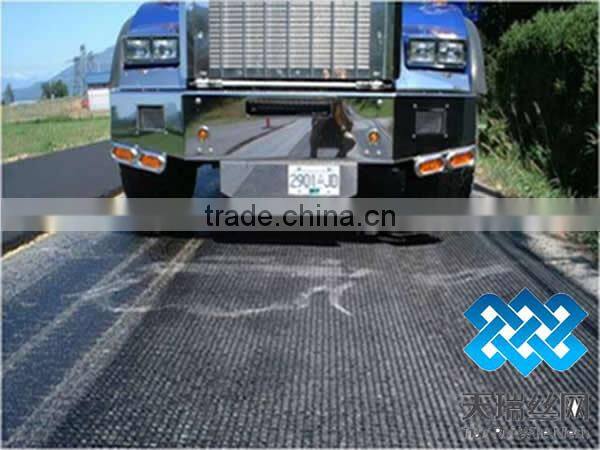

Biaxial Geogrid Application:
We are Biaxial geogrid manufacturer in China, if you have any need, please feel free to contact me.
