Building Material Expanded Metal Mesh 20*20

FOB Price

US$ 15 - 28.5 / Piece

200 Pieces(Min. Order)

Port xingang
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS	Grade	Aluminum, stainless steel. Galvanized iron
Thickness	0.5mm-6mm	Place of Origin	Hebei, China
Brand Name	tianrui	Model Number	yld12-11
Type	Steel Plate	Technique	Cold Rolled
Surface Treatment	Galvanized	Application	Other, Protecting Mesh
Special Use	Silicon Steel	Width	0.5-2m
Length	4m

Product Description

Specifications

1.Sheet thickness:0.5-6mm
2.Aluminum stainless steel Galvanized iron
3Variety:small medium and heavy
4Shape:diamond hexagonal

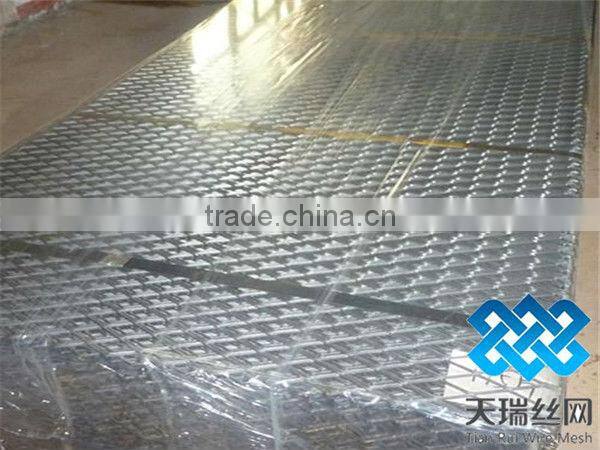

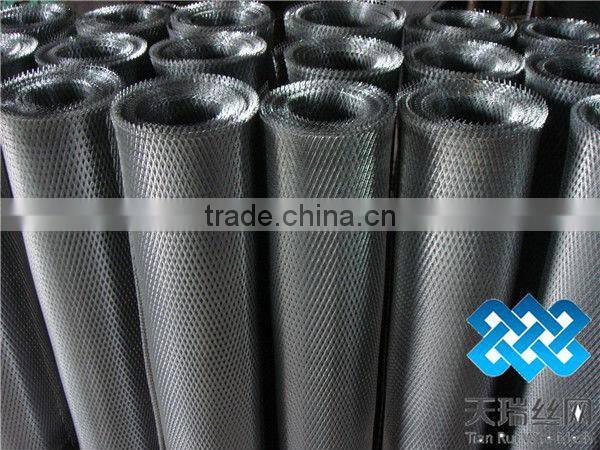

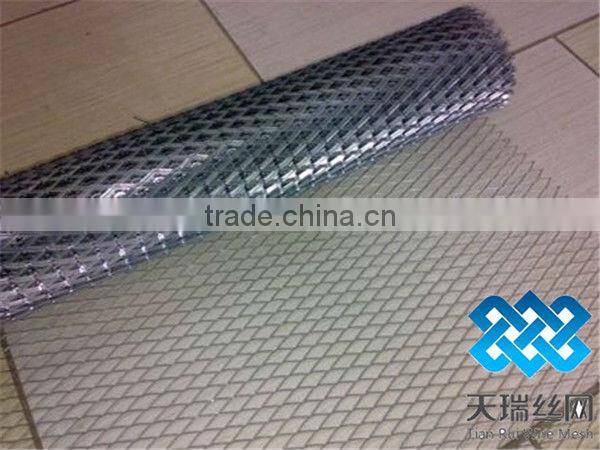

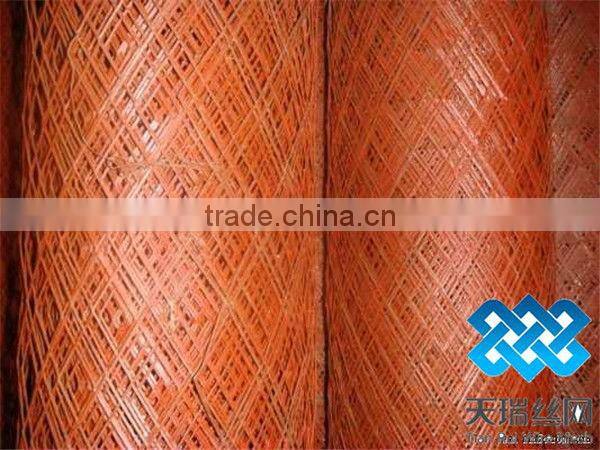

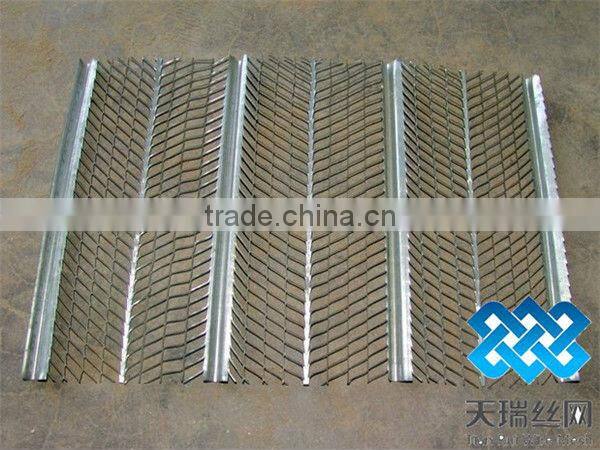

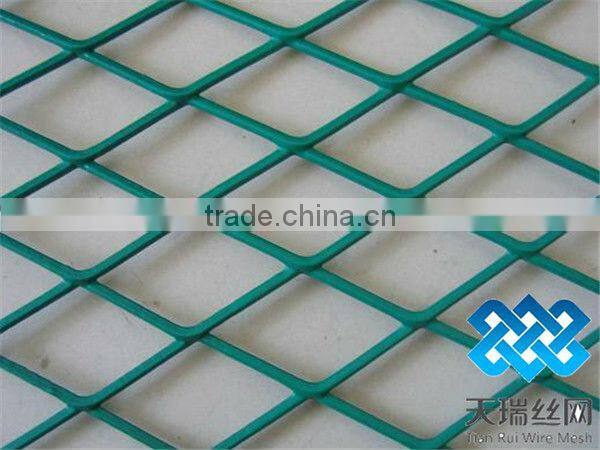

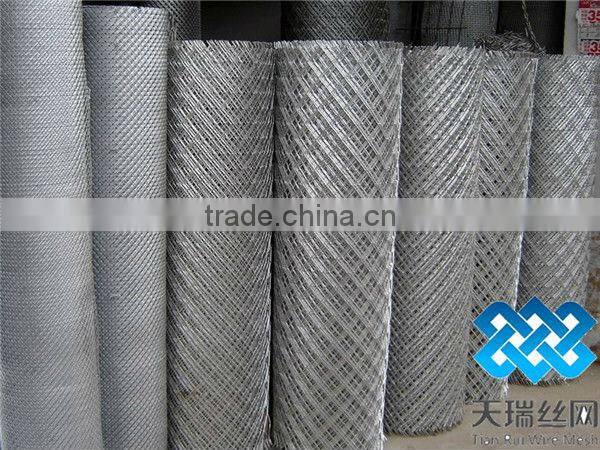

Expand metal mesh

Material:

ordinary plate rolling,galvanized plate,aluminum plate,steel plate,Ti plate,Ni plate.
Our products with high quality.

Variety:

small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

Use:

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

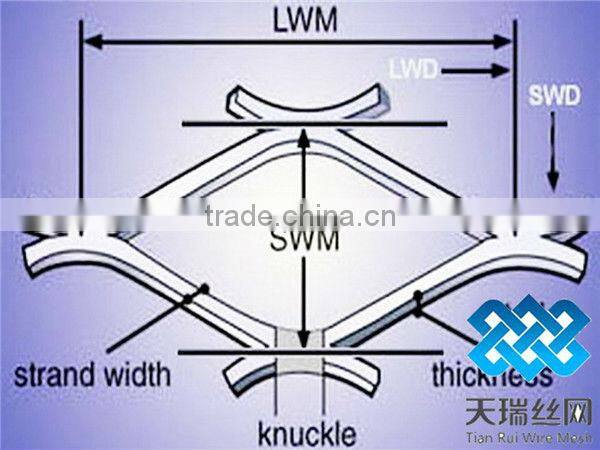

Sizes:

•Long way of mesh: TB: 12.5-200mm
•Short way of mesh: 5-80mm
•Thickness: d: 0.5-8mm
•Expanded metal mesh at length from 600-4000mm and width from 600-2000mm

Specification :

specifications				width	length	weight
mesh	distance	distance	strip(mm)	(m)	(m)	(kg/m2)
thickness(mm)	short(mm)	long(mm)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

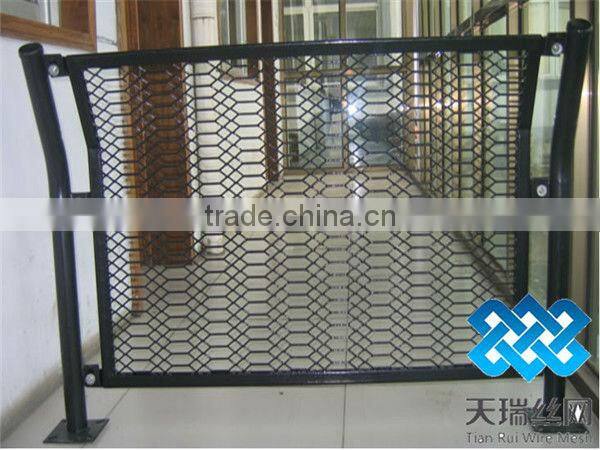

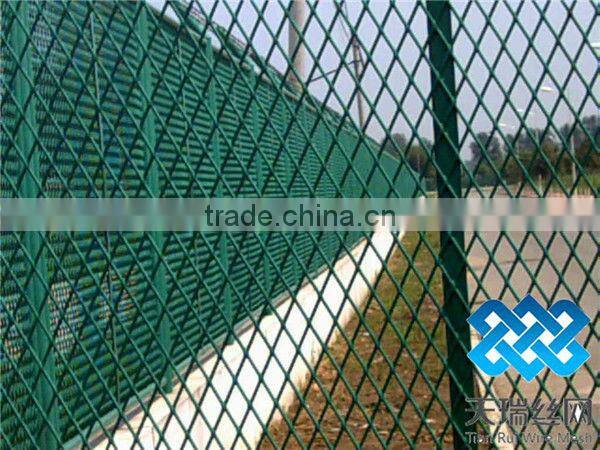

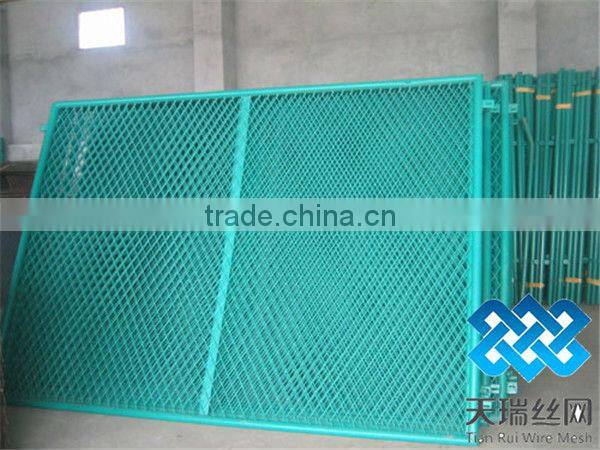

Application :

Welcome to send inquiry to me :
