Crimped Wire Mesh Made in China

Specifications

Crimped wire mesh

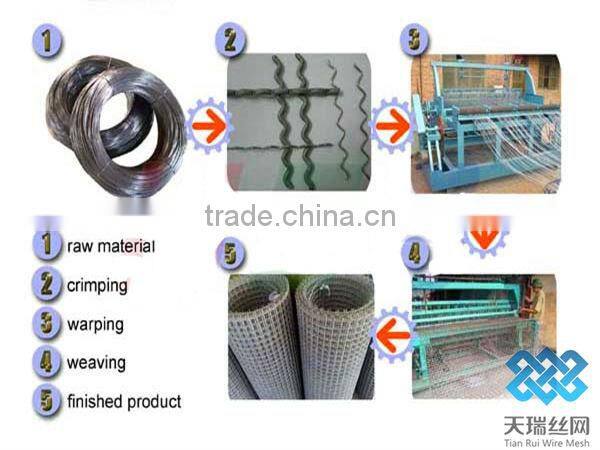

Production Processing:

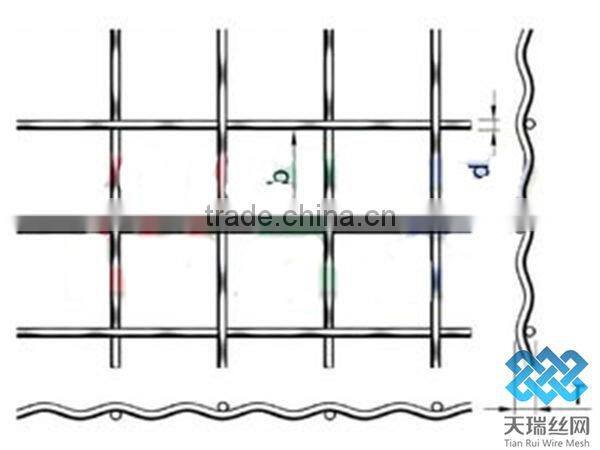

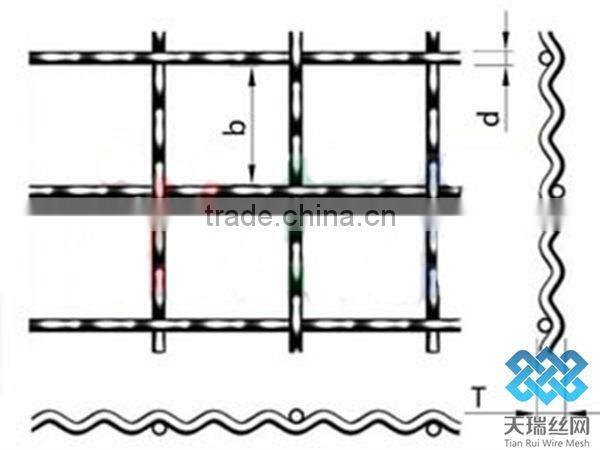

1.Plain crimped mesh

Characteristics of plain crimped mesh:1) Warp wire and weft wire are of equal size.2.) Evenly crimped in warp and weft, providing a rigid construction.3) screening operation in small and intermediate size.

b stands for mesh opening;d stands for wire diameter;T stands for mesh thickness.

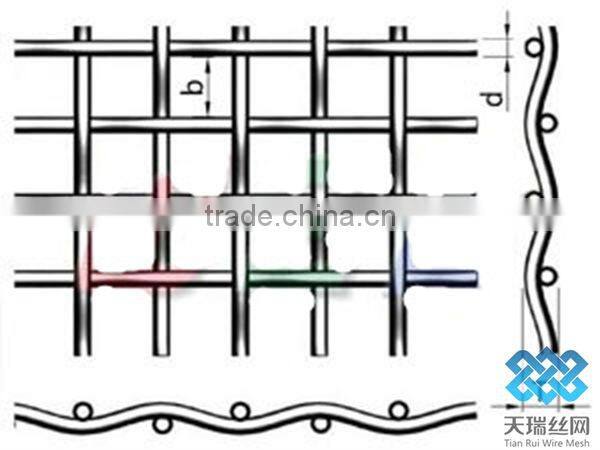

2.Lock crimped mesh

Characteristics of lock crimped mesh

1) Warp wire and weft wire are of equal size. Deep crimps lock wires in contact points.

2) the crimping locks offering further assurance of no wire movement.

3) This weave prevents materials from slipping down

b stands for mesh opening;d stands for wire diameter;T stands for mesh thickness

3.Flat top crimped mesh

Characteristics of flat top crimped mesh

1) Crimps are all on underside of screen and provides a smooth and flat surface on top

2) Smooth surface decreases wear between materials

3) wear resistance and accurate mesh opening size.

b stands for mesh opening;d stands for wire diameter;T stands for mesh thickness.

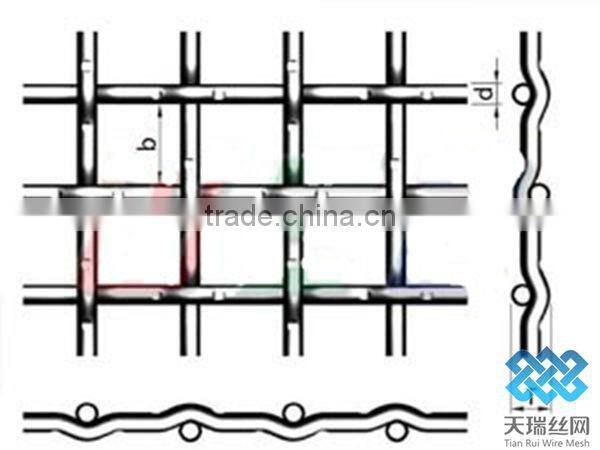

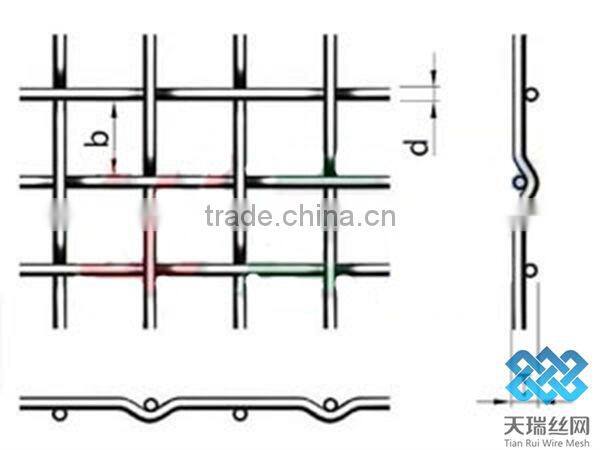

4.Single intermediate crimped mesh

Characteristics of single intermediate crimped mesh

1) the warp and weft wires are crimped with extra crimps or corrugations

2) superior rigidity and greater stability.

3) Inter-crimping assures the proper locking of the warp and weft wires and adds rigidity and accuracy.

b stands for mesh opening;d stands for wire diameter;T stands for mesh thickness.

5. Double intermediate crimped mesh

Characteristics of double intermediate crimped mesh

1) This weave provides superior rigidity and greater stability

2)the warp and weft wires are crimped with every other crimps or corrugations between the points of intersection

b stands for mesh opening;d stands for wire diameter;T stands for mesh thickness.

6. Slot hole crimped mesh

Characteristics of slot hole crimped mesh

1) Economical manufacturing and large opening size.

2) Great open area for increasing flow where binding or clogging can be a problem.

3) Various kinds of slot length can screen materials in various kinds of different length.

b,b1 stands for mesh opening;d stands for wire diameter;T stands for mesh thickness.

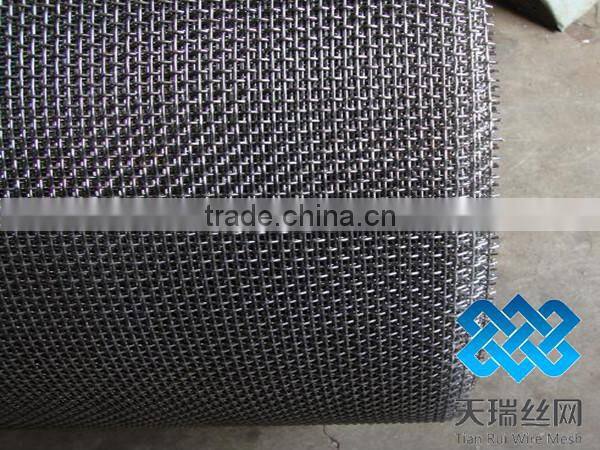

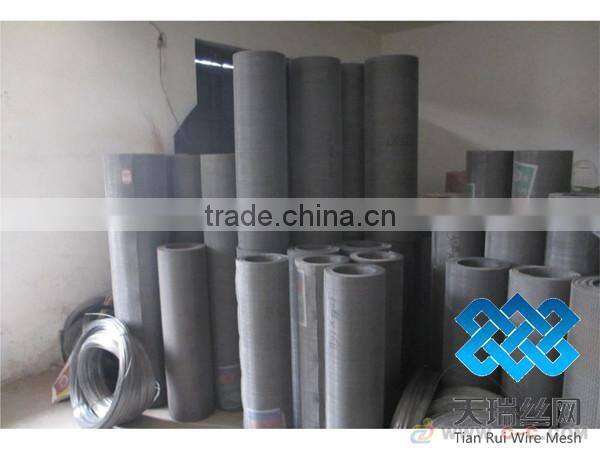

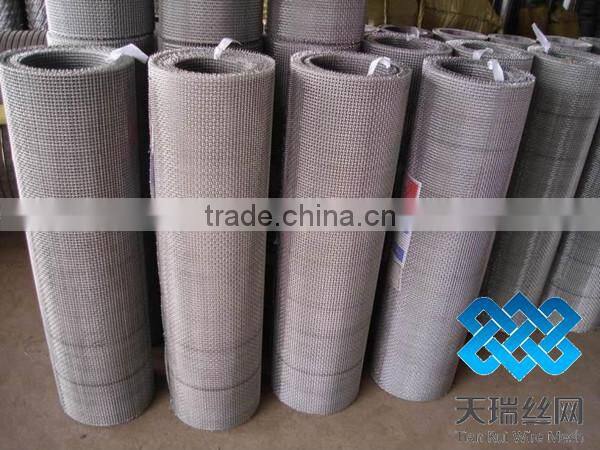

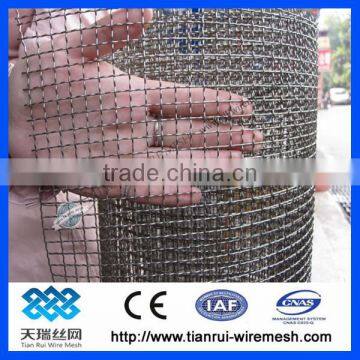

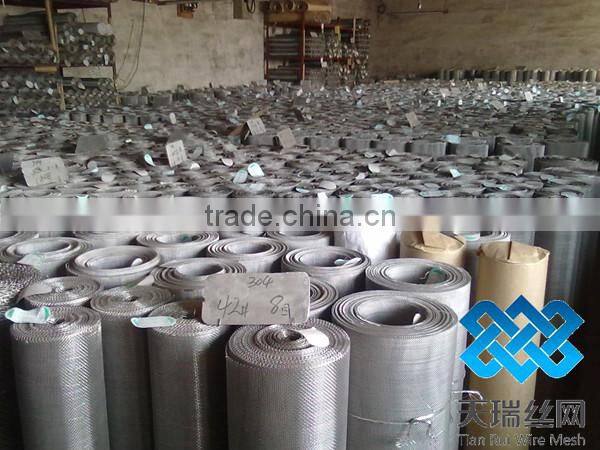

Products Show:
