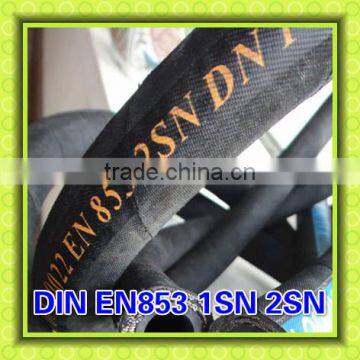

high pressure hydraulic rubber hose DIN EN853 1SN 2SN steel wire braided reinforced rubber hose

Specifications

high pressure hydraulic rubber hose DIN EN853 1SN 2SN steel wire braided reinforced rubber hose

1>SAE 100 R1 AT / DIN EN 853 1SN :

SINGLE WIRE BRAID HOSES (SAE 100R1AT, EN 853 1SN)

rubber hose Tube: Oil resistant synthetic rubber

rubber hose Reinforcement: One steel wire braid

rubber hose Cover: Oil, abrasion and weather resistant synthetic rubber. MSHA approved

rubber hose Temperature Range: -40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).

rubber hose Application: ideally suited for medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.

2>SAE 100 R2 AT / DIN EN 853 2SN :

Tube : Oil resistant synthetic rubber
Reinforceent : two high tensile steel wire layers 2 w
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

3>DIN-EN 856 4SH/4SP Hose :

1. Tube: Oil resistant synthetic rubber.
2. Reinforcement: Four high tensile steel wire spiral layers (4W/S)
3. Rubber  hose Cover: Abrasion and weather resistant synthetic rubber, MSHA accepted.
4. Temperature range: - 40 Centigrade to + 125 Centigrade

4>,Air rubber hose

Be applicable for transfer pressed air and inert gasses in mineral field, civil construction

This kind of rubber hose has excellent air tightness, old-resistance and abrasive-resistance Bursting pressure is not less 4 times than the normal working pressure

Rubber Hydraulic rubber hose Production machine Image:

5>    Rubber hose Package image:

More information pls visit our website .

  Steel wire braided reinforced hydraulic rubber hoses SAE Standard 100 R1 AT R2 AT

Aimee Gao will be always at your service !!

hydraulic rubber hoses high pressure SAE DIN Standard
