Stone Netting

Hexagonal wire mesh is also known by the name of chicken mesh.

Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.

Assortments Available:

it is one kind of zoology fencing.

made by anti-corrosion,high strength and extensibility low carbon steel wire or pvc coated wire ,the low carbon steel wire are different according to the design and demand,usually is between 2.0 to 4.0mm,the tensile strength of the steel wire is 38kg/m2,the zinc coating usually above 245g/m2.

material of gabion mesh :galvanized iron wire

mesh opening:80mmX100mm

wire diameter of gabion mesh :2.5mm

surface treatment:electro galvanized.

box size:0.5mX0.5mX0.5m

advantages:1)flexibility structure can make it accordant to the changing to not destory,it has a better rigidity.

                     2)water permeability,have comprehensiveness to the underwater,movable items and sludge to be sediment.

application:slope retaining,retaining and protecting for foundation excavation,rock landslides,planting,cages,river ,bank,seawall and so on.

stone netting:

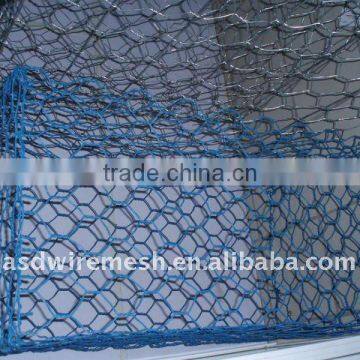

Hexagonal stone netting are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

stone netting Features:
Economic. Just fill the stone into the gabion basket and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation

stone netting applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.

Specification of stone netting:
