2015 Trade Assurance 100% Steel Grating Making Machine

Detailed Description of Steel Grating Welding Machine

1. Introduction of steel grating welding machine

This welding machine adopts technology of power electronic synchronous control, the welding time and separate-welding are combined by digital integrated circuits, the control precision are very accurate, operate smoothly and the welding is very firmly.

 The transfer parts used imported pneumatic element, it has characteristic of pressure uniformity, few malfunction and long service life.

Our grating machine  adopts advanced intermediate frequency(1000Hz) technology.Its instantaneous electric current is very strong and welding time is short,so it can save appox.30-50% power energy than low frequency(50Hz) grating machine.
Moreover in contrast to low frequency(50Hz) grating machine,its matched transformer can even save 40-50% KVA ,so our grating welder is the first choice you invest.

2. Main techical parameter of steel grating welding machine

Measurement(L x W x H):16000mm x 2500mm x 1500mm

Max, pressure: 16 tons

Weight:4T

Rated voltage:380V,50HZ.

Power:300KVA

Welding diameter: Cross iron diameter5-8mm, flat iron 3 x 20mm-5 x 65mm

Welding aperture:warp30mm or 40mm, weft 50mm or 100mm

Welding width:1200mm  / Length 7500mm

Weld material: carbon steel or stainless steel

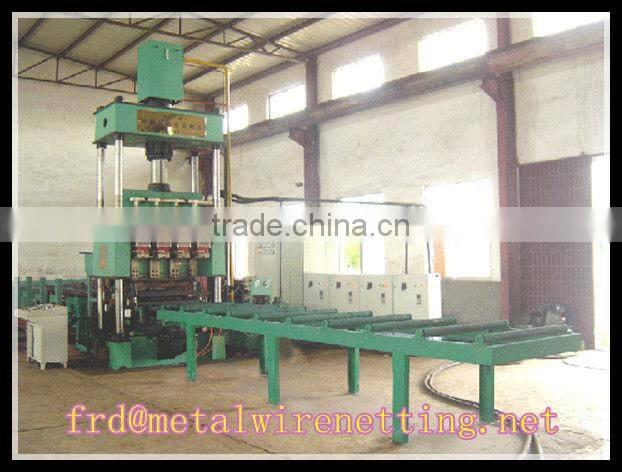

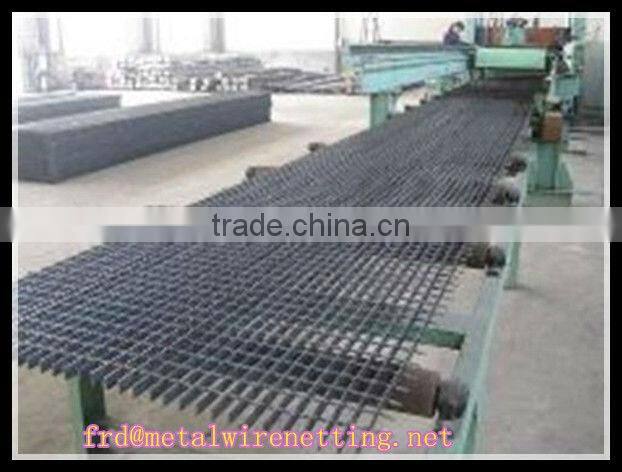

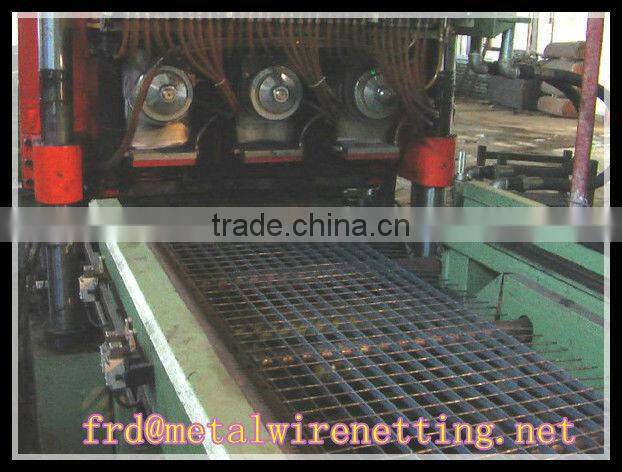

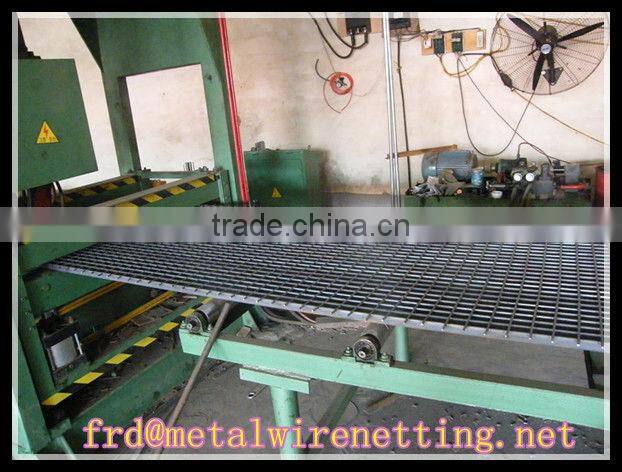

3. Photos of Steel Grating Welding Machine

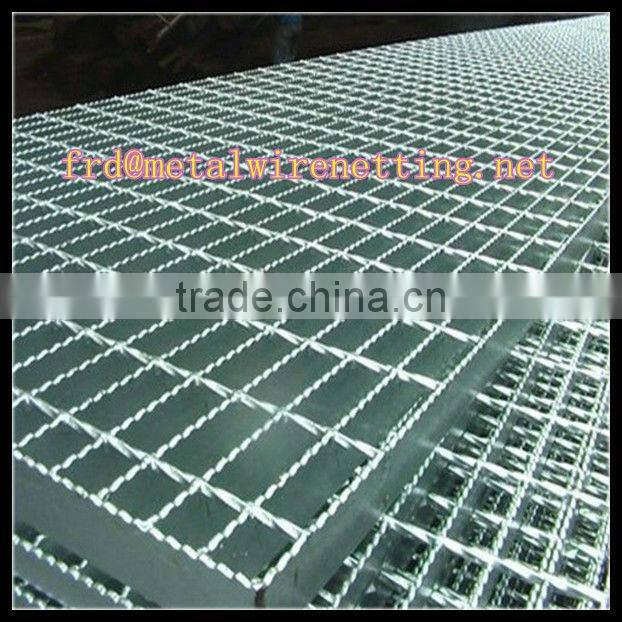

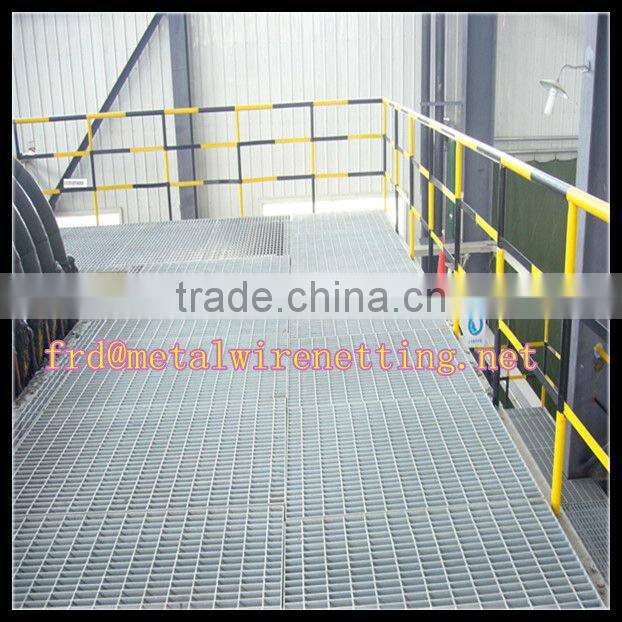

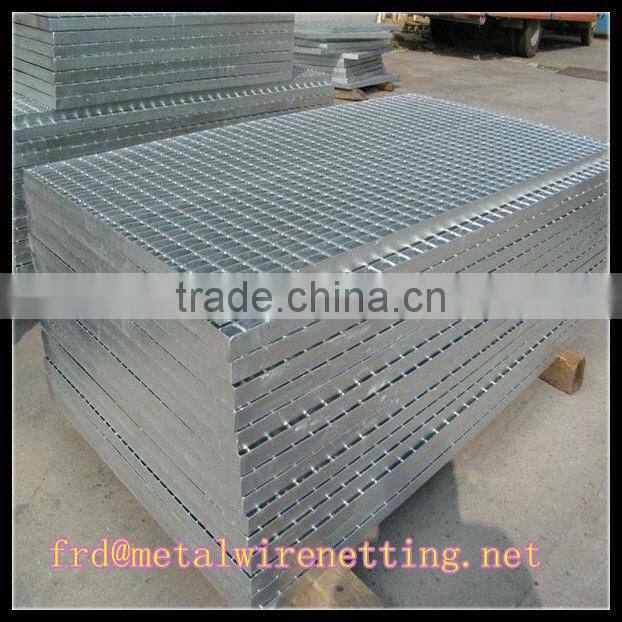

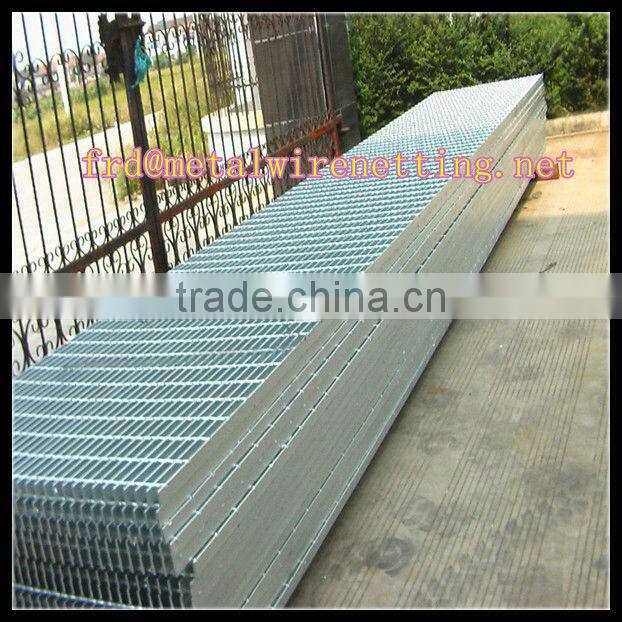

4. Finished products ,Steel Gratings
