Single Wire and Double Wire Making Machine Factory
- Xingang Port Of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic Wire Twisting Machine Prison Fence
-
New Design Barbed Wire | Barbed Wire Making Machine Factory Price
-
Galvanized Wire Double Twisted Barbed Wire Making Machine
-
International Standard Traditional Twisted Metal Barbed Wire Making Machine
-
Fencing Equipment Best Price Barbed Wire Machine With CE
-
Automatic Double Wire Twisted Barbed Wire Making Machine
Product Details
| Place of Origin | Hebei, China | Brand Name | YHT | |
| Model Number | Razor barbed wire making machine machinery | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Description of Barbed Wire Making Machine
Barbed Wire Making Machinery For making 2-strand 4 barbed points barbed wire, high speed in output, rach to 33 linear meters / minute around 140kgs / per hour. Easy operate and maintenance. Same machine for making different wire materials, including stainless steel wires.
Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.

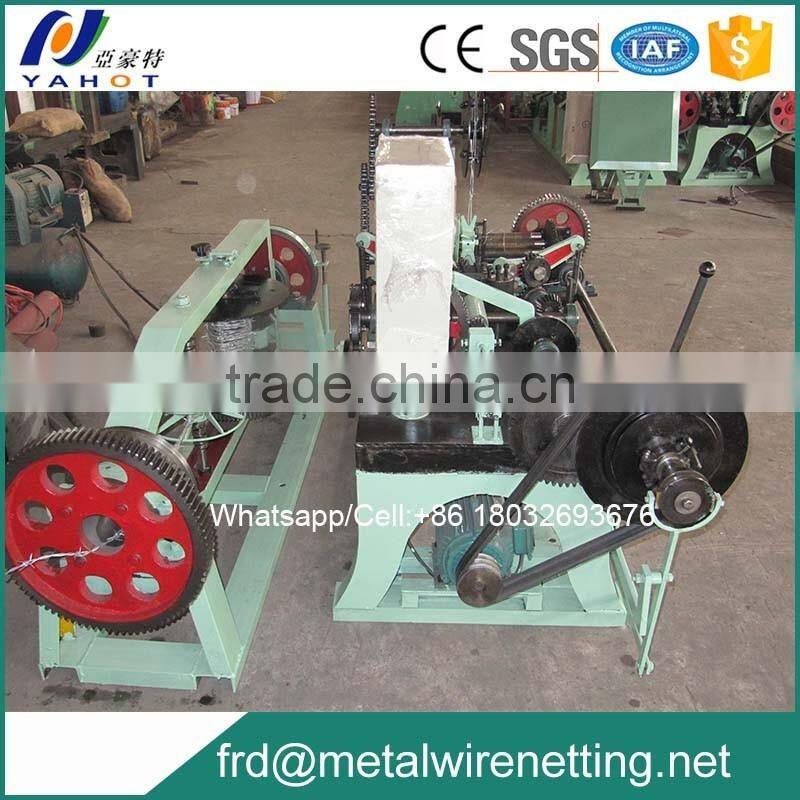

The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding. The machine is coordination of various components ,gentle movement.
The machine is mainly applicable to the production of a variety of multistrand barbed rope. The usage materials should be consistent with stable, flexible operation and reliable.
Item | CS-A | CS-B | CS-C
|
Motor power(kw) | 3 | 2.2 | 2.2 |
Main drive shaft speed(r/min) | 402 | 355 | 355 |
Strand wire diameter (mm) | 2.2-3.0 | 2.2-3.0 | 1.6-2.8 |
Barbed wire diameter (mm) | 1.8-2.2 | 1.8-2.2 | 1.6-2.2 |
Barbed distance(mm) | 76(3")102(4")127(5") | 102(4")127(5") | 102(4")127(5") |
Twist number (pcs) | 3-5 |
| 7 |
Theoretical output(kg/h) | 70 | 40 | 40 |
Total weight (kg) | 1200 | 1000 | 1000 |
Dimension of main part(mm) | 1950*950*1300 |
| |
Dimension of take- twisting part(mm) | 1760*550*760 |
| |
Dimension(mm) |
| 3100*1100*1150 | 3100*1100*1150 |
