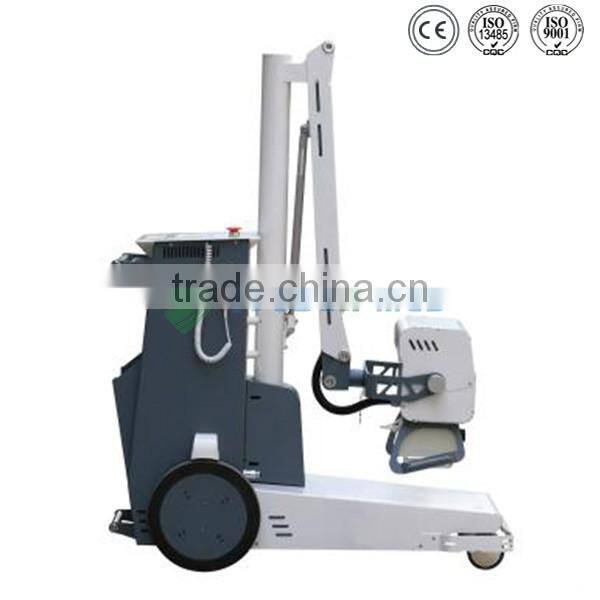

Sturdy Durable and Flexible 3.5kw High Frequency Radiography Mobile Xray Unit

Wooden case for mobile xray unit

sturdy durable and flexible 3.5kw high frequency radiography mobile xray unit

Model: YSX70GM-A

Application:

Not only applied in wards, isolation areas, emergency rooms,etc. for X-ray photographic inspection of the patients who are inconvenient to move or in serious condition, but also can be used as the back-up of mobile X-ray inspection of Radiology.

Features:

With three-dimensional design of the body, the machine is made elaborately with full high-quality steel and high-precision CNC craft. It is elegant in appearance, advanced in structure, user-friendly in design and easy to operate.

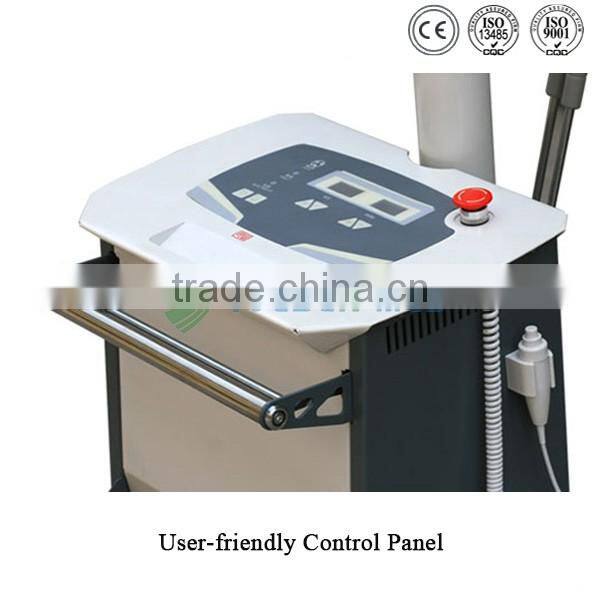

With double-parameter settings, the equipment is easy to set conditions. Controlled by the computer, it has the function of fault self-diagnosis and code real-time display.

With compact and reasonable structure design, the machine is sturdy, durable and flexible.

Structure of rigid connecting-rod brake guarantees longer serving time and better security and reliability

Retractable entirely within the body of the machine, the head has been effectively protected.

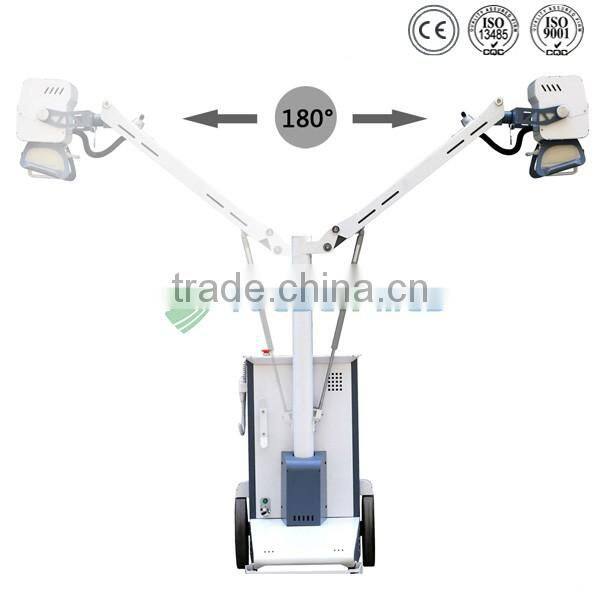

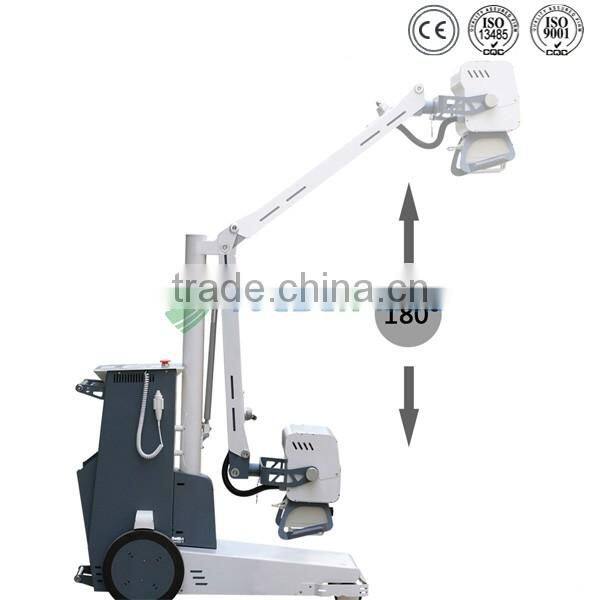

Pillar can be rotated ± 90° around, which makes the bedside operation more flexible and convenient. Arm’s height and left-and-right rotating are controlled by one button. It is supported and locked by the air springs.

Technical parameters:

1. Power supply:

Power voltage:a.c220±22V

Power frequency:50Hz±1Hz

Power Capacity:3.5kVA

Power internal resistance≤0.6

2. Core Unit

Standard output power: 3.5kW.

Inverting frequency: 30kHz

Maximum tube current:70mA

Maximum tube voltage:110kV

Tube Voltage:  40-110kV,1kv step-by-step

Accumulate of current: 0.5mAs~160mAs , 26 grades Adjustable

3. X-ray tube

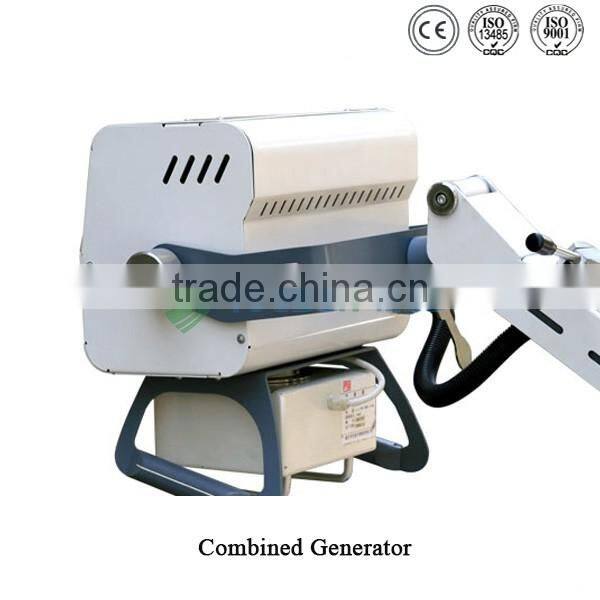

High-voltage combined head of the machine

X-ray tube type: X782D

Focus: 0.6/1.5mm

Maximum heating capacity of anode:5 7 k J ( 7 6 k H U ).

±90° rotation in the same surface,

±90° rotation along x-axis,

+90°~-35° rotation along Y-axis.

Vertical moving range of tube: 525-1796mm.

Vertical stroke of x-ray tube head: 1271mm.

4. Mobile frame.

Arm: ±90° rotation around.

Stand With omni-directional wheel.

5. collimator: photoelectricity positioning.

6. Exposure mode: manual and wireless remote control.
