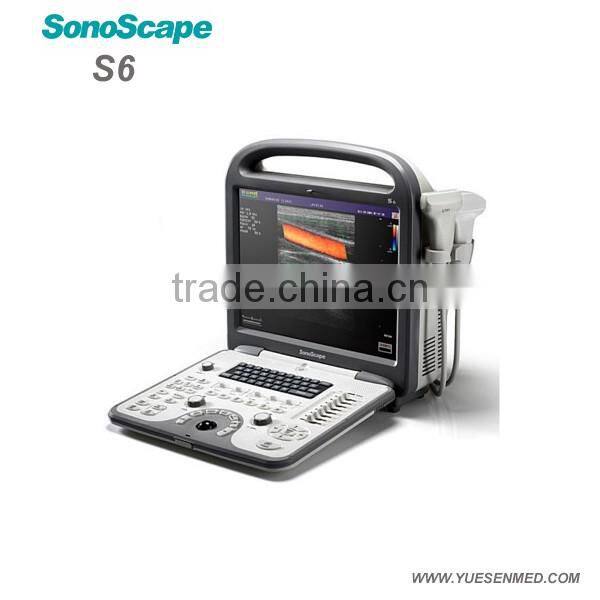

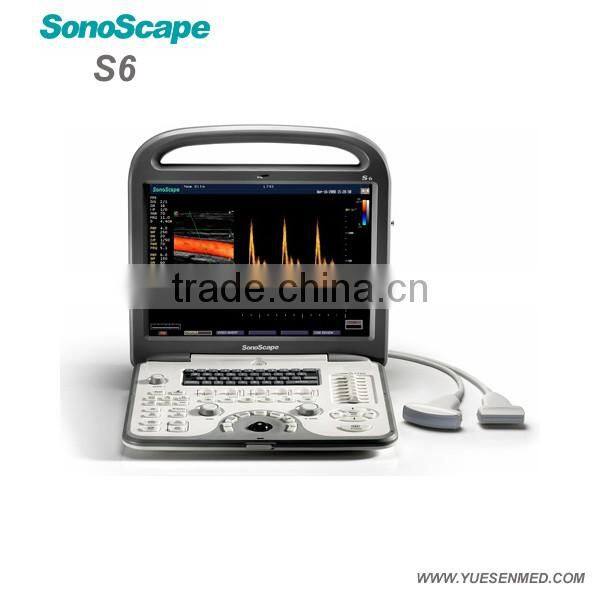

4D Sonoscape S6 Portable Ultrasound Machine Color Doppler

4D Sonoscape S6 Portable ultrasound machine color doppler
wooden case

4D Sonoscape S6 Portable ultrasound machine color doppler

The S6 is a multi-functional hand carried Color Doppler ultrasound system which can be widely used in clinical practice. SonoScape developed this system to satisfy a variety of clinical requirements such as Radiology, Cardiology, OB/GYN, vascular and small parts. With the help of powerful software packages, professional transducers, a built-in battery and other user-friendly designs, the S6 makes it possible for doctors to serve patients anywhere and anytime without compromise.

15 inch LCD monitor

CFM, DPI, PW, HPRF, CW

One button image optimization: M-Tuning

Tissue Harmonic Imaging, Compound Imaging, Trapezoidal Imaging and standard Freehand 3D Imaging
Intuitive interface and user-friendly control panel

Lightweight, built-in Li-ion battery supports continuous scanning for more than one hour without power supply

2 universal sockets for quick switch during scanning

Optional socket extender, allows the S6 to connect with 3 transducers at the same time

2 USB 2.0 ports and DICOM 3.0 port, S-video and VGA ports

USB based software upgrade

The S6 is a comprehensive imaging system engineered to meet today's most demanding needs

Radiology
The S6 can provide professional services for 2B, 4B, CFM, DPI and PW. The Panoramic imaging technology can provide an extended field of view. By gradually moving the probe laterally across the anatomy, a series of images are stitched together to show one continuous image which is wider than the scanning width of the probe, offering a larger reference image for documentation of spatial relationship between structures. A wide range of transducers can be used, including high density linear and convex, L-shape surgical probe etc.

OB/GYN
   --Freehand 3D imaging;
   --200 degrees wide range trans-vaginal transducer with temperature detection
   --Professional and abundant OB/GYN measurement software

Cardiovascular
Provides  professional services for color M, CFM, PW, CW, Stear M mode, TDI etc.  A wide range of transducers can be used, including high frequency linear, high and low frequency phased array and micro-convex array. The S6 also has professional and abundant cardiovascular measurement software.

Urology
SonoScape is in a strong position to maintain a reliable production capacity of transducers. We can meet any demand from the customers. Our Trans-rectal transducers and Biplane transducers are of high quality.

Emerging Applications
The S6 also shows excellent performance in emerging applications, including supporting emergency, ICU/CCU, and anesthesia applications. The imaging technologies used in the S6 will provide you with exceptional imaging quality in both near and far fields, greatly improving resolution and penetration for greater diagnostic confidence. The S6 is compatible with SonoScape’s high frequency linear transducer, that can reach up to 16MHZ. Biopsy guide is also configured.

Others

MSK/Sports medicine, Breast, Angiology and Vascular, etc.

Top selling Portable Sonoscape a5 ultrasound

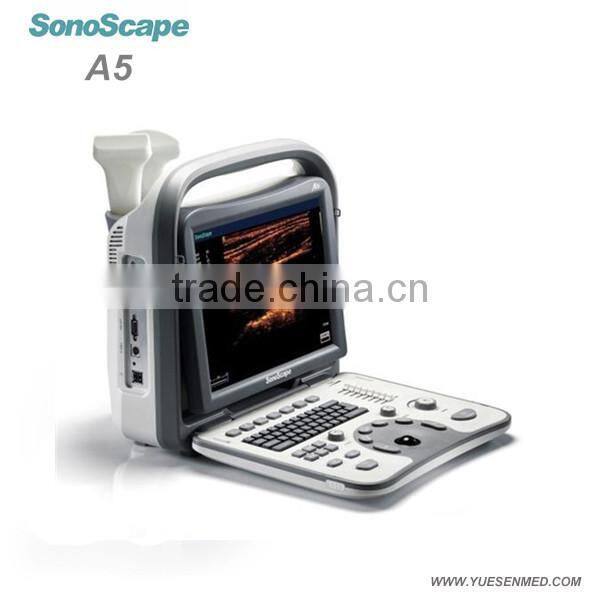

Sonoscape A5 Portable ultrasound machine

A5 is a full digital B/W HCU system with 6kg weight. This reliable and easy-to-use ultrasound scanner can be used in abdominal, OB/GYN, radiology, small parts, and the emerging applications, such as ICU, emergency, anesthesia, MSK, and so on.

 As a Versatile but light weight HCU system, A5 is a reliable and effcient tool for medical professionas anytime and anywhere

Comprehensive application: general, Radiology, OB/GYN, Vascular, Urology, Anesthesia, Emergency, ICU, Physiotherapy, MSK, Pediatric, etc.

Super documentation abilities: USB storage,PDF reports,AVJ,JPEG,Dicom.etc

PROBE Transducers OPTIONS:

Curved probe(Abdominal Ob/Gyn) C351( 2-6 MHz)C543( 3-8 MHz)
Linear Probe(Vascular,small parts)L773( 5-11 Mhz)1012( 6-13 Mhz)L663V( 4-9 Mhz)
Micro-Curved probe(Transvaginal)V4( 4-9 MHz)
Micro-Curved probe(Cardiology)C312( 2-5 MHz)C612( 4-9 MHz)EC2( 4-9 MHz)

Endocavity Probe

STANDARD CONFIGURATION

A5 main unit.
12" non-interlaced non-flickering LCD monitor.
Two standard active transducer connectors.
THI (Tissue Harmonic Imaging).
1G build-in flash storage.
Two USB ports.
Measurement and calculation software.
One probe which is from convex probe, linear probe,endocavity probe and micro-convex probe.

OPTIONAL ACCSSORIES

Needle-guided bracket.
One-to-two transducer convertor.
Footswitch.
Mobile trolley.Suitcase
