Mobile Color Doppler System 3D 4D S11 Sonoscape Echography

standard export package for S11 Sonoscape echography

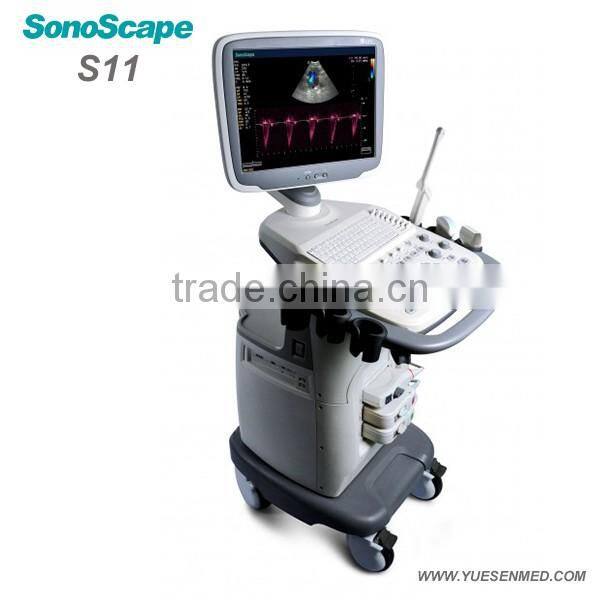

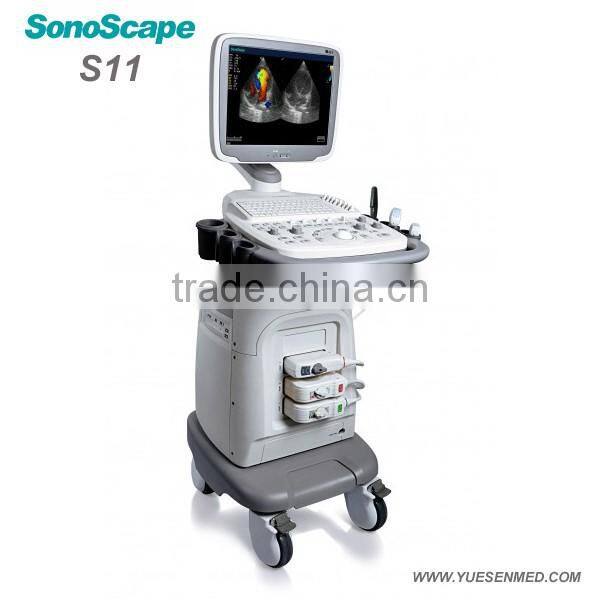

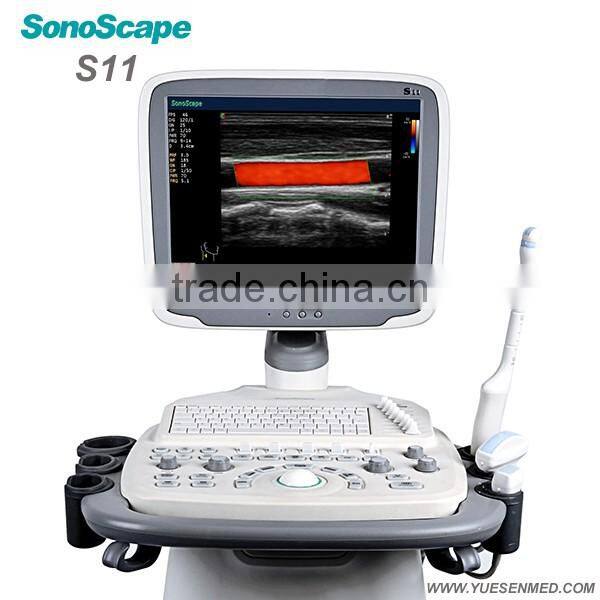

Mobile color Doppler system 3D 4D S11 Sonoscape echography

Model:S11

Feature and benefit

The S11 is SonoScape's trolley color Doppler system which is a value choice beyond your expectations but not your budget. It redefines price and performance with practical design. As an easy-to-use ultrasound system, the S11 is integrated with a new software platform, especially optimized for smooth workflow and convenient operation. The system will speed up the exam process and simplify file management .

15 inch high definition LCD monitor with articulating arm
Compact and agile trolley design
Three active transducer sockets available for a wide range of applications
Duplex, Color Doppler, DPI, PW Doppler, tissue harmonic imaging, μ-scan speckle reduction

Compound imaging, Trapezoidal imaging
Customized settings based on your own working style
Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB 2.0,
HDD, DVD and PDF report
Complete DICOM system: Save, Storage, Commitment, MPPS, Print, Worklist, advanced file transmission/management;

The S11 will help you diagnose quickly and easily. SonoScape's speckle reduction technology used in the S11 will enhance the image acquisition and increase diagnostic accuracy. The new patient file management software will enhance the operational workflow. User-definable pre-sets and shortcut keys will help you work in your own style. Panel and keyboard layout are designed to allow greater functionality for the operator. The powerful new platform provides a seamless experience for all users.
S11 offers comprehensive data storage, transmission solutions and intelligent data management. It also offers easy access to customize the settings according to your own preferences. Smart patient file management makes it easy to retrieve patient image and data at any time.
The S11 encompasses value, features and ergonomics

Various Diagnostic Applications
The S11 can be used in all general applications, including Abdomen, Obstetrics, Gynecology, Small parts, Muscle-skeletal, rheumatology, Vascular, Urology, Cardiology etc. Access to a wide range of compatible transducers, including, Convex, Micro-convex, Transvaginal, Transrectal, Linear, Intraoperative, Phased array, 4D Volumetric transducers etc.

Professional OB/GYN Clinical Solutions
Due to the S11’s supreme performance during strict tests, it has become favored among customers both at home and abroad. Complete Scanning modes, outstanding 2D performance, sensitive blood flow, freehand 3D and volume 4D imaging technology, endow the S11 with the best package for all applications in its class, especially women's healthcare. The S11 can ensure an excellent 2D image with advanced transducer techniques, including Quad B mode, convenient AFI measurement, endocavity transducer with wide scanning angle and temperature detection. The specially designed biopsy can guide a wide range of transducers.S11’s 3D/4D acquisition can enable a strong emotional connection for  expectant mothers.

Specialized OB/GYN software package enables better quantification and calculation.
   --Obstetrical: GS, CRL, BPD, HC, AC, FL, CER, OFD, Fibula, AA, etc.
   --Gynecological: UT-L, UT-H, UT-W, Cx, EN-T, AFI, OV L/H/W, etc.
   --Measurement Methods: Hadlock, Jeanty, Kurtz, Hansmann, Nelson, Tokyo, etc.
   --EFW Measurement Methods: WEI/SAB, Shepard, Hadlock, Hansmann, etc.

Reliable Color Doppler System
   --Imaging modes: B, M, Color, Power, PW, CW (optional)
   --Main technologies: Spatial compound imaging, Panoramic imaging, Anatomic M
   --Mode, Freehand 3D Imaging, 4D Imaging (some of them are optional.)

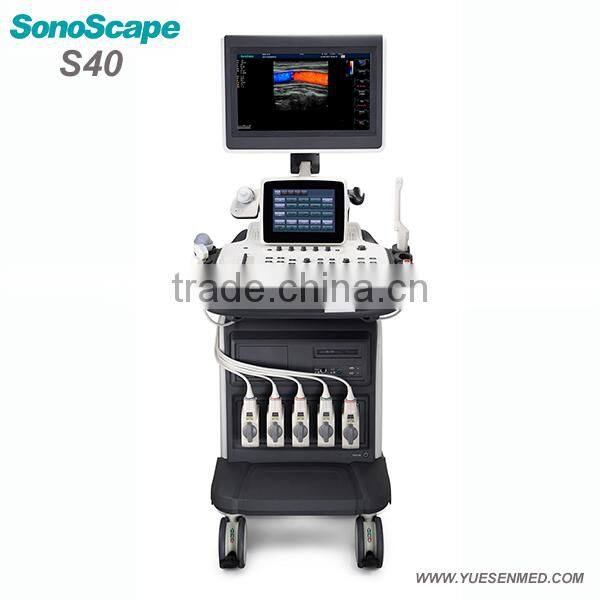

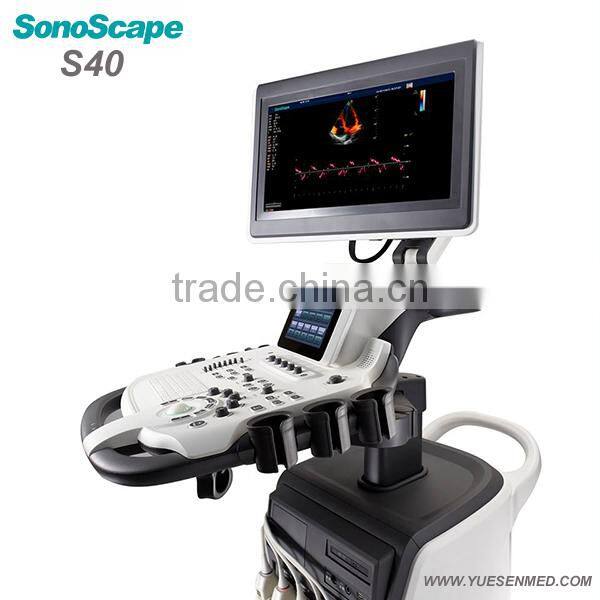

SonoScape high-level products color doppler trolley 3D 4D ultrasound machine

Model:S40

features and benefit
Through years of continuous innovation, development, and by giving priority to our customers’ requirements, SonoScape is proud to release its new generation, high-level ultrasound product, S40. Based on  a revolutionary new platform, combining SonoScape's core imaging technologies and sleek ergonomic design, the S40 represents the new standard of SonoScape S series products.  This elevates imaging performance to a record level and satisfies even the most demanding clinical requirements, significantly expanding the value of ultrasound.

19 inch widescreen
10 inch smart interactive graphical Touch Screen
High Resolution Monitor
          -- High definition 1024*768
          --Wide viewing angle for 170°
Four-way Articulated Arm with lock, vertical and horizontal rotation
Fully adjustable and rotating Control Panel
User-oriented multinational language input keyboard
Gel Warmer and Endocavity Probe Holder
5 Transducer Sockets plus one special connector for Pencil Probe
Full range of Transducers configured with latest technologies
Patient-oriented File Management System.
Flexible user-defined functions
Customized one button functions
Optional Wi-Fi and Blue Tooth functions
Full patient database solution:DICOM3.0, AVI/JPG, USB2.0, HDD,DVD,PDF report
Premium Platform with Perfect Work Flow


S40 is committed to providing doctors with exceptional imaging quality in both near and far fields, greatly improving resolution and penetration for greater diagnostic confidence.

u-Scan
u-Scan Technology uses real-time image processing algorithms to eliminate speckle and noise artifacts, enhancing tissue margins and borders by correcting discontinuity between different regions. Thus allowing improved visualization of real tissue information. It can also automatically adapt the acoustic velocity in different regions to improve the resolution and contrast.

Spatial Compound Imaging
Spatial Compound Imaging utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection. Configured with SCI technology, the S40 is ideal for superficial and abdominal imaging with better clarity and improved continuity of structures.

Pulse Inversion Harmonic Imaging
The harmonic signals are fully preserved without degradation of the acoustic information. Makeing it possible for the S40 to take high-level detailed images and improve contrast resolution by reducing noise and clutter in the visualization of subtle lesions, small parts, vascular and so on.

Auto-Adaptive Imaging Processing
This technology used in the S40 can automatically adapt the acoustic velocity in different regions to improve the resolution and contrast.

Powerful, professional measurement tools allow you to give an accurate and quick diagnosis. The measurement packages of the S40 are comprehensively applicable to  cardiology,OB/GYN,radiology,anesthesiology,musculoskeletal department etc. The high-level ultrasound diagnosis systems provide excellent solutions for both adults and pediatrics. You can make clinical decisions with greater confidence and  expand your practice in new directions.

Cardiology Application
Professional cardiac transducers
--TEE Probe (adults and pediatrics)
--High Frequency Phased Array
--Low Frequency Phased Array
--Micro-convex
Powerful cardiac software

Anatomic M Mode
This advanced cardiac technology features three cursors which can be set at any position and angle simultaneously. The S40 offers the best approach to reducing time-per-patient, while maintaining diagnostic precision in addition to the standard cardiac features, acquiring all information even in hard-to-scan situations with difficult heart positioning.

Stress Echo
Stress echo is the combination of 2D echocardiography with a physical or pharmacological stress, which can determine how the heart muscles respond to stress and is mainly used to diagnose and evaluate coronary artery disease. The S40’s stress echo package comes with a fully integrated and easily programmable interface that can be customized to fit your needs. These features are to help deliver a streamlined workflow for wall motion scoring and reporting.

Tissue Doppler Imaging (TDI)
The Tissue Doppler Imaging in the S40 can provide velocities and other clinical information on myocardial functions. Facilitating clinical doctors when analyzing with recorded motions in different parts of the patient’s hear for comparison.

Intima-Media Thickness (IMT)
Automated measurement of the Intima-Media Thickness of the carotid artery wall is a widely-used function. What distinguishes the S40 is that it provides instant and accurate Mean and Max index at the touch of a single button.


The S40 provides superior endovaginal imaging as well as excellent fetal imaging for both 2D and 4D acquisitions. The S40 is a comprehensive imaging system engineered to meet today's most demanding needs, from deep abdominal, vascular to superficial small parts.

Obstetrics & Gynecology Application

Real-time 3D (4D)
Thanks to increased physical channels, high frame rate and advance technologies, the 4D imaging of the S40 delivers smooth movement of fetus and offers comprehensive 4D acquisition, data rendering, and post-processing functionality.

C-Xlasto elastography
SonoScape provides the S40 with a new method to support the physician in assessing tissue elasticity. The differences in tissue response are detected and visualized in real-time by the elastography algorithms through different graphical representations, which can be particularly helpful in analyzing breast, thyroid and musculoskeletal structures.

Panoramic Imaging
The S40 provides real-time panoramic imaging for bulky organs and masses for ease of measurement and diagnostic efficiency. Rapidly generating accurate information on the position of lesions.

Trapezoid Imaging
Enlarging the field of view by 30%, trapezoidal imaging can enhance the scanning capability for large lesions.

Radiology Application

Full range of transducers
Including Convex, Linear, Endocavity, L-shape intraoperative probe,etc.
A wide frequency range

Complete imaging technology for 3D 4D ultrasound machine

The vision that drives your constant development and provides excellent care to patients is the same vision that goes into the S40 from SonoScape.

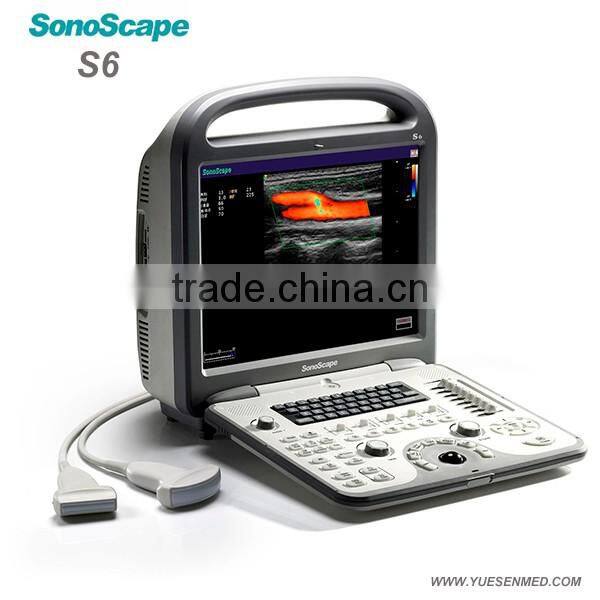

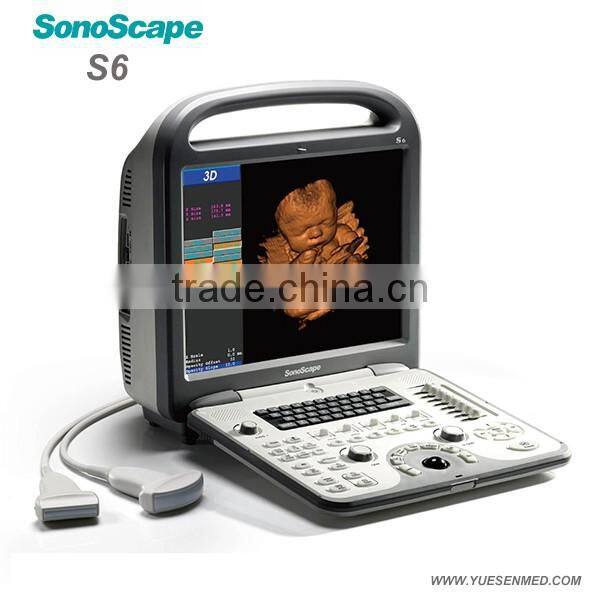

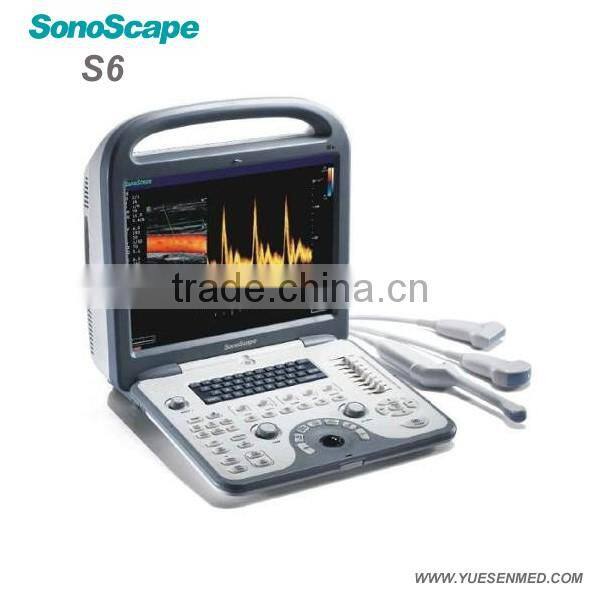

SonoScape Panoramic imaging technology color doppler portable ultrasound equipment

model:S6

The S6 is a multi-functional hand carried Color Doppler ultrasound system which can be widely used in clinical practice. SonoScape developed this system to satisfy a variety of clinical requirements such as Radiology, Cardiology, OB/GYN, vascular and small parts. With the help of powerful software packages, professional transducers, a built-in battery and other user-friendly designs, the S6 makes it possible for doctors to serve patients anywhere and anytime without compromise.

15 inch LCD monitor

CFM, DPI, PW, HPRF, CW

One button image optimization: M-Tuning

Tissue Harmonic Imaging, Compound Imaging, Trapezoidal Imaging and standard Freehand 3D Imaging
Intuitive interface and user-friendly control panel

Lightweight, built-in Li-ion battery supports continuous scanning for more than one hour without power supply

2 universal sockets for quick switch during scanning

Optional socket extender, allows the S6 to connect with 3 transducers at the same time

2 USB 2.0 ports and DICOM 3.0 port, S-video and VGA ports

USB based software upgrade

The S6 is a comprehensive imaging system engineered to meet today's most demanding needs

Radiology
The S6 can provide professional services for 2B, 4B, CFM, DPI and PW. The Panoramic imaging technology can provide an extended field of view. By gradually moving the probe laterally across the anatomy, a series of images are stitched together to show one continuous image which is wider than the scanning width of the probe, offering a larger reference image for documentation of spatial relationship between structures. A wide range of transducers can be used, including high density linear and convex, L-shape surgical probe etc.

OB/GYN
   --Freehand 3D imaging;
   --200 degrees wide range trans-vaginal transducer with temperature detection
   --Professional and abundant OB/GYN measurement software

Cardiovascular
Provides  professional services for color M, CFM, PW, CW, Stear M mode, TDI etc.  A wide range of transducers can be used, including high frequency linear, high and low frequency phased array and micro-convex array. The S6 also has professional and abundant cardiovascular measurement software.

Urology
SonoScape is in a strong position to maintain a reliable production capacity of transducers. We can meet any demand from the customers. Our Trans-rectal transducers and Biplane transducers are of high quality.

Emerging Applications
The S6 also shows excellent performance in emerging applications, including supporting emergency, ICU/CCU, and anesthesia applications. The imaging technologies used in the S6 will provide you with exceptional imaging quality in both near and far fields, greatly improving resolution and penetration for greater diagnostic confidence. The S6 is compatible with SonoScape’s high frequency linear transducer, that can reach up to 16MHZ. Biopsy guide is also configured.

Others
MSK/Sports medicine, Breast, Angiology and Vascular, etc.

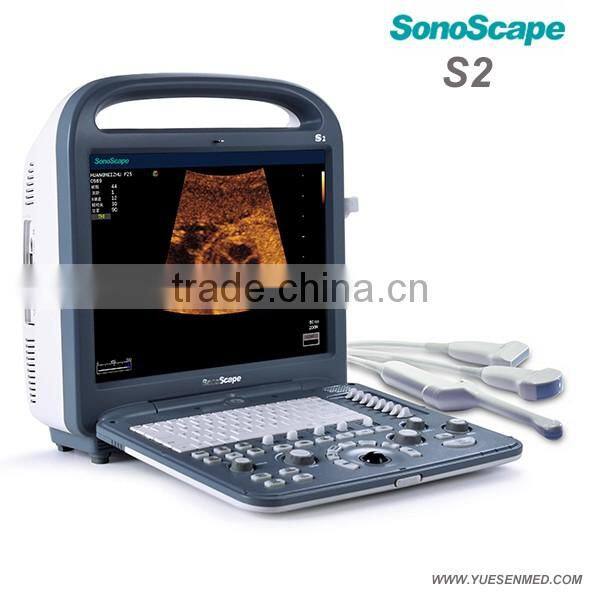

Obstetrical Gynecological Urological Musculoskeletal Craniocerebral real 3d ultrasound color doppler

Model: YSB-S2

Main features of 3D portable ultrasound machine

1.General Specification

The high performances of the YSB-S2 stem from the advanced ultrasound Doppler imaging technologies that include full digital beam-former, wide dynamic range, multi-beam processing, etc.The ergonomic user-friendly design enables user to customize the system according to the specific application needs, and the graphic exam icon assure you familiar with the system in few minutes.

2. Advanced Technologies
PC platform
Full Digital Beam Processing
Compound Imaging
Tissue Harmonic Imaging
Panoramic Imaging
Trapezoid Imaging
4D Imaging
Dicom 3.0
Intelligent Upgrade
Graphic Exam Icon

3. Standard Configuration for 3D portable ultrasound machine
B Mode
Multi-B Mode
M Mode
Color Mode
DPI Mode
PW Mode
THI Mode
Compound Imaging
Image Processing
Trapezoid Imaging
Cardiac Package
Gynecology Package
Urology Package
Small Part Package
Vascular Package
Orthopedic Package
Dop Auto Trace
Dicom 3.0
Internal Workstation

4. Optional Functions
4D Imaging
CW Mode
Panoramic Imaging
IMT Function
Anatomic M Mode
μ-Scan function

5. Optional Components
Power Adaptor
UPS Power
Biopsy Guide
Color Ink-jet Printer
B/W Video Printer
External DVD Burner
Foot Switch
Special Trolley
Transducer Cable Holder

6. Sweep Width/Angle

7. Scanning Methods
Electronic Convex Sector
Electronic Linear
Electronic Phased Array Sector
4D Automatic Scanning

8. Applications
Small Parts(Thyroid, Brest, Testicles and Superficial)
Abdominal(Liver, Spleen, Kidney, Pancreas)
Vascular(Carotid, Peripheral vessel)
Cardiology
Obstetrical(Uterus, Appendages, Fetus)
Gynecological
Urological
Musculoskeletal
Craniocerebral
Emergency(optional)
ICU(optional)
Anesthesia (optional)

9. Operating Modes
B-Mode
M-Mode
THI-Mode
Color Flow Mode(CFM)
Doppler Power Imaging(DPI)
PW Mode
CW Mode(optional)
Panoramic Imaging(optional)
4D Imaging(optional)
Steer M-Mode(optional)

10. Display Modes
B,Dual B,4B
B+Color,Dual B+Color
B+DPI,Dual B+DPI
M,B+M,Dual B+M
B+PW,Dual B+PW
B+color+PW
B+DPI+PW
B+CW,Dual B+CW(optional)
B+color+CW(optional)
B+DPI+CW(optional)
B+ Anatomic M(optional)
B+ Multi-M(optional)
Panoramic Imaging(optional)
Trapezoid Imaging
Compound Imaging
4D Imaging(optional)

3D portable color doppler ultrasound machine

S11 mobile trolley color doppler equipment ultrasound sonoscape 4d

cheapest Mobile trolley 3D 4D color doppler ultrasound scanner Sonoscape

Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.

 SonoScape 3D 4D 15 inch LCD monitor trolley color doppler echocardiography
