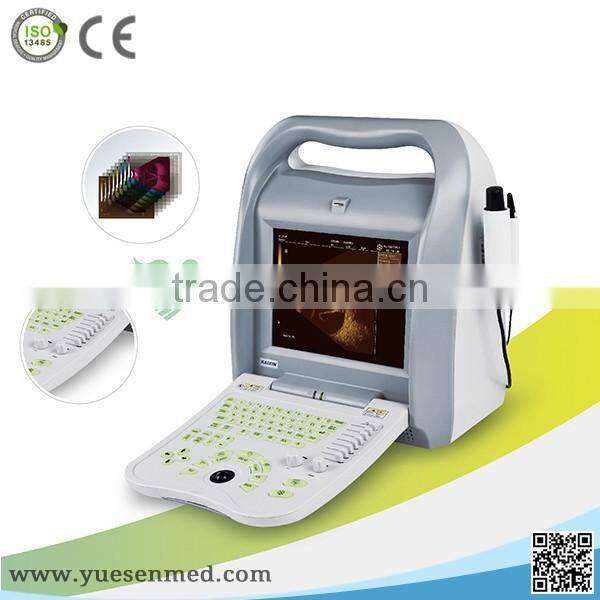

YSODU8 two mode probes medical hospital ophthalmic ultrasound AB scanner

standard export package for ophthalmic ultrasound AB scanner

two mode probes medical hospital ophthalmic ultrasound AB scanner

model:YSODU8

General parameters:

  Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system, make the machine more reliable.

  Menu operation, Language: Chinese/English.

  Double probe sockets: A mode probe: 10MHz, imported probe with fixation light; B mode probe: 10MHz, imported transducer.

  Preset items:

   a)System setting

    (hospital name, mode selection, date/time and its format, probe protection time, help, keyboard sound etc.)

   b)IOL setting

   c)Network setting, DICOM3.0

   d)Password setting

   e)Software upgrade

  Gains range: 0--120dB.

  Dynamic range: 30-100dB, visual and adjustable.

  Gray: 256.

  Intelligent TGC adjustment: 8 segments.

  Build-in D disk: 4GB, save mass data, images, reports, etc.

  Report function: print screen, IOL report, case report with picture, etc.

  Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.

  DICOM3.0 network port, realizing network transmission easily.

  Power supply : AC110/230V -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.

  Net weight.: 8kg.

  Dimension: 400x186x385mm(length x width x height).

  A scan parameter:

  Measuring range:15-35mm.

  Measuring accuracy: ±0.02mm.

  Measuring parameter: ACD, LENS, body Length, axial length.

  Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.

  Measuring Mode: Contact and Immersion, automatic and manual.

  Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.

  Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).

  IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term  save 100 groups of measurement results of A scan.

  A single point measurement

   Magnification: ×1.0,×2.0,x4.0.

   Display Depth: 0~36mm , delayed depth: 0--36mm.

  B scan parameter:

  Scan mode: High accuracy stepping motor drive sector scan.

  Scan Angle: 53°.

  Display Depth: 0~88mm(incl.delayed depth).

  Delayed depth: 25--32mm.

  Gray: 256.

  Frame frequency: 30frames/s.

  depth seletion:8.

  Frame correlation: 4.

  Edge enhancement:4.

  Compression Curve: 8.

  Post-processing: 8.

  Eight Pseudo colors:8 kinds (incl. B/W).

  100 frames permanent image storage.

  Cine loop: 256 frames,can measure the playback image.

  Disk management.

  General Measurement:multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.

Standard configuration:

1. Main unit: 1 pc

2. 10MHz mechanical sector B probe: 1 pc.

3. 10MHz A probe : 1 pc.

4. Calibration cup: 1 pc

Optional configuration:

1. Prager shell for immersion mode

2. Trolley

3. Video recorder

4. Laser printer

5. Foot switch

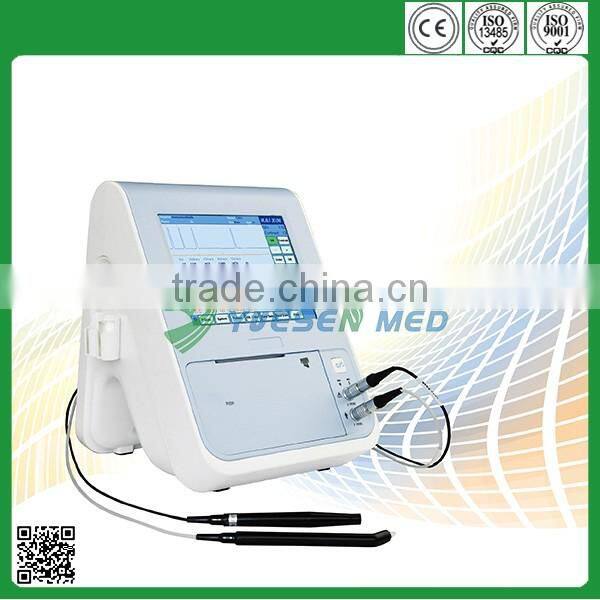

Other model of full digital Ophthalmic ultrasound scanner
