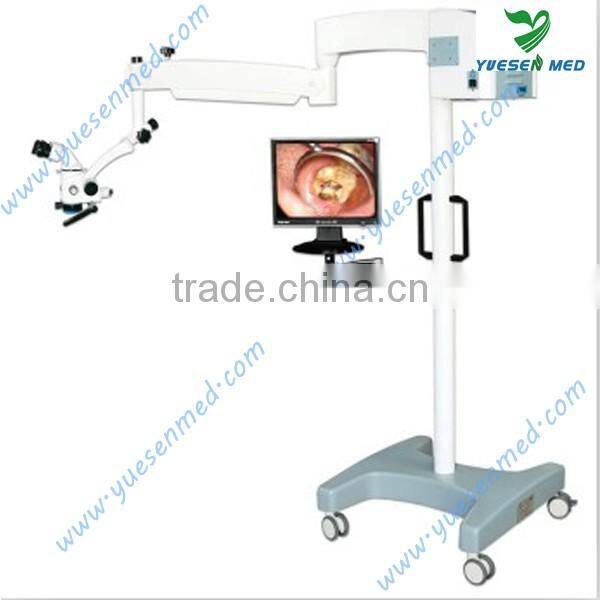

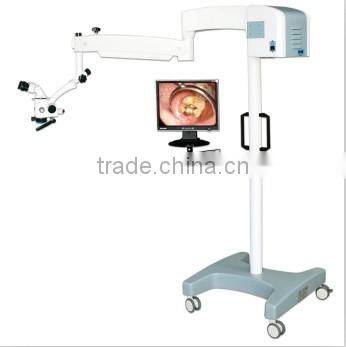

YSLZJ6E hinged surgery barrel biggest flip angle dentistry surgical microscope

standard export package of dentistry surgical microscope

hinged surgery barrel biggest flip angle dentistry surgical microscope

Model:YSLZJ6E

Features:
1. primary mirror the optical the hinged surgery barrel, the biggest flip angle of 180 °
2.With fine focusing the objective lens (adjustable range ≥ 20mm), optional 250mm apochromatic objective.
3. primary mirror with a damping adjustment system, so that the optical lens can be maintained at any location within the moving range.
4.Optical microscope head can be placed on the upper partof the bearing arm, and not affect other surgery performedduring surgery.
5. with an orange and green color filter, can be adjustedthrough the front portion of the pusher bar of the optical fiber.
6. coaxial illumination system, in the front of the instrumentwith the adjustment switch, the brightness of the lighting can be adjusted continuously.
7.Spring arm Optional lighting limit switch, when not carried to that disconnect, especially convenient for the dentist's surgery requires.

Technical parameters:
1.A primary mirror with optical hinge binocular or so before and after any tune pour biggest flipangle of up to 180 °
2.Five-speed drum zoom magnification: 3.4X, 5.1X, 8.3X, 13.5X, 20.5X
3.Field of view diameter: Φ66mm, Φ41mm, Φ26mm No-, Φ16.5mm, Φ10.4mm
4.In eyepiece 12.5X/18B                                                                                           5. large objective 5.lens with fine-tuning of focus, focal length: 250mm (optional 200,300,350,400) Focus range 20mm
6. coaxial cold light source fiber optic lighting, maximum illumination ≥ 60000Lx continuous dimminghalogen or xenon lighting
7. contains orange and green color filters
8.Rack wishbone maximum extension length ≥ 1300mm
9. the rack vertical lift range ≥ 500mm
10. Power: 220V/50Hz or 110V/60Hz

Optional

large objective lens

a beam splitter

external CCD camera interfaces

digital camera system

Digtial interface

High-definition display

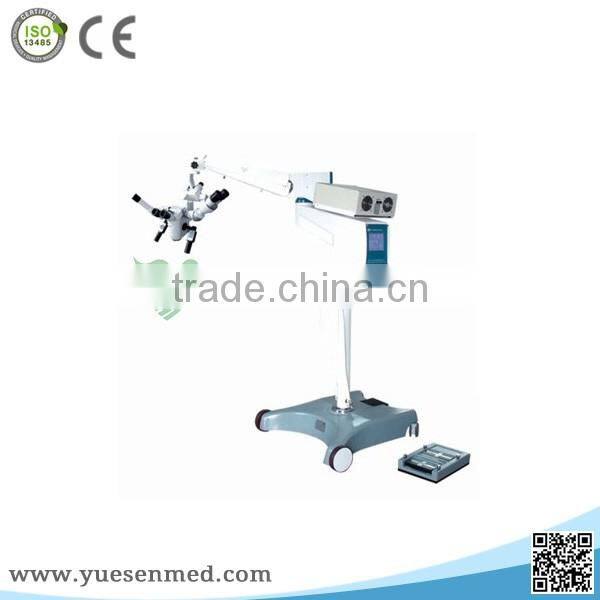

a good stereo-scopic perception dental ENT operation stomatology surgical microscope

Model:YSLZL21

Application:

This product is a high-tech product of the nation's first kind, It's designed with dual scopes of binocular sharing, manipulated of two or three person.

It can also be used for teaching, photographing orthopedics.

The angle between the main and assistant's microscope is 90° . deep cavity operations and examinations. It makes possible for simultaneous and microsurgery in ophthalmology, E.N.T. organial surgery, neurological surgery, the same viewing field and motorized continuous optical system, suitable for super and color video recording purposes.

Feature:
1. The main microscope is in the latest design of tilting binocular tube system with a continuous tilting range of  30-60°. This enables doctors to have the most comfortable body positions when performing various kinds of microsurgical operations.

2. Binocular assistant's microscope synchronizes with the main microscope, with the same light route, magnification viewing field and bearing, both enjoy a good stereo-scopic perception when in observation.

3. Both the main and assistant's microscope all adopt a motorized continuous optical systems, with a zoom rate of 1:5. This system features a clear image a sharp stereo-scopic perception and a remarkable depth of  field, thus satisfying the needs of all kinds of deep cavity operations.

4. The instrument adopts a coaxial internal illumination system which has a great brightness, suitable for deep  cavity operations and examinations.

5. The instrument adopts motorized focusing system which is both convenient and  flexible.

6. The instrument has six movements of degrees of freedom allowing the microscope to be motorized or turned to and from up and down, and side to side. This permits each surgeon a best angle of observation.

Specification:Stomatology surgical microscope
1. Range of the stand's vertical up-down: 500mm
2. Motorized zooming speed: 2r/min
3. The precise focusing range:40mm,aiming speed:2mm/s
4.The range of the microscope’s free movement to and from side to side are all 100°
5.The interpupillary distances of the main and assistant's microscope are all adjustable, Within a range of 55-72mm
6. Cold light source illumination: 15V 15OW, brightness 80000~180000 Lx
7. The maximum stretching length of the stand's horizontal arm: 1200mm
8. The swing angle of the carrier arm: 360°
9. The stand can be equipped with X-Y coupling, with the moving, range of 40mm

Optional:
Beam splitter, single ocular teaching scope, double binocular, intergrated or outside 1/3" CCD video camera and interface,  digital camera system and interface.

used for teaching photographing orthopedics ENT surgical microscope

model:YSLZL11

Application:

This product is a high-tech product which is designed with dual scopes of binocular sharing, manipulated by two or three person.

It can also be used for teaching, photographing orthopedics.

The angle between the main and assistant's microscope is 90°deep cavity operations and examinations. It makes possible for simultaneous and microsurgery in ophthalmology, ENT, organial surgery, neurological surgery, the same viewing field and motorized continuous optical system, suitable for super and color video recording purposes.

Feature:

1). The main microscope is in the latest design of tilting binocular tube system with a continuous tilting range of  30-60°. This enables doctors to have the most comfortable body positions when performing various kinds of microsurgical operations.

2). Binocular assistant's microscope synchronizes with the main microscope, with the same light route, magnification viewing field and bearing, both enjoy a good stereo-scopic perception when in observation.

3). Both the main and assistant's microscope all adopt a motorized continuous  optical systems, with a zoom rate of 1:5. This system features a clear image a sharp stereo-scopic perception and a remarkable depth of  field, thus satisfying the needs of all kinds of deep cavity operations.

4). The instrument adopts a coaxial internal illumination system which has a great brightness, suitable for deep cavity operations and examinations.

5). The instrument adopts motorized focusing system which is both convenient and flexible.

6). The instrument has six movements of degrees of freedom allowing the microscope to be motorized or turned to and from up and down, and side to side. This permits each surgeon a best angle of observation.

Specification:

1). Range of the stand's vertical up-down: 500mm

2). Motorized zooming speed: 2r/min
3). The precise focusing range:40mm,aiming speed:2mm/s
4). The range of the microscope’s free movement to and from side to side are all 100°
5). The interpupillary distances of the main and assistant's microscope are all adjustable, Within a range of 55-75mm

6). Cold light source illumination: 15V 150W, brightness 80000~120000Lx
7). The maximum stretching length of the stand's horizontal arm: 1200mm
8). The swing angle of the carrier arm: 240°
9). The stand can be equipped with X-Y coupling, with the moving, range of 40mm

Optional:

Beam splitter, single ocular teaching scope, double binocular, integrated or outside 1/3" CCD video camera and interface, digital camera system and interface.
