Marine Refractory Anchor For Sale
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Material | Steel | Design | Other, anchor | |
| Certification | Other, CS GL KR LRRS | |||
Product Description
Marine Refractory Anchor For Sale
|
Produce Range
-We supply various high holding power marine anchors from 100KG to 20,000KG
- We supply various high holding power anchors to be used for ships, fleets, mooring ships, etc.
- Made of heavy grade cast steel to assure the stability, safety and durability in sailling.
- Finish: black bitumen paint or hot dip galvanized
(Complying with customer's requirements)

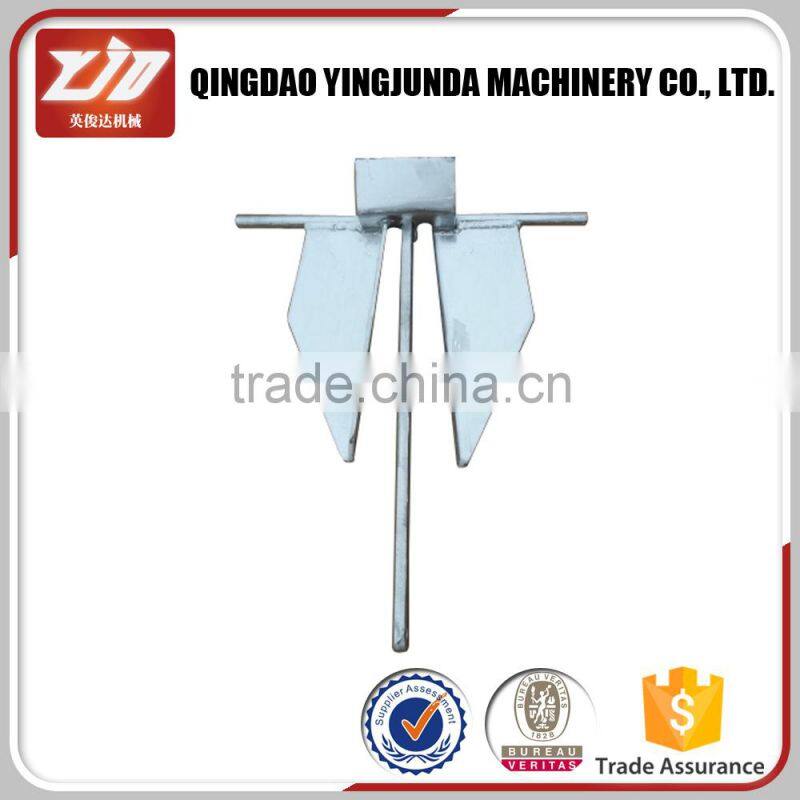

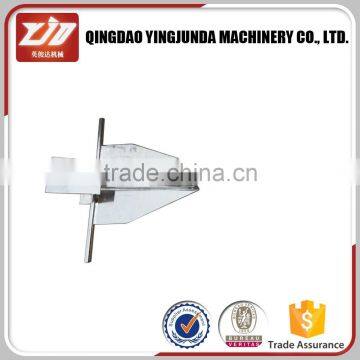

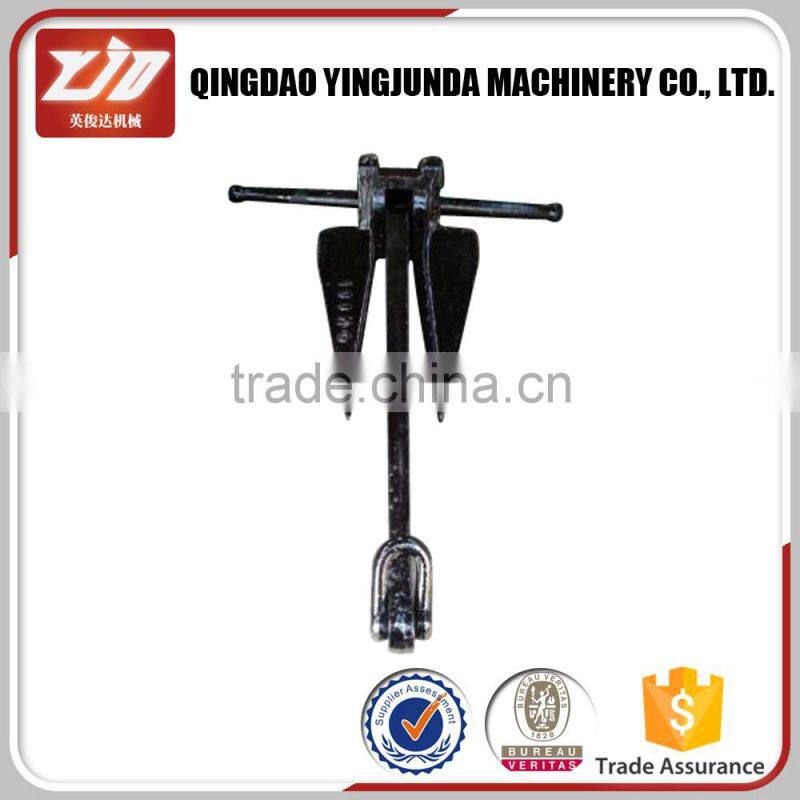

Our Product Pictures
Main Features
Service | Drawings or samples processing/OEM/ODM service provided |
Produce Process | Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery |
Forging Material | Carbon Steel, Alloy steel, Stainless steel |
Standard | ISO, GB, ASTM, DIN, JIS |
Produce Equipment | Friction Screw Press Series, CNC Lathe, Machining Center (Vertical Spindles), CNC Milling Machine, Bench Drilling Machine, Heat Treatment Equipments and so on. |
Surface treatment | Heat treatment, Polishing, shot blasting, Painting, Electro-plating, Chemical Plating, |
Inspection Equipments | Metallurgical analysis, tensile strength tester, Hardness tester, Altimeter, Scale Micrometer, pressure tester, etc. |
Delivery | Samples are sent by express Large quantity products delivered to customer by sea or according to your request |
Terms of payment | T/T or L/C |

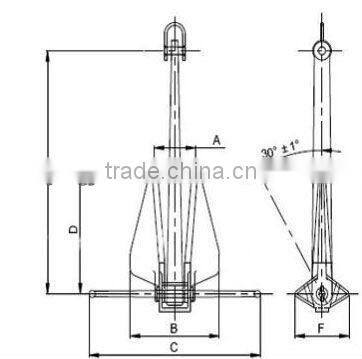

Design Structure
Technical Parameter
DANFORTH ANCHOR | ||||||
Anchor Weight | A | B | C | D | E | F |
kg | mm | mm | mm | mm | mm | mm |
20 | 130 | 280 | 540 | 370 | 690 | 170 |
25 | 135 | 300 | 580 | 400 | 740 | 185 |
30 | 148 | 330 | 620 | 430 | 790 | 200 |
40 | 160 | 360 | 680 | 470 | 860 | 220 |
50 | 172 | 390 | 720 | 510 | 940 | 230 |
60 | 186 | 408 | 755 | 535 | 985 | 240 |
75 | 200 | 450 | 830 | 590 | 1080 | 260 |
100 | 216 | 490 | 930 | 640 | 1180 | 290 |
120 | 220 | 505 | 970 | 670 | 1230 | 300 |
125 | 234 | 520 | 1000 | 690 | 1270 | 310 |
150 | 242 | 550 | 1060 | 732 | 1348 | 330 |
200 | 266 | 600 | 1150 | 810 | 1490 | 360 |
250 | 294 | 650 | 1240 | 870 | 1600 | 390 |
276 | 296 | 660 | 1250 | 885 | 1620 | 400 |
300 | 312 | 690 | 1320 | 925 | 1700 | 420 |
400 | 342 | 750 | 1460 | 1010 | 1810 | 460 |
500 | 368 | 800 | 1570 | 1100 | 2020 | 490 |
750 | 414 | 910 | 1800 | 1260 | 2300 | 560 |
1000 | 450 | 980 | 1980 | 1380 | 2540 | 620 |
1250 | 484 | 1070 | 2100 | 1490 | 2740 | 670 |
1500 | 512 | 1120 | 2220 | 1580 | 2910 | 700 |
2000 | 560 | 1130 | 2440 | 1730 | 2850 | 770 |
2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
4000 | 700 | 1420 | 3070 | 2170 | 3590 | 970 |
5000 | 735 | 1482 | 3200 | 2270 | 3840 | 1020 |
6000 | 800 | 1620 | 3500 | 2480 | 4100 | 1100 |
Why choose us?
1. Reliable quality and strict quality control team make you never worry about quality issues.
2. Most competitive price help you get more market shares.
3. Good after-sale service, all questions will be replied within 12 hours.
4. One stop source, all related products requirement can source from us.
5. Fast delivery time, all available shipping ways could be applied, by express, air or sea.
6. Much experiencing in forging part for 40 years history.
Please feel free to call us at any time if there are any questions.
