Home > Products > Ball Bearing > RUBBER SEALED BALL BEARING 6203-10 2RS 6203-5/8-2rs

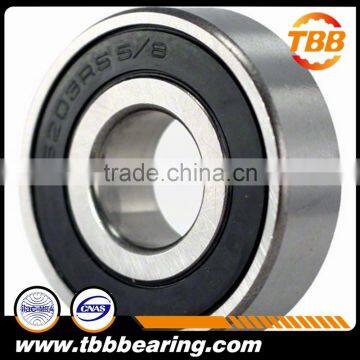

RUBBER SEALED BALL BEARING 6203-10 2RS 6203-5/8-2rs
US$ 0.2 - 99
/ Piece
10 Pieces(Min. Order)
- Shanghai
You May Like
-
Distributor of bearings, wholesale priced bearing
-
High quality thrust ball bearing 51101 and brand according to your requirement
-
Deep groove ball bearing 626Z with plastic for slot machine
-
thrust ball bearing 51102 bearing size chart 511 series
-
Use for Water Pump Thrust Ball Bearing 51103
-
S626zz bearing for car fan with large stock
Product Details
| Brand Name | TBB / OEM | Bore Size | 10, 120 | |
| Outside Diameter | 30, 150 | Model Number | ball bearing 6203-10 2RS | |
| Precision Rating | P0 P2 P4 P5 P6 | Seals Type | Open/ZZ/2RS | |
| Number of Row | Single Row | Place of Origin | Shanghai, China |
Product Description
Product Display
Product Display / Details
Product Parameters
Product Parameters
| Quick Details/ Product overveiw | |
| Structure | Single row deep groove ball bearings |
| Brand Name | TBB / OEM / Be customized |
| Series | 62XX series deep groove ball bearing |
| Seals Type | Z; ZZ; RS; 2RS; RZ; OPEN |
| Ring Material | Chrome Steel/Stainless Steel/Carbon Steel |
| Hardness | HRC60~HRC65 / 304C or 440C / HRC50-55 |
| Steel Pressed Cage | Bending claw form or rivet form |
| Material of Cage | SPCC / Nylon /Brass |
| Surface | Smooth and Antirust |
| Tolerance Grade | GB/T307.1-205 |
| Precision Rating | ABEC1(P0) / ABEC3(P6) / ABEC5(P5) / ABEC7(P4) |
| Vibration/Noise Level | Z1/V1; Z2/V2; Z3/V3 |
| Clearance | C2; C0; C3; C4 |
| Grease /Oil | As your requirement |
| Bearing | Bore(d) | O.D(D) | Width(B) | Chamfer | Load Rating | Ball | Max speed | Weight | ||||||
| No. | mm in | mm in | rmin | parameter | ||||||||||
| mm | Dynamic | Static | No. | Size | Grease | Oil | KG/set | |||||||
| Cr | Cor | mm | r/min | r/min | ||||||||||
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 0.6 | 5.1 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 0.5906 | 35 | 1.3779 | 11 | 0.4331 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 18000 | 21000 | 0.066 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1 | 12.8 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.106 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 1 | 14 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.128 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1 | 19.5 | 11.3 | 9 | 9.525 | 11000 | 13000 | 0.199 |
| 6207 | 35 | 1.3779 | 72 | 2.8346 | 17 | 0.6693 | 1.1 | 25.7 | 15.3 | 9 | 11.112 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 1.1 | 29.1 | 17.8 | 9 | 12 | 8700 | 10000 | 0.366 |
| 6209 | 45 | 1.7716 | 85 | 3.3465 | 19 | 0.748 | 1.1 | 32.5 | 20.4 | 10 | 12 | 7800 | 9200 | 0.398 |
| 6210 | 50 | 1.965 | 90 | 3.5433 | 20 | 0.7841 | 1.1 | 35 | 23.2 | 10 | 12.7 | 7100 | 8300 | 0.454 |
| 6211 | 55 | 2.1653 | 100 | 3.937 | 21 | 0.8268 | 1.5 | 43.5 | 29.2 | 10 | 14.288 | 6400 | 7600 | 0.601 |
| 6212 | 60 | 2.362 | 110 | 4.3307 | 22 | 0.8661 | 1.5 | 52.5 | 36 | 10 | 15.081 | 6000 | 7000 | 0.783 |
| 6213 | 65 | 2.559 | 120 | 4.7244 | 23 | 0.9055 | 1.5 | 57.5 | 40 | 10 | 16.669 | 5500 | 6500 | 0.99 |
| 6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 1.5 | 62 | 44 | 11 | 16.669 | 5100 | 6000 | 1.07 |
| 6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 1.5 | 66 | 49.5 | 11 | 17.462 | 4800 | 5600 | 1.18 |
| 6216 | 80 | 3.1496 | 140 | 5.7087 | 26 | 1.0236 | 2 | 72.5 | 53 | 11 | 18.256 | 4500 | 5300 | 1.4 |
| 6217 | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 2 | 83.5 | 64 | 11 | 19.844 | 4200 | 5000 | 1.79 |
| 6218 | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 2 | 96 | 71.5 | 10 | 22.225 | 4000 | 4700 | 2.15 |
| 6219 | 95 | 3.7402 | 170 | 6.6929 | 32 | 1.2595 | 2.1 | 109 | 82 | 10 | 24 | 3700 | 4400 | 2.62 |
| 6220 | 100 | 3.937 | 180 | 7.0866 | 34 | 1.3386 | 2.1 | 122 | 93 | 10 | 25.4 | 3500 | 4200 | 3 |
Our Workshop Show
Our Workshop Show
TBB Bearing Provision is a professional bearing import and export company with over 10 years experience in this field. We have very good performance on bearing quality, on time delivery, sales supporting service. We will always try every effort to be the best among your bearing suppliers.
Quality Control
Quality Control
Our Inspection Report, it's issued by Bearing Test Centre ( Shanghai ) , National Machinery Industry of China, every batch of our OEM application products are inspected by Test Centre to ensure customer receiving perfect quality products.
Certificate Display
Certificate Display
Packing And Shipping
Packing Transportation Process / Warehouse Display
Service
Service
FAQ
FAQ
| Q | Do you have quality limit? |
| Dear friend, it according to your detailed products, never hesitate to contact us! | |
| Q | Do you like to accept small quantity order? |
| Dear friend, we would like to enjoy the progress of growing up stable with you together! | |
| Q | How long is your bearing lifetime? |
| Dear friend, it according to how you treat it, usually the validity is 12 months. | |
| Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds! | |
Contact Us
- Shanghai TBB Bearing Provision Co., Ltd.
- Contact nameCarol Wei Chat Now
- Phone86-21-38726186-8008
- AddressRm. 2202C, No. 1077, Zuchongzhi Road
