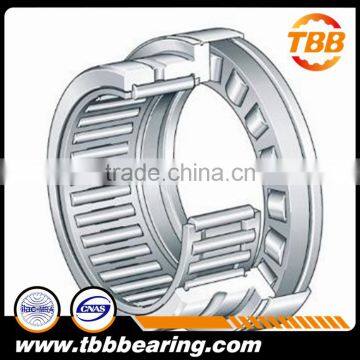

TS16949 certificated axial needle bearing 00122740/NKXR20Z

FOB Price

US$ 0.1 - 100 / Piece

1 Piece(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TBB/OEM		Bore Size	20,
Outside Diameter	36.2, 1-3/8"		Model Number	axial needle bearing 00122740/NKXR20Z

Product Description

Product Display

Product Display / Details

Product Parameters

TS16949 certificated axial needle bearing 00122740/NKXR20Z

Bore Diameter:	20 mm
Outside Diameter:	1-3/8"
Overall Width:	30 mm
Bearing Type:	Needle Roller/Axial Cylindrical Roller
Thrust Directions:	Single-Direction
Operating Temperature Range:	-20 to +120 °C
Radial Dynamic Load Capacity:	3700 lbf
Radial Static Load Capacity:	5400 lbf
Axial Dynamic Load Capacity:	5600 lbf
Axial Static Load Capacity:	11900 lbf
Maximum RPM:	10,000 RPM
Closure Type:	Single Seal
Radial Bearing Outside Diameter:	30 mm
Fillet Radius:	0.3 mm
Lubrication Type:	Grease
Cage Material:	Steel
End Cap Type:	With End Cap
Series:	NKXR

We are specialize in manufacturing wide range of automotive wheel bearing, wheel hub bearing, wheel hub for European and American, Japanese, Korean automobiles:
GMC, Volkswagen, Nissan, Opel, Fiat, Buick, Ford, Chevrolet, chevrolet, Oldsmobile, Ponitiac, Dodge,
Comanche Grand Cherokee, Jeep Grand Cherokee, Cadilac, Acura, BMW, Benz,
Hyundai, toyota, Honda, Chryslet, Mitsubishi, Mazda, Isuzu,
Daweoo, Kia, Volve, Jetta, Citroen, Peguent etc.
1. The DAC Series wheel bearing
2. The Second generation wheel Hub bearing
3. The Third generation wheel Hub assembly

More Iterms

515030	BR930419	FORD TRUCK2004-97
515031	BR390236	FORD TRUCK2002-00,LINCOLN TRUCK2002-00
515032	BR930361	DODGE TRUCK2004-97
515033		DODGE TRUCK2004-97
515036		CADILLAC TRUCK2005-02,CHEVROLET LIGHT TRUCKS2005-99,GMC LIGHT TRUCKS2005-99
515037		CHEVROLET LIGHT TRUCKS1994-88,GMC LIGHT TRUCKS1994-88
515038	BR930409	DODGE TRUCK2001-00
515039	BR930305	DODGE TRUCK2001-00
515040		LEXUS GX470 (2003 - 2008)
		TOYOTA 4RUNNER (2003 - 2004)
		TOYOTA 4RUNNER LIMITED (2005 - 2008)
		TOYOTA 4RUNNER SPORT (2005 - 2008)
		TOYOTA 4RUNNER SR5 (2005 - 2008)
		TOYOTA FJ CRUISER (2007 - 2008)
		TOYOTA FJ CRUISER TRAIL TEAMS SPECIAL EDITION 2008
		TOYOTA FJ CRUISER TRD SPECIAL EDITION 2007
515041		CHEVROLET LIGHT TRUCKS200-96,GMC LIGHT TRUCKS200-96,
515048	BR930406	515048, BR930406, SP580302 Front Wheel 1998-96 Chevrolet K1500 4WD, Right Hand, with ABS
515049	BR930415	DODGE TRUCK1999-97,
515050		FORD TRUCK2005-02,MERCURY TRUCK2005-02
515051		FORD RANGER (2003 - 2004)
		FORD RANGER EDGE (2003 - 2005)
		FORD RANGER FX4 (2005 - 2008)
		FORD RANGER SPORT (2006 - 2008)
		FORD RANGER STX (2006 - 2007)
		FORD RANGER XL (2005 - 2008)
		FORD RANGER XLT (2005 - 2008)
		MAZDA B3000 (2003 - 2007)
		MAZDA B3000 DS (2006 - 2007)
		MAZDA B4000 (2003 - 2008)
		MAZDA B4000 SE (2006 - 2008)
515052		FORD EXPLORER SPORT 2003
515052		FORD EXPLORER SPORT TRAC (2003 - 2005)
515053		CHEVROLET LIGHT TRUCKS2005-00,GMC LIGHT TRUCKS2005-00,CADILLAC TRUCK2005-02
515054		CHEVROLET LIGHT TRUCKS2005-99,GMC LIGHT TRUCKS2005-99,
515055		CHEVROLET LIGHT TRUCKS2000-96,GMC LIGHT TRUCKS2000-96,

Part of items dimension:

BEARING NO.	DIMENSIONS							Load Ratings		Weight
BEARING NO.	d	D	B	C	r1	r2	a°	Dynamic	Statistic	KG
GE4C	4	12	5	3	0.3	0.3	16	2.1	5.4	0.003
GE5C	5	14	6	4	0.3	0.3	13	3.6	9	0.004
GE6C	6	14	6	4	0.3	0.3	13	3.6	9	0.004
GE8C	8	16	8	5	0.3	0.3	15	5.8	14	0.008
GE10C	10	19	9	6	0.3	0.3	12	8.6	21	0.011
GE12C	12	22	10	7	0.3	0.3	11	11	28	0.015
GE15C	15	26	12	9	0.3	0.3	8	18	45	0.027
GE17C	17	30	14	10	0.3	0.3	10	22	56	0.041
GE20C	20	35	16	12	0.3	0.3	9	31	78	0.066
GE25C	25	42	20	16	0.6	0.6	7	51	127	0.119
GE30C	30	47	22	18	0.6	0.6	6	65	166	0.153

BEARING NO.		DIMENSIONS							Load Ratings		Weight
BEARING NO.		d	D	B	C	r1	r2	a°	Dynamic	Statistic	KG
GEG5E		5	16	9	5	0.3	0.3	21	5.5	27	0.008
GEG6E		6	16	9	5	0.3	0.3	21	5.5	27	0.006
GEG8E		8	19	11	6	0.3	0.3	21	8.1	40	0.014
GEG10E		10	22	12	7	0.3	0.3	18	10	53	0.021
GEG12E		12	26	15	9	0.3	0.3	18	16	84	0.033
GEG15ES	GEG15ES-2RS	15	30	16	10	0.3	0.3	16	21	106	0.049
GEG17ES	GEG17ES-2RS	17	35	20	12	0.3	0.3	19	30	146	0.083
GEG20ES	GEG20ES-2RS	20	42	25	16	0.3	0.3	17	48	240	0.153
GEG25ES	GEG25ES-2RS	25	47	28	18	0.6	0.6	17	62	310	0.203
GEG30ES	GEG30ES-2RS	30	55	32	20	0.6	0.6	17	79	399	0.304
GEG35ES	GEG35ES-2RS	35	62	35	22	0.6	1	16	99	495	0.408
GEG40ES	GEG40ES-2RS	40	68	40	25	0.6	1	17	127	637	0.542
GEG45ES	GEG45ES-2RS	45	75	43	28	0.6	1	15	156	780	0.713
GEG50ES	GEG50ES-2RS	50	90	56	36	0.6	1	17	245	1220	1.14
GEG60ES	GEG60ES-2RS	60	105	63	40	1	1	17	313	1560	2.05
GEG70ES	GEG70ES-2RS	70	120	70	45	1	1	16	400	2000	3.01
GEG80ES	GEG80ES-2RS	80	130	75	50	1	1	14	488	2440	3.64
GEG90ES	GEG90ES-2RS	90	150	85	55	1	1	15	607	3030	5.22
GEG100ES	GEG100ES-2RS	100	160	85	55	1	1	14	654	3270	6.05
GEG110ES	GEG110ES-2RS	110	180	100	70	1	1	12	950	4750	9.68
GEG120ES	GEG120ES-2RS	120	210	115	70	1	1	16	1,070	5350	14.01
GEG140ES	GEG140ES-2RS	140	230	130	80	1	1	16	1,360	6800	19.01
GEG160ES	GEG160ES-2RS	160	260	135	80	1	1	16	1,530	7650	20.02
GEG180ES	GEG180ES-2RS	180	290	155	100	1.1	1.1	14	2,120	10600	32.21
GEG200ES	GEG200ES-2RS	200	320	165	100	1.1	1.1	15	2,320	11600	45.28
GEG220ES	GEG220ES-2RS	220	340	175	100	1.1	1.1	16	2,550	12700	51.12
GEG240ES	GEG240ES-2RS	240	370	190	110	1.1	1.1	15	3,030	15190	65.12
GEG260ES	GEG260ES-2RS	260	400	205	120	1.1	1.1	15	3,570	17850	82.44
GEG280ES	GEG280ES-2RS	280	430	210	120	1.1	1.1	15	3,800	19100	97.21

DAC auto series

DAC30600037B	30	60	37	37
DAC30600337	30	60.03	37	37
DAC30600337B	30	60.03	37	37
DAC30600337C	30	60.03	37	37
DAC29990640042	29.99	64	42	42
DAC306500264	30	65	26.4	26.4
630374/C4	30	65	21	21
DAC32700038	32	70	38	38
DAC34620037	34	62	37	37
DAC34620037A	34	62	37	37
DAC34640034	34	64	34	34
DAC34640037	34	64	37	37
DAC34640037A	34	64	37	37
DAC34640037B	34	64	37	37
DAC34660037	34	66	37	37
DAC34670037	34	67	37	37
DAC35618040	35	61.8	40	40
DAC35640037	35	64	37	37
DAC35650035	35	65	35	35
DAC35650035A	35	65	35	35
DAC35650035B	35	65	35	35
DAC35650037	35	65	37	37
DAC35660032	35	66	32	32
DAC35660033	35	66	33	33
DAC35660037	35	66	37	37
DAC35660037A	35	66	37	37

Item No.	Dimensions				Applications
Item No.	d	D	B	C
DAC255200206	25	52	20.6	20.6	car parts bearings
DAC25520037	25	52	37	37	car parts bearings
DAC25550043	25	55	43	43	car parts bearings
DAC25560032	25	56	32	32	car parts bearings
DAC27600050	27	60	50	50	car parts bearings
DAC28610042	28	61	42	42	car parts bearings
DAC30600037	30	60	37	37	car parts bearings
DAC306500264	30	65	26.4	26.4	car parts bearings
DAC30650021	30	65	21	21	car parts bearings
DAC34620037	34	62	37	37	car parts bearings
DAC34640037	34	64	37	37	car parts bearings
DAC34660037	34	66	37	37	car parts bearings
DAC35640037	35	64	37	37	car parts bearings
DAC35650035	35	65	35	35	car parts bearings
DAC35660032	35	66	32	32	car parts bearings
DAC35660037	35	66	37	37	car parts bearings
DAC35680037	35	68	37	37	car parts bearings
DAC35720228	35	72.02	28	28	car parts bearings
DAC35720433	35	72.04	33	33	car parts bearings
DAC36680033	36	68	33	33	car parts bearings
DAC36720534	36	72.05	34	34	car parts bearings
DAC37720037	37	72	37	37	car parts bearings
DAC37720437	37	72.04	37	37	car parts bearings
DAC37740045	37	74	45	45	car parts bearings
DAC38720040	38	72	40	40	car parts bearings
DAC38720236/33	37.99	72.02	36	33	car parts bearings
DAC38740236/33	37.99	74.02	36	33	car parts bearings
DAC39680637	39	68.06	37	37	car parts bearings
DAC39720037	39	72	37	37	car parts bearings
DAC39720637	39	72.06	37	37	car parts bearings
DAC39740039	39	74	39	39	car parts bearings

Our Workshop Show

TBB Bearing Provision is a professional bearing import and export company with over 10 years experience in this field. We have very good performance on bearing quality, on time delivery, sales supporting service. We will always try every effort to be the best among your bearing suppliers.

Quality Control

Our Inspection Report, it's issued by Bearing Test Centre ( Shanghai ) , National Machinery Industry of China, every batch of our OEM application products are inspected by Test Centre to ensure customer receiving perfect quality products.

Certificate Display

Packing And Shipping

Packing Transportation Process / Warehouse Display

Service

FAQ

Q	Do you have quality limit?
	Dear friend, it according to your detailed products, never hesitate to contact us!
Q	Do you like to accept small quantity order?
	Dear friend, we would like to enjoy the progress of growing up stable with you together!
Q	How long is your bearing lifetime?
	Dear friend, it according to how you treat it, usually the validity is 12 months.
Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds! Contact Person: Lynn Skype: lynn.tam021 Mail: lynn.tan @
