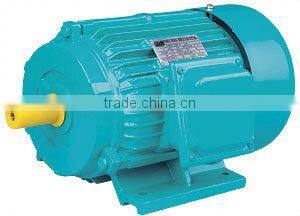

Y100L-2 20kw 1440 Rpm Brushless Lift Elevator Motor

FOB Price

US$ 50 - 5,000 / Set

10 Sets(Min. Order)

Port Qingdao/Shanghai/Tianjin
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	N.E.BROS
Model Number	Y100L-2

Product Description

Y series motor is totally enclosed and fan-cooling, three-phase squirrel cage induction motor, that is newly designed in conformity with the relevant requirements of IEC standards. Y series motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc. Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

Protection type:IP44 Insulation class:B Cooling type:IC0141 Rated frequency:50Hz

TYPE	Ouput		Voltage (V)	Current (A)	Speed (r.p.m)	Eff(%)	Power factor	Start torque Rated	Start current Rated	Max. torque Rated
TYPE	HP	kW	Voltage (V)	Current (A)	Speed (r.p.m)	Eff(%)	Power factor	torque	current	torque
Y801-2	1	0.75	380	1.8	2830	75.0	0.84	2.2	6.5	2.3
Y802-2	1.5	1.1	380	2.5	2830	77.0	0.86	2.2	7.0	2.3
Y90S-2	2	1.5	380	3.4	2840	78.0	0.85	2.2	7.0	2.3
Y90L-2	3	2.2	380	4.8	2840	80.5	0.86	2.2	7.0	2.3
Y100L-2	4	3	380	6.4	2870	82.0	0.87	2.2	7.0	2.3
Y112M-2	5.5	4	380	8.2	2890	85.5	0.87	2.2	7.0	2.3
Y132S1-2	7.5	5.5	380	11.2	2900	85.5	0.88	2.0	7.0	2.3
Y132S2-2	10	7.5	380	15.0	2900	86.2	0.88	2.0	7.0	2.3
Y160M1-2	15	11	380	21.8	2930	87.2	0.88	2.0	7.0	2.3
Y160M2-2	20	15	380	29.4	2930	88.2	0.88	2.0	7.0	2.3
Y160L-2	25	18.5	380	35.5	2930	89.0	0.89	2.0	7.0	2.2
Y180M-2	30	22	380	42.2	2940	89.0	0.89	2.0	7.0	2.2
Y200L1-2	40	30	380	56.9	2950	90.0	0.89	2.0	7.0	2.2
Y200L2-2	50	37	380	69.8	2950	90.5	0.89	2.0	7.0	2.2
Y225M-2	60	45	380	83.9	2970	91.5	0.89	2.0	7.0	2.2
Y250M-2	75	55	380	103	2970	91.5	0.89	2.0	7.0	2.2
Y280S-2	100	75	380	140	2970	91.5	.089	2.0	7.0	2.2
Y280M-2	125	90	380	167	2970	92	0.89	2.0	7.0	2.2
Y315S-2	150	110	380	200	2980	93	0.9	1.8	7.0	2.2
Y315M-2	180	132	380	237	2980	94	0.9	1.8	7.0	2.2
Y801-4	0.75	0.55	380	1.5	1390	73.0	0.76	2.4	6.0	2.3
Y802-4	1	0.75	380	2.0	1390	74.5	0.76	2.3	6.0	2.3
Y90S-4	1.5	1.1	380	2.8	1400	78.0	0.78	2.3	6.5	2.3
Y90L-4	2	1.5	380	3.7	1400	79.0	0.79	2.3	6.5	2.3
Y100L1-4	3	2.2	380	5.0	1430	81.0	0.82	2.2	7.0	2.3
Y100L2-4	4	3	380	6.8	1430	82.5	0.81	2.2	7.0	2.3
Y112M-4	5.5	4	380	8.8	1440	84.5	0.82	2.2	7.0	2.3
Y132S-4	7.5	5.5	380	11.7	1440	85.5	0.84	2.2	7.0	2.3
Y132M-4	10	7.5	380	15.4	1440	87.0	0.85	2.2	7.0	2.3
Y160M-4	15	11	380	22.6	1460	88.0	0.84	2.2	7.0	2.3
Y160L-4	20	15	380	30.3	1460	88.5	0.85	2.2	7.0	2.3
Y180M-4	25	18.5	380	35.9	1470	91.0	0.86	2.0	7.0	2.2
Y180L-4	30	22	380	42.5	1470	91.5	0.86	2.0	7.0	2.2
Y200L-4	40	30	380	56.8	1470	92.2	0.87	2.0	7.0	2.2
Y225S-4	50	37	380	70.4	1470	91.8	0.87	1.9	7.0	2.2
Y225M-4	60	45	380	84.2	1470	92.3	0.88	1.9	7.0	2.2
Y250M-4	75	55	380	103	1480	92.6	0.88	2.0	7.0	2.2
Y280S-4	100	75	380	140	1480	92.7	0.88	1.9	7.0	2.2
Y280M-4	125	90	380	164	1480	93.6	0.89	1.9	7.0	2.2
Y315S-4	150	110	380	201	1480	93.5	0.89	1.8	7.0	2.2
Y315M-4	180	132	380	241	1490	93.5	0.89	1.8	7.0	2.2
Y90S-6	1	0.75	380	2.3	910	72.5	0.70	2.0	5.5	2.2
Y90L-6	1.5	1.1	380	3.2	910	73.5	0.72	2.0	5.5	2.2
Y100L-6	2	1.5	380	4.0	940	77.5	0.74	2.0	6.0	2.2
Y112M-6	3	2.2	380	5.6	940	80.5	0.74	2.0	6.0	2.2
Y132S-6	4	3	380	7.2	960	83.0	0.76	2.0	6.5	2.2
Y132M1-6	5.5	4	380	9.4	960	84.0	0.77	2.0	6.5	2.2
Y132M2-6	7.5	5.5	380	12.6	960	85.3	0.78	2.0	6.5	2.2
Y160M-6	10	7.5	380	17.0	970	86.0	0.78	2.0	6.5	2.0
Y160L-6	15	11	380	24.6	970	87.0	0.78	2.0	6.5	2.0
Y180L-6	20	15	380	31.4	970	89.5	0.81	1.8	6.5	2.0
Y200L1-6	25	18.5	380	37.7	970	89.8	0.83	1.8	6.5	2.0
Y200L2-6	30	22	380	44.6	970	90.2	0.83	1.8	6.5	2.0
Y225M-6	40	30	380	59.5	970	90.2	0.85	1.7	6.5	2.0
Y250M-6	50	37	380	72	980	90.8	0.86	1.8	6.5	2.0
Y280S-6	60	45	380	85	980	92.0	0.87	1.8	6.5	2.0
Y280M-6	75	55	380	104	980	92.0	0.87	1.8	6.5	2.0
Y315S-6	100	75	380	141	990	93.0	0.87	1.6	6.5	2.0
Y315M-6	125	90	380	168	990	93.5	0.87	1.6	6.5	2.0
