Home > Products > Off Grid System > 3000W All- in- One Reliable Diesel-PV-Grid Power Generating System for Non-electricity and Power shortage area
3000W All- in- One Reliable Diesel-PV-Grid Power Generating System for Non-electricity and Power shortage area
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | Jntech,OEM | |
| Model Number | JNF-3K | Specification | Normal | |
| Application | Home | Output Voltage (V) | 220~240Vac | |
| Load Power (W) | 3000w | Solar Power (W) | 680w | |
| Work Time (h) | 24 Hours |
Product Description

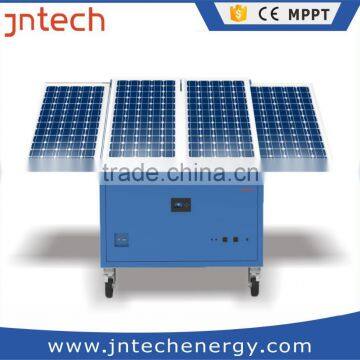

3000W All- in- One Reliable Diesel-PV-Grid Power Generating System for Non-electricity and Power shortage area
Technical Specification:
| Model | JNF-3K |
| PV Input Power | 680Wp |
| Max.Input VOC | 150Vdc |
| PV Input Voltage | 60~150Vdc |
| AC Output Single/Three Phase | Single Phase |
| AC Output Voltage | 220~240Vac@ 50/60Hz |
| AC Output Capacity | 3000VA |
| USB Output | 2*5V@2A |
| Generator/Grid Input | 230Vac±15%/50~60Hz |
| Battery Type | Gel/Lead Acid |
| Battery Capacity | 14.4kWh |
| Backup Time | 6h(50% Load) |
| 3h(100% Load) | |
| Operating Temperature | -10℃ to +55℃,above 40℃ need derate operating |
| Relative Humidity | 0~95%RH |
| Altitude | <2000m |
| Expanded size(W*D*H) | 2750*1500*1650 |
| Folding size(W*D*H) | 1400*1500*925 |
| Protection Level | IP33 |
| Weight | 700kg |
