Home > Products > Off Grid System > Home Solar Power Generating System 1kW/3kW All-in-one Solar Generator System

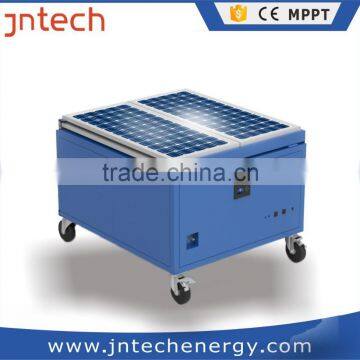

Home Solar Power Generating System 1kW/3kW All-in-one Solar Generator System
- Shanghai
- D/P D/A Credit Card
You May Like
-
3000W All- in- One Reliable Diesel-PV-Grid Power Generating System for Non-electricity and Power shortage area
-
High Quality 1kW All in One Off Grid Solar Power Supply System
-
home used solar system 5000W
-
3000W Mobile Power Supply System, All in One Off Grid Solar Power System
-
Jntech All in One PV Off Grid Solar Power System 1000W
-
All-in-one Solar Off-grid Power Generation System
Product Details
| Place of Origin | Anhui, China | Brand Name | Jntech,OEM | |
| Model Number | JNF-3K | Specification | Normal | |
| Application | Home | Output Voltage (V) | 220~240Vac | |
| Load Power (W) | 3000w | Solar Power (W) | 680w | |
| Work Time (h) | 24 Hours |
Product Description
Home Solar Power Generating System 1kW/3kW All-in-one Solar Generator System
Technical Specification:
| Model | JNF-3K |
| PV Input Power | 680Wp |
| Max.Input VOC | 150Vdc |
| PV Input Voltage | 60~150Vdc |
| AC Output Single/Three Phase | Single Phase |
| AC Output Voltage | 220~240Vac@ 50/60Hz |
| AC Output Capacity | 3000VA |
| USB Output | 2*5V@2A |
| Generator/Grid Input | 230Vac±15%/50~60Hz |
| Battery Type | Gel/Lead Acid |
| Battery Capacity | 14.4kWh |
| Backup Time | 6h(50% Load) |
| 3h(100% Load) | |
| Operating Temperature | -10℃ to +55℃,above 40℃ need derate operating |
| Relative Humidity | 0~95%RH |
| Altitude | <2000m |
| Expanded size(W*D*H) | 2750*1500*1650 |
| Folding size(W*D*H) | 1400*1500*925 |
| Protection Level | IP33 |
| Weight | 700kg |
Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,
Jntech has come a long way in the past 10years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200(50% of R&D and technical engineers)
Total EPC projects: 1000MW(grounded/ rooftop)
Residential off-grid system: 40,000 units(over 20MW)
Solar pumping system: over 2200 projects in 30 countries
Welcome to visit our company!
