BT30 24000rpm, 5.5kw, 350v, 110mm ATC Milling Spindle Motor
US$ 2,000 - 2,300
/ Piece
1 Piece(Min. Order)
- Ningbo/Shanghai/Tianjin
- T/T Credit Card
You May Like
-
BT40, 8000rpm, 5kw, 350v, 150mm Water Cooling Engraving and Milling Spindle Motor
-
BT40, 3.7kw, 3000-6000r/min Automatic Tool Change Spindle Motor
-
Power 3.5kw ATC Type Spindle CNC Electric Spindle
-
OD150mm Belt Drive Spindle
-
BT40,12000RPM,7KW,350V,14.4A Spindle Motor
-
40000rpm,380V,80mm Water Cooled Grinding Spindle Motor
Product Details
| Place of Origin | Henan, China | Brand Name | WF | |
| Model Number | GD110Z24 | Application | Milling | |
| Maximum Torque | 1.8Nm | Drive | Motor | |
| Operating Speed | 24000rpm |
Product Description
Product Description

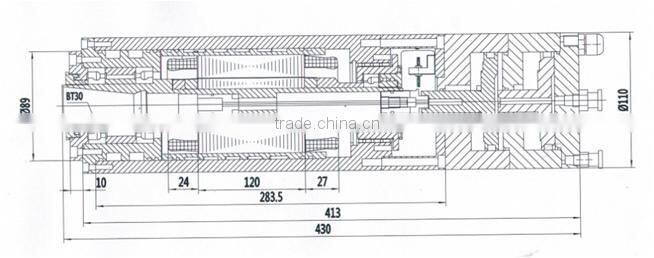

Sketch as following:
Electrical Parameters:
| Type | GD110Z24/5.5 BT30 | ||
| Nominal voltage | 350 V | Max voltage | 350 V |
| Nominal rate | 400 Hz | Max rate | 400 Hz |
| Nominal speed | 24000 Rpm | Max speed | 24000 Rpm |
| Nominal current | 12.5 A | Max current | 18.5 A |
| Nominal Power | 5.5 KW | Norminal torque | 1.8NM |
| Pole pair | 2 | Weight | about 25kgs |
Technical Parameters:
| 1.Max speed24000 rpm/min | |||||||
| 2.Lubrication: grease(free of maintenance) | |||||||
| 3.Joint: BT30 | |||||||
| 4.KN:240±10kg, loose blade force: 360kg, air knife stroke: 2mm, preloading: 3.4mm | |||||||
| 5.Clamping mode: grippers | |||||||
| 6.Dynamic balance grade: GO.1 | |||||||
| 7.BT30 cone radical play: ≤0.003 | |||||||
| 8.Temperature rise: 25 ℃ | |||||||
| 9.Disc spring mounted with three pieces as a group, O shaped array, total 34 groups |

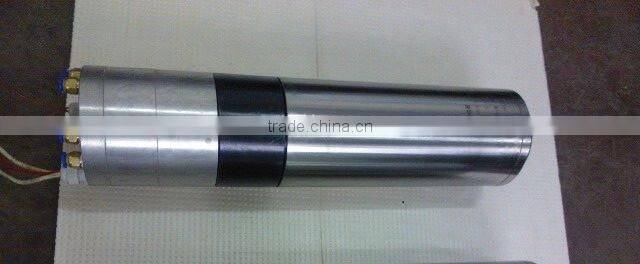

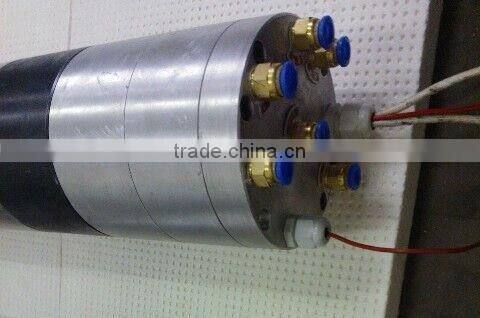

Product show:
