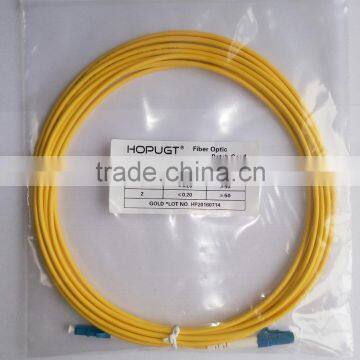

Optical Fiber LC-LC SM Patch cord simplex 1Meter
- shanghai port
- Credit Card
You May Like
Product Details
Place of Origin | Henan, China | Brand Name | HOPUGT | |
Model Number | LC/PC-LC/PC-S3-L1 |
Product Description
FIBER OPTIC PATCH CORDS
Fiber optic patch cable, also known as fiber optic cord or fiber optic jumper, is composed of fiber optic cable terminated with different premium grade ferrule connectors on both ends. It is designed to interconnect or cross connect fiber networks within structured cabling systems.
SM Patch cord simplex 1Meter
Applications: ›› CATV ›› FTTX ›› LAN & WAN ›› Data Center Applications ›› Broadband Net ›› Fiber Test Instrument ›› Telecommunication Networks | Features: ›› CCTC Ceramic Ferrule ›› OEM Service Available ›› Low Insertion Loss, High Durability ›› Cable Printing helps recognizing different cables ›› Standard and bend insensitive single mode fiber ›› Flexible boot allows connection in compact spaces ›› Available in loose tube, central tube and drop cable design |
SPECIFICATIONS
Parameter | Unit | Single Mode | Multi Mode | ||
Insertion Loss | dB | <0.2 or <0.1 | |||
Return Loss | Polishing Type | PC | dB | >40 | >35 |
UPC | dB | >50 | - | ||
APC | dB | >60 | - | ||
Durability |
| >1000 | |||
Fiber Type | - | G.652 G.657 G.655 (9/125)/OM | |||
Connector Type | - | SC, FC, LC, ST, MTRJ, MU, E2000, Pigtail, | |||
Cable Diameter | mm | 0.9, 2.0, 3.0 | |||
Cable Color | - | Red, Gray, Blue, White, Black, Green, Yellow, Pink and purple. | |||
Cable Jacket | - | PVC,Armored,Low Smoke Zero Halogen (LSZH) | |||
Operating Temperature | °c | -40 - +75 | |||
Storage Temperature | °c | -40 - +85 |
HOPUGT Packaging & Labeling
√ Easy to take √ Easy to carry √ Easy to count √ Easy to sell √ Well-protected
FACTORY INTRODUCTION
PROFILE
Luoyang Hopu Optical Manufacturing Co.,Ltd was established in 2010 and it is a professional high-technology enterprise,specializing in research,manufacturing and sales of optical fiber communications passive components. The company mainly produces optical fiber activities connector,optical fiber splitter,FWDM.Sales are front--end equipment of cable television equipment,network equipment and passive optical network(EPON)system integration.Customers around the world are provided by professional OEM/ODM service and high-quality,high technology,cost-effective products.
PRODUCT RANGE
Fiber Patch Cord(FC/SC/LC/ST),Fiber Optic Coupler:Steel Tube/ABS Standard Single Window/Single-mode Coupler(1*N) Standard Dual Window/Single-mode Coupler (1*N),PLC Splitter(Pipe/Module Type),FWDM,Fiber Media Converter Single fiber/Dual fiber,Optical Fiber Testing Instruments:Optical Power Meter,Optical Light Stheirce Visual Fault Locator,Fiber Adapter,Hybrid Adapter,Shutter Adapter,Fiber Optical Fusion Splicer.
