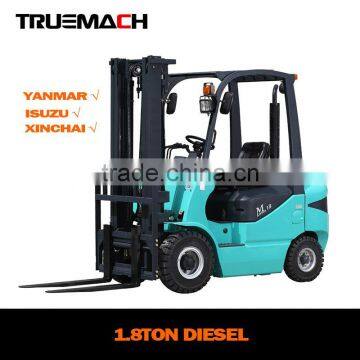

1.8ton small diesel forklift
- shanghai port
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Henan, China | |
Brand Name | Truemach | Model Number | FD18T-M2GI3 | |
Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
Rated Loading Capacity | 1.8ton | Max. Lifting Height | 3-6m | |
Min. Lifting Height | free lift 135mm | Fork Length | 920mm | |
Fork Width | 100mm | Overall Dimensions | 2300*1070*2110mm | |
Certification | ISO,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CHINA TOP QUALITY
1.8ton small diesel forklift
General | 1 | Model | FD15T-M2GI3 | FD18T-M2GI3 | |||
2 | Power type | Diesel | |||||
3 | Rated capacity | kg | 1500 | 1800 | |||
4 | Load centre | mm | 500 | ||||
Characteristic &Dimension | 5 | Lift height | mm | 3000 | |||
6 | Free lift height | mm | 135 | ||||
7 | Fork size | L×W×T | mm | 920×100×35 | |||
8 | Fork regulating range | Min./Max. | mm | 200/890 | |||
9 | Mast tilt angle | F/R | Deg | 6/12 | |||
10 | Front overhang | mm | 400 | ||||
11 | Rear overhang | mm | 465 | 510 | |||
12 | Min. ground clearance(Bottom of mast) | mm | 130 | ||||
13 | Overall dimensions | Length to face of fork (without fork) | mm | 2255 | 2300 | ||
14 | Overall width | mm | 1070 | ||||
15 | Mast lowered height | mm | 2015 | ||||
16 | Mast extended height (with backrest) | mm | 3984 | ||||
17 | Overhead guard height | mm | 2110 | ||||
18 | Turning radius(outside) | mm | 2040 | 2075 | |||
19 | Min. right angle stacking aisle width (add load length and clearance) | mm | 1825 | 1857 | |||
Performance | 20 | Speed | Travel(Unladen) | km/h | 14.5 | ||
21 | Lifting(Laden) | mm/s | 460 | ||||
22 | Lowering(Laden) | mm/s | 450 | ||||
23 | Max. Drawbar pull(Laden/unladen) | KN | 17/15 | ||||
24 | Max. Gradeability(Laden) | % | 20 | ||||
Tyre | 25 | Tyre | Front | 6.50-10-10PR | |||
26 | Rear | 5.00-8-8 PR | |||||
27 | Tread | Front | mm | 890 | |||
28 | Rear | mm | 920 | ||||
29 | Wheelbase | mm | 1400 | ||||
Weight | 30 | Self weight | kg | 2590 | 2800 | ||
31 | Weight Distribution | Laden | Front Axle | kg | 3520 | 3950 | |
32 | Rear Axle | kg | 570 | 650 | |||
33 | Unladen | Front Axle | kg | 1160 | 1260 | ||
34 | Rear Axle | kg | 1430 | 1540 | |||
Power &Transmission | 35 | Battery | Voltage/Capacity | V/Ah | 12/90 | ||
36 | Engine | Model | NB485 | ||||
37 | Manufacture | Xinchai | |||||
38 | Rated output/r.p.m. | kw | 30/2600 | ||||
39 | Rated torque/r.p.m. | N·m | 131/1700-1900 | ||||
40 | No. of cylinder | 4 | |||||
41 | Bore×Stroke | mm | 85×100 | ||||
42 | Displacement | L | 2.27 | ||||
43 | Fuel tank capacity | L | 50 | ||||
44 | Transmission | Manufacture | China | ||||
45 | Type | Hyd(Mech) | |||||
46 | Stage | F/R | 1/1(2/2) | ||||
47 | Operating pressure(For attachments) | MPa | 14.5 |
1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and
maintenance training in our factory.
2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.
3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer best sea freight fee
and responsible for detail treatment to goods.
4) Operation manual in English provided.If you need other language manual,we can provide you based on adding little cost.
5) We prepare free spare parts in a toolbox for customer for emergency use.
6) We make record for every machine chassis no.and tracing them to get the latest information about the machine. And give the best
service timely.
7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for the machine till it
reject.
We will provide replacement parts if fault happens during ultimate users’ normal using on account of unqualified material or manufacture. 14 months or 2000 working hours,which comes first , will be given as guarantee period to the following items:Engine, controller assembly, gear box; driving axle; steering axle; wheel hub;wheel rim; cylinder; arrester; high-pressure hose; Pump; control valve; Fork;chain; mast bearing; for more detailed guarantee terms, we will list it in contract.
