Home > Products > Agricultural Machinery > LT504 4WD 50HP Farm Wheel Tractor
LT504 4WD 50HP Farm Wheel Tractor
- Shanghai Port China
- T/T
You May Like
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 36.8kW | |
| Certificate | CE | Brand Name | TRUEMACH | |
| Model Number | LT504 Farm Tractor | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
LT504 4WD 50HP FARM WHEEL TRACTOR

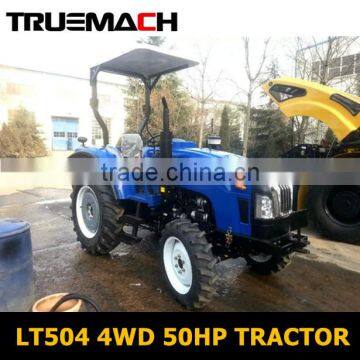

1.Image
2. Main Features
-Adopt Xin’chai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
-Dual-stage clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
-Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
-Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
-Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
-Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
-Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
-Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
-New streamlined appearance, generous, modern, fashion;
-Control levers can be mounted at side as optional, more convenient and comfortable.
3. Main Technical Specifications
Model LT504 | |
Drive Type | 4-wheel-drive (4x4) |
Engine | |
Diesel model | Chinese Xin’chai A498BT-6A |
Type | In-line, 4-cylinder, water-cooled, 4-stroke, direct injection, natural aspiration |
Rated power/speed | 36.8kW/50hp |
Rated speed | 2400 r/min |
Weight | |
Min. using mass | 2080kg(without cab) |
Front counterweight | Max.104kg |
Rear counterweight | Max.220kg |
Parameters | |
Min. turning radius | 3.8m/ 4.3m (unilatera brake/ not unilateral brake) |
Gearbox gear numbers | 12F+12R |
Speed range | Forward: 2.46-34.02 km/h; Reverse: 2.15-29.82 km/h |
Travel System | |
Front wheel spec. | 8.3-20 |
Rear wheel spec. | 13.6-28 |
Overall Dimensions | |
Min. Ground clearance | 330mm |
Wheelbase | 1990mm |
Front wheel tread | 1265mm |
Rear wheel tread | 1200-1500mm (common 1300mm) |
Overall dimension (L*W*H) | 3770*1620*2130mm |
Transmission System | |
Clutch Type | Dry-type, single disc, 10-inch dual-stage |
Gear shifting type | Mesh Sleeve shift |
Gear type | 4x3(1+1) |
Central transmission | Spiral bevel gear(front axle) Spiral bevel gear (rear axle) |
Differential | Close-style, 2 bevel planet gears (front axle) Close-style, 4 bevel planet gears (rear axle) |
Final transmission | Dual-stage straight teeth bevel gear (front axle) Single-stage built-in planetary gear (rear axle) |
Transfer box | Straight teeth spur gear (4-wheel-drive) |
Steering & Brake System | |
Steering Type | Hydraulic front wheels steering |
Service brake | Double disk, oil-bath brake |
Parking brake | Mechanical hand brake |
Working System | |
Lifter Type | Split-style |
Linkage category | Rear 3-point linkage, I-category |
Max. lifting force | 8.28kN |
Control mode of ploughing | Height adjustable, floating control |
Max. Traction force | 11.7 kN |
PTO Type | Rear-mounted, semi-independent type |
PTO Power | more than 31.3KW |
PTO Speed | 540/1000 (6-spline) |
