Forklift Bin Tipper for All Forklift Brand
- Xiamen
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GA | |
| Model Number | BT10 Bin Tipper for Forklift |
Product Description

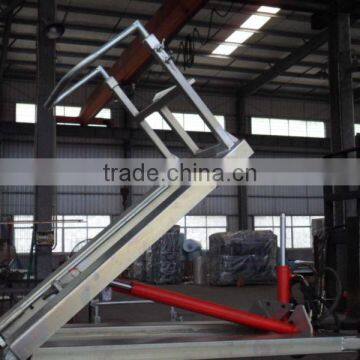

Forklift Bin Tipper for All Forklift Brand
The BT10 Bin Tipper for Forklift for handling and emptying bins in agricultural and manufacturing industries. A purpose built hydraulic sequencing valve eliminates the potential to drop the bin as rotation will not commence until the bin is secured into position, while the gentle action of the clamp force prevents damage to the bins.
Bin Tipper for Forklift features:
1. Hydraulic circuit control system.
2. The maximum size of forklift arm is 130*60*1400mm
3. The maximum loading capacity is 1000kg
4. Size of a standard box is: length 1200*width(750~1300)*height(650~1100)mm (its width and height are variable)
5. Surface treatment: Baking varnish finished
Bin Tipper for Forklift Specifications:
• Safe Working Load: 1000 kg
• Unit Weight: 200 kg
• Fork Pocket Size: 135 mm x 65 mm
• Package size: 1700 x 900 x 890mm
Method of application: Insert the forklift arm into the 2/3 position of the fork extension.Connect the oil pipe to the hydraulic circuit control system by tools,and insert the locating pin for fixed, then the whole system works.
