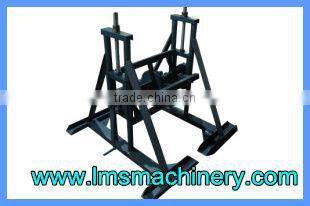

Metal Hydraulic Decoiler Roll Forming Machine

Specifications

 automatic hydraulic decoiler

LMS is always dedicated to providing high quality China-made machinery at competitive price with ensuring first-class after-sale service to all the customers from home and abroad. Our main products cover roll forming machine, metal sheet machine,
pipe making machine, duct machine, slitting machine, shearing machine, bending machine , drawing machine ,etc.
. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection. LMS achieves ISO 9001 Quality Management Systems Certificate and enjoys high reputation in domestic and overseas markets.

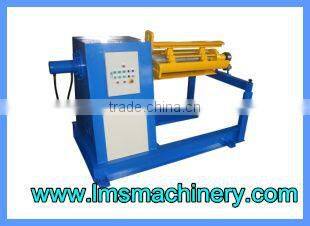

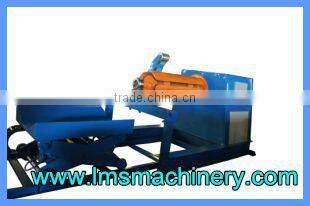

1, For the automatic decoiler + trolly car + guide rail 5 Tons, 1350/1400mm, with a step feeder

Parameters:

1)    Decoiling type: Hydraulic

2)    Decoiling width: Max. 1400mm

3)    Decoiling max. loading capacity:7tons

4)    Outer diameter: 1200mm Max.

5)    Inner diameter: 508+/-30mm

6)    Decoiling speed: about 18meters per minute.

7)    Pump motor power: 3.0KW

8)    Motor: 3.0KW

9)    Trolley car up & down loading stroke: Max. 450mm

10) Trolley car guide rail length: 3 meters

11) Separated electric control system

12) Expansions: Hydraulic

Feeding device:

1)    Feeding rollers: 2 pinch rollers

2)    Frequency converter: Mitsubishi

3)    PLC control: FX1N series

4)    Touchable screen: Mitsubishi

5)    Encoder: OMRON

6)    Power:2.2KW

7)    The working height of this feeder is same as the shearer that buyer has.

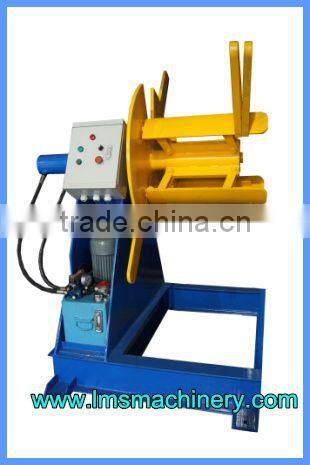

2. PARAMETERS FOR HYDRAULIC DECOILER(WITH SUPPORTER)

1), HYDRAULIC TYPE

2), HYDRAULIC DECOILER WORKING WIDTH:1250MM

3), WORKING CAPACITY: 7T

4), COIL MAX. DIAMETER:1200MM

5), COIL INNER DIAMETER:508MM+/-30MM
