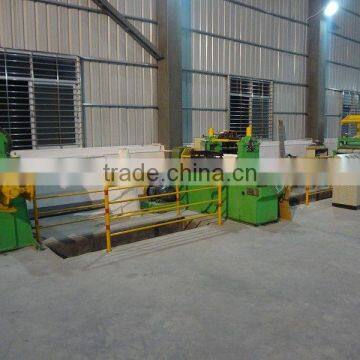

Hot rolled coil, cold rolled coil slitting machine, steel slitting line
- 5 Set / Sets per Month
- GUANGZHOU
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Slitting and Rewinding Machine Processing Type In China
-
slitting machine decoiling machine line
-
High Speed Slitting and Rewinding Making Machine
-
Hydraulic Aluminum Steel Coil Slitting Line Rolled Steel Sheet Slitting Machine
-
LMS Hydraulic Saving Labor High Speed Slitting Line with Double Slitting Stand
-
0.3-2.0x1300 Slitting line
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | LMS | Model Number | LMS-1500 | |
| Voltage | 380V | Rated Power | 7.5kw | |
| Dimension(L*W*H) | 3880*2150*2000mm | Weight | 10000KG | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot rolled coil, cold rolled coil slitting machine, steel slitting line
VIDEO LINK :
/en/video/slitting-line-cut-to-length-line/slitting-line-(1.0-6.0x1600)--structure)
Capacity
1. Thickness: 0.5mm 6.0mm
2. Metal Sheet Width: 500mm 1500mm
3. Milling Speed: 0 60m/min
4. Material: mild steel, stainless steel
5. Coil Outer Diameter (max): 1800mm
S. No. | Name of Equipment | Quantity | Remark |
1 | Loading Trolley Car | 1 |
|
2 | Hydraulic Double-head Decoiler | 1 |
|
3 | Feeding & Flattening | 1 |
|
4 | Looping Bridge | 1 |
|
5 | Deflector | 1 |
|
6 | Slitting Machine | 1 |
|
7 | Scrap Recoiler | 1 |
|
8 | Looping Bridge | 1 |
|
9 | Tension Station | 1 |
|
10 | Separating Device | 1 |
|
11 | Recoiler | 1 |
|
12 | Hydraulic Support | 1 |
|
13 | Discharge Trolley Car | 1 |
|
Loading Trolley Car
1. Loading Capacity: 20 Tons
2. Lifting Height: 600 mm
Hydraulic Decoiler
1. Loading Capacity: 20 Tons
2. Expansion Range: 60 mm
3. Expansion Grades: ø460mm-ø520mm, ø620mm, ø770mm
Feeding & Flattening
1. Feeding Roller (2pcs): ø150mm x 1600mm, GCr 15
2. Flattening Roller (5pcs): ø150mm x 1600mm, GCr 15
3. Motor: 37KW
Slitting Machine
1. Slitting blade shaft: ø220mm x 1600mm, 40Cr
2. Blade Diameter: ø380mm
3. Motor: 90KW
Hydraulic Recoiler
1. Loading Capacity: 20 Tons
2. Expansion Range: 28mm (ø480mm-ø508mm)
3. Motor Power: 132 KW DCMotor
Hydraulic System
1. Oil Tank Volume: 500 kg
2. Hydraulic Power Grade: Grade E
3. Vane Pump: 15KW motor
Oil output: 30ML
Nominal Pressure: 70kg/cm²
Max. Pressure: 140kg/cm²
4. Hydraulic parts made in Taiwan
Electronic System
1. Power Supply: 380V, 3 phases, Voltage fluctuates within +10%
2. Control Power: 220V AC / 24V DC
3. PLC Control
LMS Automatic coil metal slit machine / slitting line / slitting machine
