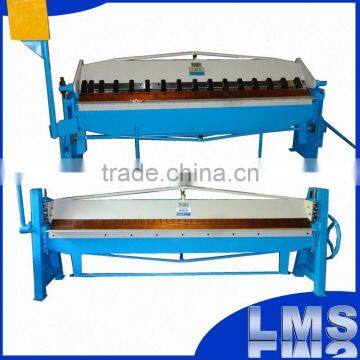

LMS manpower folding machine, Sheet metal manual folder machine instock

LMS manpower folding machine, Sheet metal manual folder machine instock

• Hand folder machine



• Sheet metal manual folder machine instock



• LMS manpower folding machine, Sheet metal manual folder machine instock



•

  Characteristics

  1. A kind of advanced machine with high quality

  2. Has a welded steel frame and has a vibration treatment to reduce distortion

  3. It is durable rigid and difficult to deform

  4. Fully hydraulic controlled, quiet and easy to operate

  5. The pressing blade can be subsection, it is suitable for manufacturing box/pan type products, and the open height is 200mm

  6. The upper pressing blade can adjust the height automatically

  7. The working angle can be adjusted promptly

  8. Is especially suitable to use in kitchen ware, hardware and the furniture making industry



  Main technical parameter

  Model		W62Y 4X2500	W62Y 5X2000	W62Y 4X3100	W62Y 3X3100	W62Y 3X2500
  Nominal pressure	KN	1000	1000	1000	1000	1000
  Strokes	/min	14	14	14	14	14
  Throat depth	mm	200	200	200	200	200
  Folding length	mm	2500	2000	3100	3100	2500
  Folding thickness	mm	0.5~4.5	0.5~5	0.5~4	0.5~3	0.5~3
  Circumgyrating angle of the bending beam	°	10°~110°	0°~125°	0°~110°	0°~125°	0°~125°
  Max. lifting height of the upper beam	mm	200	200	200	200	200
  Model size	L. mm	3600	3100	4200	4200	3300
  	W. mm	1060	1060	1060	1060	1060
  	H. mm	2000	2000	2000	1800	2000
  Weight	kg	3600	2850	4309	4285	3500

  LMS W62Y Folding Machine(W62Y4X250)
