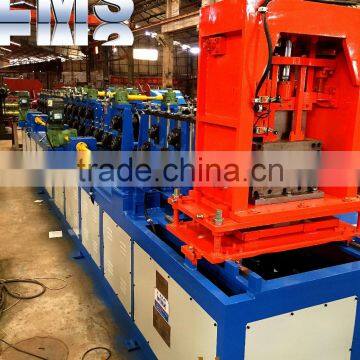

LMS Steel C Channel Roll Forming Machine C Shape Box Beam Roll Forming Machine

LMS Steel C Channel Roll Forming Machine C Shape Box Beam Roll Forming Machine

• cold roll forming machine



• steel profile roll forming machine



• storage rack system roll forming machine











  1.Machine Introduction

  INTRODUCTION

  LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.



  2.Machine Specification



  TECHNICAL PARAMETER FOR COUPLE BOX BEAM ROLL FORMING MACHINE
  I Main Specification:
  i. Materials : hot rolled steel
  ii. Material Thickness :1.8- 2.6 mm

  Production Process:
  material coil - decoiling - roll-forming - hydraulic mould cutting - profile

  Profile drawing as follows:



  The complete roll forming line comprise following parts:
  1. Hydraulic DECOILER                   1 SET
  (1) Max. Width                                   800 mm
  (2) Inner Diameter                            470 -  520 mm
  (3) Out Diameter                               1'600 mm
  (4) Max. Loading Capacity               5'000 kgs
  (5) Manual operating type                hydraulic
  (6) Power                                           5.5KW
  (7) Speed                                           0-20 rotation / min



  Or Manual type decoiler:

   i Hand Operated Decoiler            1 set
  (1) Decoiler Type                           Hand Operated Expansion
  (2) Max. Outer Diameter of Coil    1'400 mm
  (3) Max Inner Demeter of Coil       400 - 450 mm
  (4) Max. Width of Coil                   500 mm
  (5) Loading Capacity                     5,000 kgs



  ii Main roll forming machine      1 set
  (1) Roll Forming Stations          16 Nos., Additional 5 Nos. for                                                     Straightening
  (2) Profile Width & Height Adjustment  by motor screw
  (3) Roller's Material                     Gr15 Steel
  (4) Roller's Main Shaft                55mm, in 45# Steel
  (5) Main Bearing                          60309
  (6) Gear Thickness                      45 mm, under 45# HF                                                                  Surface Treatment
  (7) Roller's Treatment                  Surface Polished Treatment
  (8) Main Motor                             11 kw, 350 Gearbox
  (9) Machine Side-Wall Thickness    25 mm
  (10) Roll Forming Speed              12 meters / minute
  (11) Heat treatment hardness       HRC55-57
  (12) Equipped With Water Cooler Device


  iii Hydraulic Mould Cut-Off Device       1 set
  (1) Cutter Type :Hydraulic, Automatic Cut-Off by Mould
  (2) Cut-Off Mould : 3 Sets, Selvage Cutting
  (3) Cutting die material:  Gr12 steel
  (4) Motor : 4.0 kw
  (5) Heat treatment hardness: HRC57-59



  iv Run-Out Table :1 set
  (1) Structure :Welded by Angle Profile
  (2) Length :6 Meters



  ELECTRONIC CONTROL SYSTEM

  COMMON CONTROLLER
  (1) Common Controller :Controlled by Knob / Button
  (2) Length Controller :by Baffling&End-Switch on Run-Out Table
  (3) Length Cutting :Roll Forming Machine Stops, then Cuts
  (4) Electronic Spear Parts: TAIWAN Shilin or Joint Venture Company
  (5) Power Supplier :380 V, 3Phs, 50Hz



   Storage System Beam Roll Forming Machine
