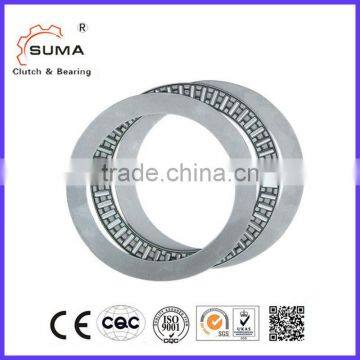

AXK Series Thrust Needle Roller Bearing
- Shanghai ; Ningbo for thrust bearing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | SUMA of thrust bearing | Bore Size | 4, 160 | |
| Outside Diameter | 14, 200 | Model Number | AXK | |
| Precision Rating | P6 | Seals Type | open | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description

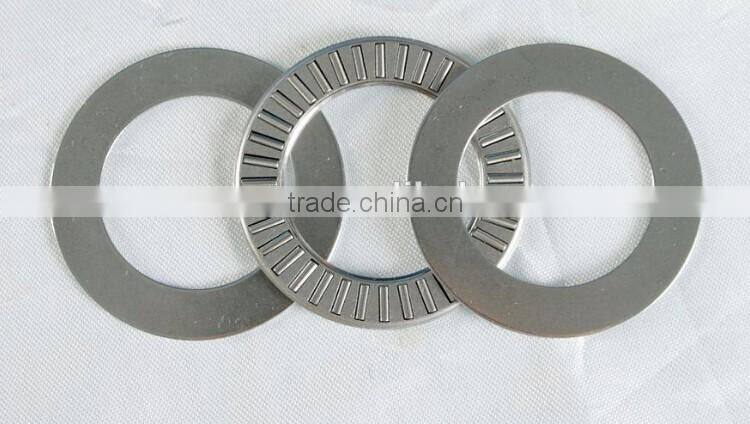

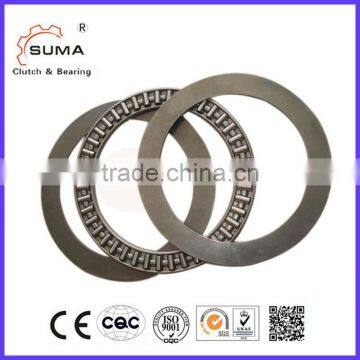

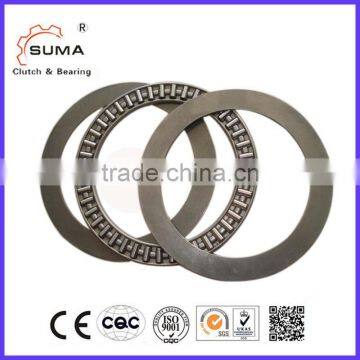

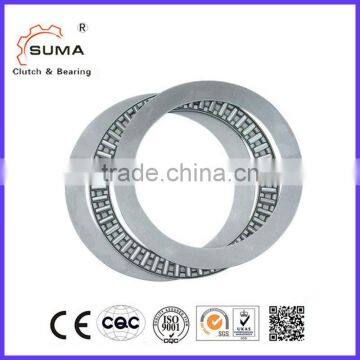

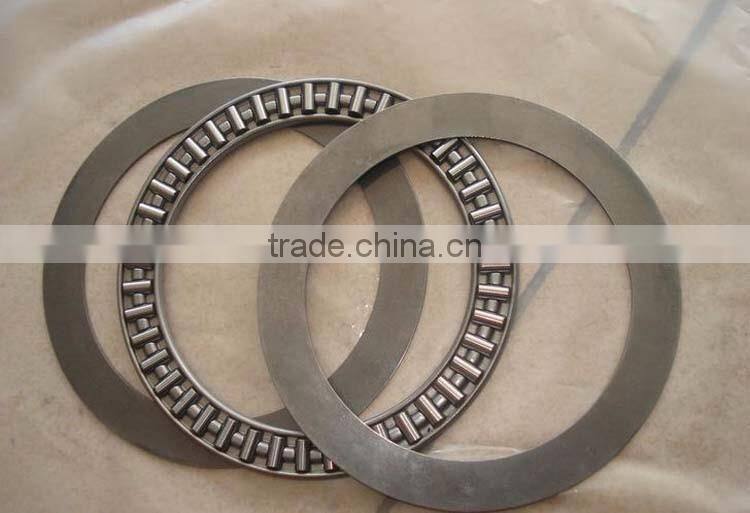

AXK Series Thrust Needle Roller Bearing
Features of axk roller thrust bearing
1) Needle bearing type: AXK,NTA,TC,AS,LS,GS,51100,K81101,TRA,TRB,TRC,TRD
2) with oil hole
3) Material: Chrome/Stainless steel
4) Shield/closure: Open
5)Precision : ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
6) Vibration and Noise level : V2, V1, Z1, Z2
7) Internal clearance: C0, C2, C3
8) Packing: industrial packing or individual box packing, carton, pallet .
Catalogue of AXK roller thrust bearing for your choice
| shaft | bearing | dimension(mm) | Basic Load Rating(N) | limited speed(rpm) | width | |||||
| dia. | type | (g) | ||||||||
| (mm) | original | Inner | Outer | Width | dynamic | static | grease | oil | ||
| type | Dc1 | Dc | Dw. | |||||||
| 4 | AXK 0414 TN | 4 | 14 | 2 | 4100 | 7900 | 14000 | 5500 | 0.7 | |
| 5 | AXK 0515 TN | 5 | 15 | 2 | 4000 | 8500 | 13000 | 4800 | 0.8 | |
| 6 | AXK 0619 TN | 6 | 19 | 2 | 6000 | 12000 | 12000 | 4200 | 1 | |
| 8 | AXK 0821 TN | 8 | 21 | 2 | 7100 | 13500 | 11000 | 4000 | 2 | |
| 10 | AXK 1024 | 10 | 24 | 2 | 7800 | 24000 | 9500 | 3600 | 3 | |
| 12 | AXK 1226 | 12 | 26 | 2 | 8200 | 26700 | 7200 | 3200 | 3 | |
| 15 | AXK 1528 | 15 | 28 | 2 | 9500 | 33000 | 6500 | 3000 | 4 | |
| 17 | AXK 1730 | 17 | 30 | 2 | 10200 | 36500 | 5500 | 2800 | 4 | |
| 20 | AXK 2035 | 20 | 35 | 2 | 11000 | 43000 | 5000 | 2600 | 5 | |
| 25 | AXK 2542 | 25 | 42 | 2 | 12500 | 538000 | 4500 | 2300 | 7 | |
| 30 | AXK 3047 | 30 | 47 | 2 | 14000 | 656000 | 4100 | 2100 | 8 | |
| 35 | AXK 3552 | 35 | 52 | 2 | 15500 | 770000 | 3700 | 2000 | 10 | |
| 40 | AXK 4060 | 40 | 60 | 3 | 25000 | 1100000 | 3200 | 1900 | 16 | |
| 45 | AXK 4565 | 45 | 65 | 3 | 25800 | 1250000 | 3000 | 1700 | 18 | |
| 50 | AXK 5070 | 50 | 70 | 3 | 27600 | 1370000 | 2800 | 1600 | 20 | |
| 55 | AXK 5578 | 55 | 78 | 3 | 35000 | 1950000 | 2600 | 1500 | 28 | |
| 60 | AXK 6085 | 60 | 85 | 3 | 38600 | 2400000 | 2500 | 1100 | 33 | |
| 65 | AXK 6590 | 65 | 90 | 3 | 41000 | 2580000 | 2400 | 1000 | 35 | |
| 70 | AXK 7095 | 70 | 95 | 4 | 50000 | 2670000 | 2100 | 950 | 60 | |
| 75 | AXK 75100 | 75 | 100 | 4 | 51000 | 2750000 | 1900 | 900 | 61 | |
| 80 | AXK 80105 | 80 | 105 | 4 | 52400 | 2850000 | 1800 | 870 | 63 | |
| 85 | AXK 85110 | 85 | 110 | 4 | 54000 | 3000000 | 1700 | 850 | 67 | |
| 90 | AXK 90120 | 90 | 120 | 4 | 66000 | 4100000 | 1580 | 800 | 86 | |
| 100 | AXK 100135 | 100 | 135 | 4 | 76000 | 5570000 | 1400 | 770 | 104 | |
| 110 | AXK 110145 | 110 | 145 | 4 | 82000 | 6000000 | 1300 | 740 | 122 | |
| 120 | AXK 120155 | 120 | 155 | 4 | 84800 | 6620000 | 1200 | 700 | 131 | |
| 130 | AXK 130170 | 130 | 170 | 5 | 110000 | 9300000 | 1100 | 660 | 205 | |
| 140 | AXK 140180 | 140 | 180 | 5 | 115000 | 9100000 | 1000 | 620 | 219 | |
| 150 | AXK 150190 | 150 | 190 | 5 | 118000 | 9600000 | 950 | 580 | 232 | |
| 160 | AXK 160200 | 160 | 200 | 5 | 125000 | 10000000 | 900 | 500 | 246 | |
| AX 715 | 7 | 15 | 2.3 | 3100 | 3250 | 6400 | 18400 | 0.0016 | ||
| AX 816 | 8 | 16 | 2.3 | 3100 | 7900 | 6300 | 18000 | 0.0017 | ||
| AX 1022 | 10 | 22 | 2.8 | 6200 | 15300 | 4700 | 13700 | 0.0044 | ||
| AX 1022 | 10 | 22 | 4 | 6200 | 15300 | 4700 | 13700 | 0.0068 | ||
| AX 1528 | 15 | 28 | 4 | 8100 | 26900 | 3600 | 10500 | 0.0098 | ||
| AX 2542 | 25 | 42 | 5 | 13100 | 58000 | 2300 | 6600 | 0.0257 | ||
| AX 2744 | 27 | 44 | 2.8 | 13700 | 61900 | 2200 | 6200 | 0.0127 | ||
| AX 4060 | 40 | 60 | 2.8 | 20000 | 110000 | 1500 | 4400 | 0.0239 | ||
| AX 4565 | 45 | 65 | 2.8 | 21000 | 123000 | 1400 | 4000 | 0.0247 | ||
| AXW 10 | 10 | 27 | 3/3.2 | 9200 | 25500 | 6000 | 14000 | 8.3 | ||
| AXW 12 | 12 | 29 | 3/3.2 | 9900 | 29000 | 5500 | 13000 | 9.1 | ||
| AXW 15 | 15 | 31 | 3.5/3.2 | 11300 | 36000 | 5200 | 11000 | 10.1 | ||
| AXW 17 | 17 | 33 | 3.5/3.2 | 11900 | 39500 | 4500 | 10000 | 11 | ||
| AXW 20 | 20 | 38 | 3.5/3.2 | 13100 | 46500 | 4000 | 8500 | 14 | ||
| AXW 25 | 25 | 45 | 4/3.2 | 14700 | 58000 | 3000 | 7000 | 19.5 | ||
| AXW 30 | 30 | 50 | 4/3.2 | 16300 | 7000 | 2000 | 6000 | 22 | ||
| AXW 35 | 35 | 55 | 4/3.2 | 17800 | 81000 | 1700 | 5500 | 26.6 | ||
| AXW 40 | 40 | 63 | 4/4.2 | 28000 | 114000 | 1500 | 4700 | 39.2 | ||
| AXW 45 | 45 | 68 | 4/4.2 | 30000 | 128000 | 1200 | 4300 | 43.4 | ||
| AXW 50 | 50 | 73 | 4.5/4.2 | 32000 | 143000 | 1000 | 3900 | 49.2 | ||

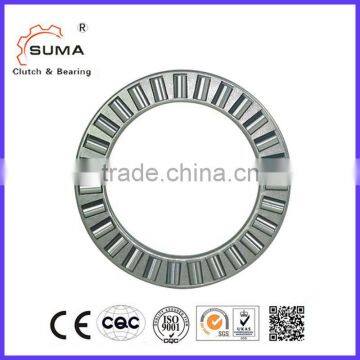

Needle roller thrust bearings are fitted with a form-stable cage to reliably guide and retain a large number of needle rollers. The diameter deviations of the rollers within one assembly are within 2 µm, enabling these bearings to accommodate heavy axial loads and shock loads. These bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings will take up no more space than a conventional thrust washer.
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.

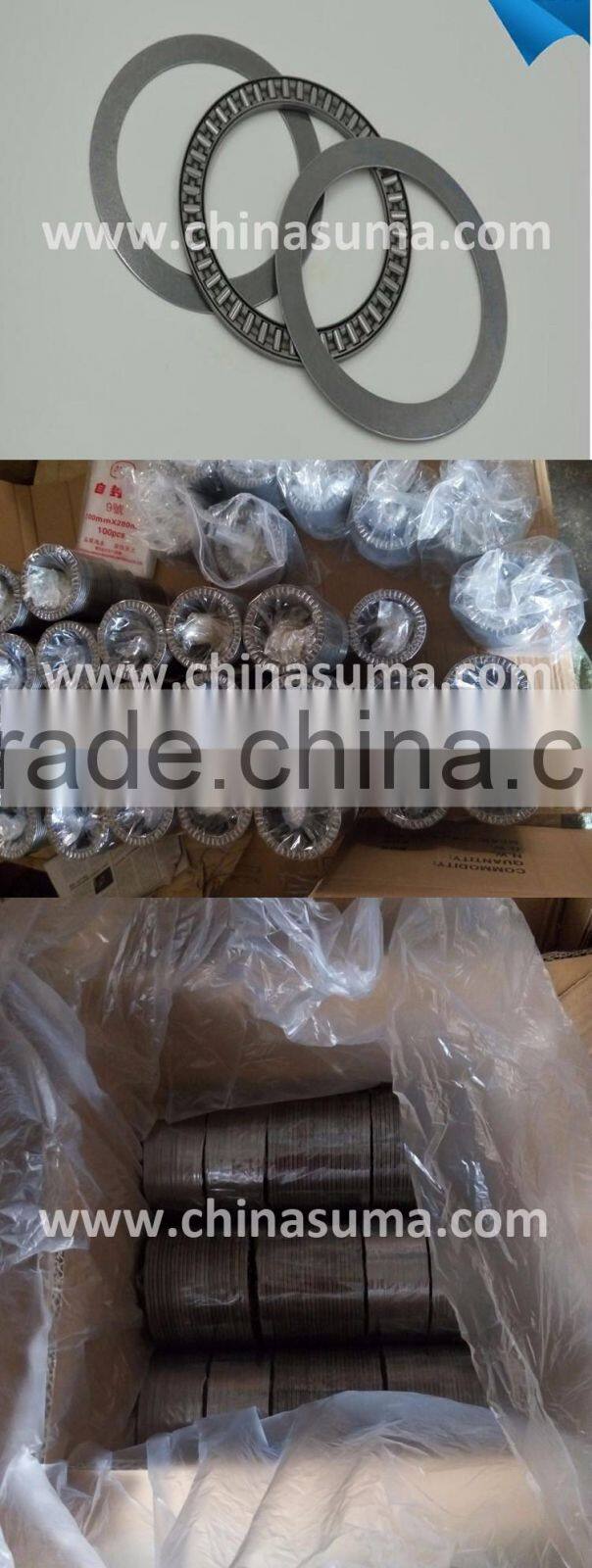

Q: How do you pack the AXK roller thrust bearing ?
A: Usually axk roller thrust bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of axk roller thrust bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver axk roller thrust bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
