EWC Series One Way Needle Bearing (Shaft Dia.:4mm)
- Shanghai ; Ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Brand Name | SUMA or OEM | Bore Size | 4, | |
| Outside Diameter | 8.4, | Model Number | EWC; 1WC | |
| Precision Rating | P0 | Seals Type | non-sealed | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description

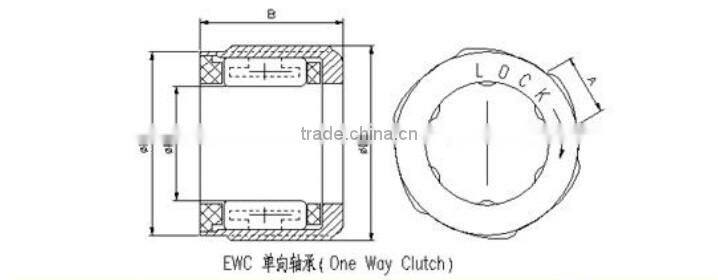

PRODUCT NAME: EWC One way clutch (outer lane has raised angles )
ID: The roller pin coupling, the addendum circle has the edges and corners, is advantageous for the localization locking, uses on the fishing equipment, the automatic money counting machine.
MODEL: EWC
MATERIAL:Outer material: ST14 stainless steelNeedle rollerStainless steel or GCr15. Keep the shelf: Strengthen nylon.
PACKING:Customize according to the needs of customer
DETAILS: EWCThis kind of clutch, the outer lane has raised angles, it is easy to make a reservation to lock, used in the fishing tackle (able to bear the sea water and corrode ), some paper money planes.
| shaft dia. | torque capacity | ||||||
| d | Fw | D1 | D2 | B | A | ||
| mm | mm | N.m (.) | Kg.cm(.) | ||||
| 4 | 4 | 8 | 8.4 | 6 | 2.6 | 0.08 | 0.82 |
| 4 | 8 | 8.4 | 6 | 2.6 | 0.15 | 1.53 | |
| 6 | 6 | 10 | 10.4 | 8 | 2.8 | 0.25 | 2.55 |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 12 | 2.8 | 0.88 | 8.98 | |
| 8 | 8 | 12 | 12.4 | 9 | 2.6 | 0.49 | 5 |
| 8 | 12 | 12.4 | 9 | 2.6 | 0.88 | 8.98 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.18 | 12.04 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 14.5 | 3.6 | 2.65 | 27.04 | |
| 10 | 10 | 16 | 17 | 10 | 5 | 1.18 | 12.04 |
| 10 | 16 | 17 | 10 | 5 | 1.96 | 20 | |
| 10 | 16 | 17 | 12 | 5 | 1.37 | 13.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 12 | 12 | 18 | 19 | 16 | 5.1 | 6.28 | 64.08 |
